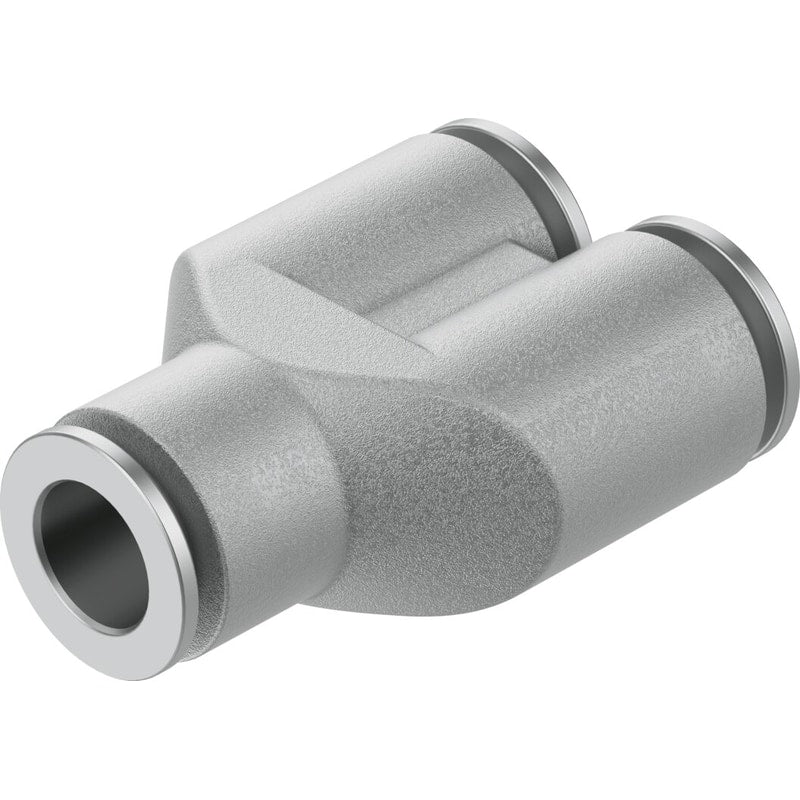

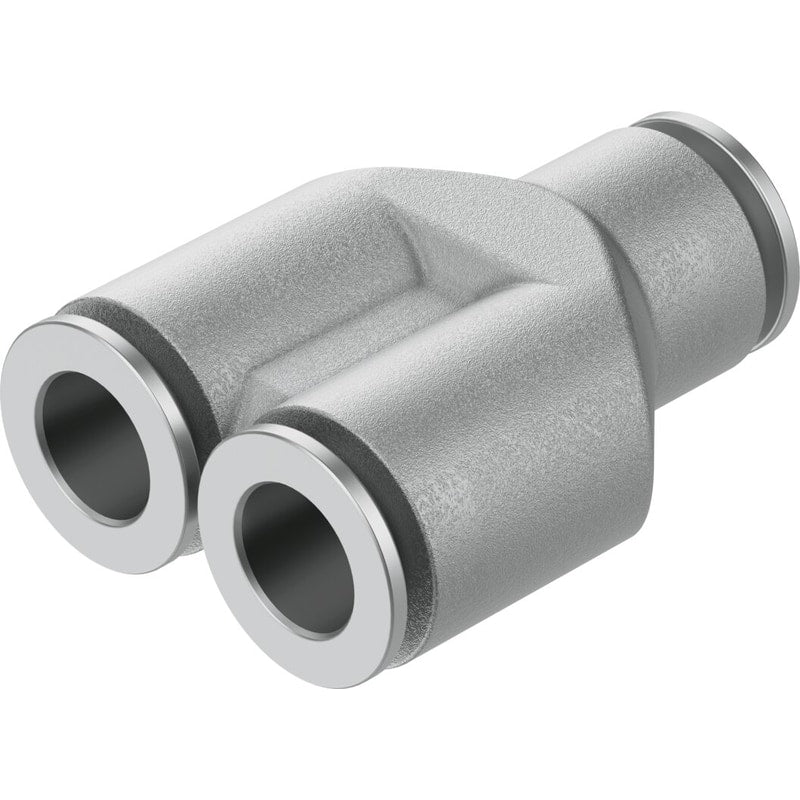

Push-in Y-connector
NPQM-Y-Q12-E-P10
558802
GTIN 4052568055363
Vendor Festo
- Pneumatic connection 1
- for pneumatic tubing outside diameter 12 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 12 mm
- Operating pressure for entire temperature range
- -0.95 bar - 16 bar
- Ambient temperature
- -20 °C - 70 °C
- Nominal width
- 11.5 mm
Regular price
$15.14
Unit price
NPQM-Y-Q12-E-P10 Push-in Y-connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQM-Y-Q12-E-P10
Regular price
$15.14
Unit price
NPQM-Y-Q12-E-P10 Push-in Y-connector is backordered and will ship as soon as it is back in stock.
push-in Y-connector NPQM-Y-Q12-E-P10 Size=Standard, Nominal size=11,5 mm, Design structure=Push/pull principle, Operating pressure complete temperature range=-0,95 - 16 bar, Operating medium=(* Compressed air in accordance with ISO8573-1:2010 [7:-:-], * Water as per manufacturer's declaration at www.festo.com)
| Fitting Type | Union Y |
|---|---|
| Size | Standard |
| Nominal size | 11.5 mm |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-20 ... 70 °C |
| connection 1 | 12mm outside diameter, for tubing |
| connection 2 | 12mm outside diameter, for tubing |
| Materials note | Conforms to RoHS |
| Material housing | Nickel-plated brass |
| Material of tubing seal | NBR |
