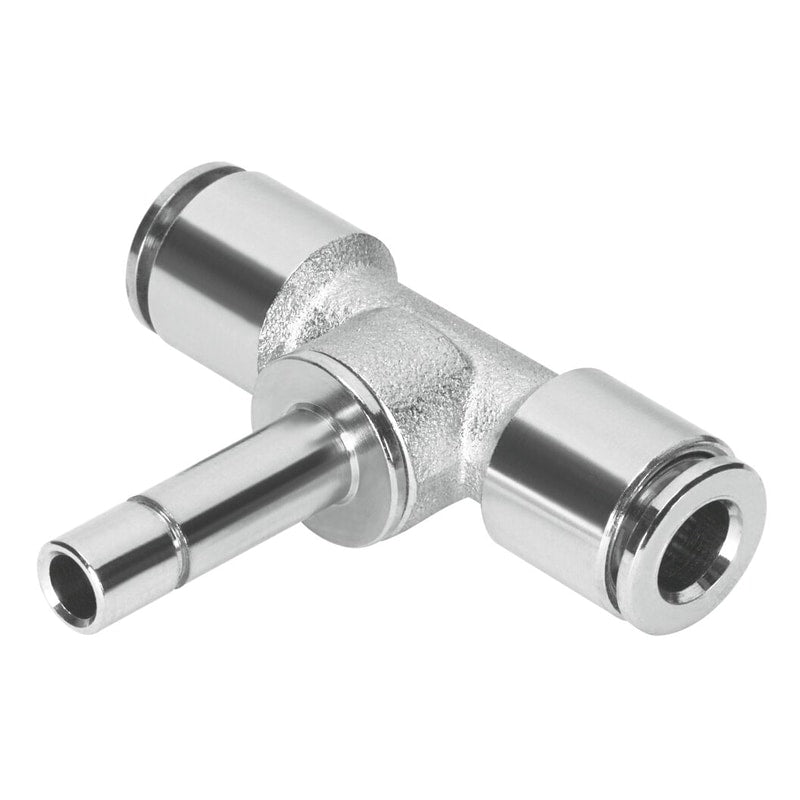

Push-in T-connector
NPQM-T-Q4-S4-P10
558791
GTIN 4052568055288
Vendor Festo
- Pneumatic connection 1
- Push-in sleeve Ø 4 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Operating pressure for entire temperature range
- -0.95 bar - 16 bar
- Ambient temperature
- -20 °C - 70 °C
- Nominal width
- 3 mm
Regular price
$7.33
Unit price
NPQM-T-Q4-S4-P10 Push-in T-connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQM-T-Q4-S4-P10
Regular price
$7.33
Unit price
NPQM-T-Q4-S4-P10 Push-in T-connector is backordered and will ship as soon as it is back in stock.
| Size | Standard |
|---|---|
| Nominal width | 3mm |
| Design | T-shape |
| Pack size | 10 |
| Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -0.95bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C |
| Product weight | 18.5g |
| Pneumatic connection 1 | Push-in sleeve Ø 4 mm |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Note on materials | RoHS-compliant |
| Housing material | Brass, nickel-plated |
| Material of tubing seal | NBR |
