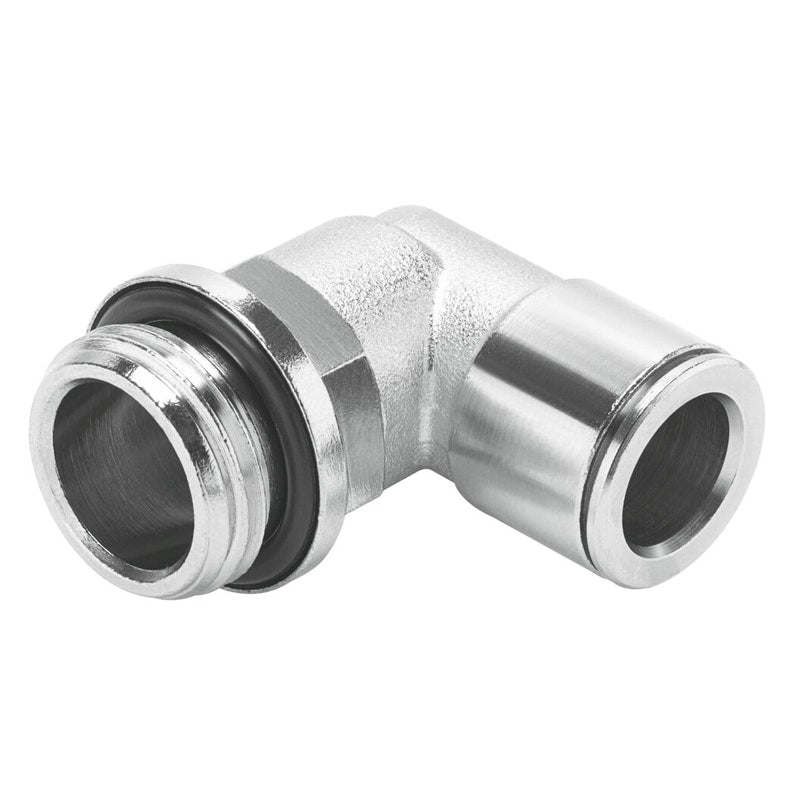

Push-in L-fitting
NPQM-L-G18-Q6-P10
558709
GTIN 4052568054786
Vendor Festo
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Operating pressure for entire temperature range
- -0.95 bar - 16 bar
- Ambient temperature
- -20 °C - 70 °C
- Nominal width
- 5 mm
Regular price
$5.69
Unit price
NPQM-L-G18-Q6-P10 Push-in L-fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQM-L-G18-Q6-P10
Regular price
$5.69
Unit price
NPQM-L-G18-Q6-P10 Push-in L-fitting is backordered and will ship as soon as it is back in stock.
push-in L-fitting NPQM-L-G18-Q6-P10 Size=Standard, Nominal size=5 mm, Type of seal on screw-in stud=Sealing ring, Design structure=Push/pull principle, Operating pressure complete temperature range=-0,95 - 16 bar
| Fitting Type | Male Elbow |
|---|---|
| Size | Standard |
| Nominal size | 5 mm |
| Type of seal on screw-in stud | Sealing ring |
| Design structure | Push/pull principle |
| Operating pressure complete temperature range | '-0.95 ... 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-20 ... 70 °C |
| Nominal tightening torque | 6 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 18.5 g |
| connection 1 | G1/8 |
| connection 2 | For tubing outside diameter 6 mm |
| Materials note | Conforms to RoHS |
| Material housing | Nickel-plated brass |
| Material of tubing seal | NBR |
