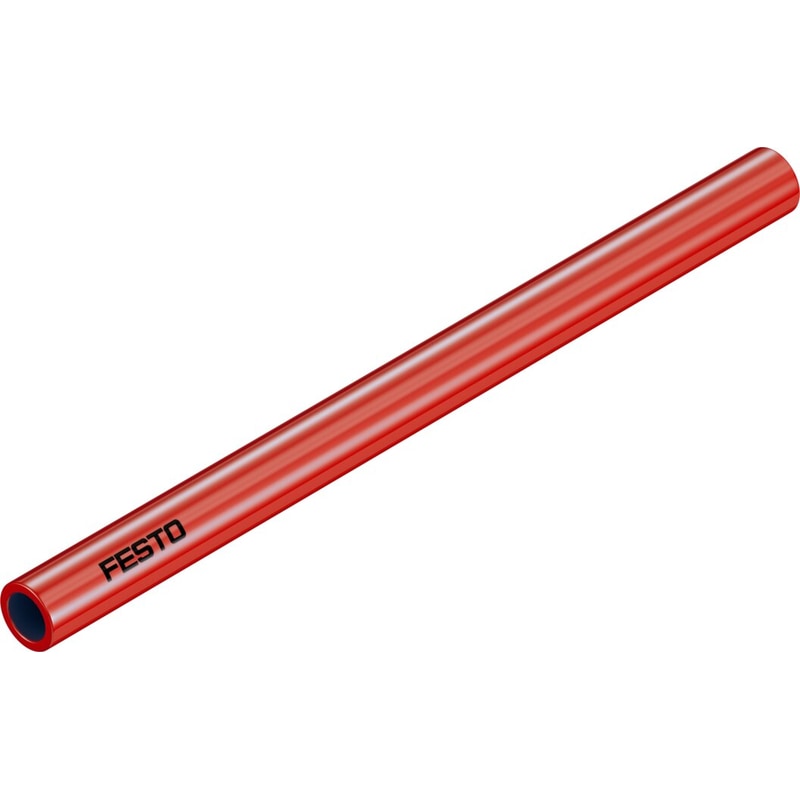

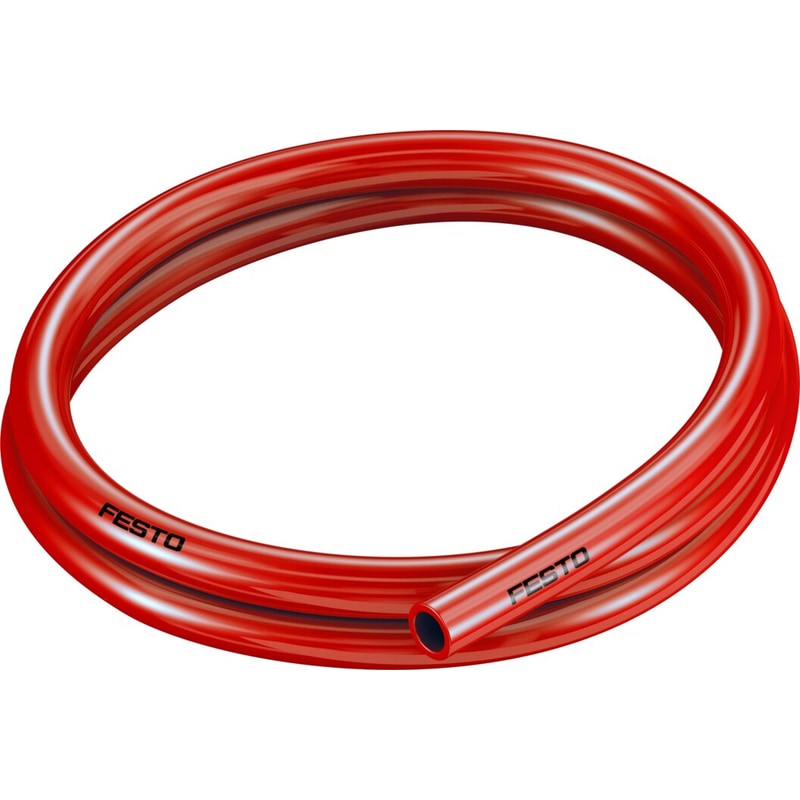

Plastic tubing
PUN-H-16X2,5-RT
558290
GTIN 4052568054373
Vendor Festo
- Outside diameter
- 16 mm
- Inside diameter
- 11 mm
- Temperature-dependent operating pressure
- -0.95 bar - 10 bar
- Ambient temperature
- -35 °C - 60 °C
Regular price
$8.46
Unit price
PUN-H-16X2,5-RT Plastic tubing is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PUN-H-16X2,5-RT
Regular price
$8.46
Unit price
PUN-H-16X2,5-RT Plastic tubing is backordered and will ship as soon as it is back in stock.
plastic tubing PUN-H-16X2,5-RT Approved for use in food processing (hydrolysis resistant) Outside diameter=16 mm, Bending radius relevant for flow rate=88 mm, Inside diameter=11 mm, Min. bending radius=38 mm, Temperature dependent operating pressure=-0,95 - 10 bar
| Outside diameter | 16 mm |
|---|---|
| Bending radius relevant for flow rate | 88 mm |
| Inside diameter | 11 mm |
| Min. bending radius | 38 mm |
| Tubing characteristics | Suitable for energy chains in applications with high cycle rates |
| Tubing test conditions | Suitable for energy chains: > 5 million cycles to FN 942021 |
| Temperature dependent operating pressure | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Food-safe | See Supplementary material information |
| Ambient temperature | '-35 ... 60 °C |
| Authorisation | TÜV |
| Product weight according to length | 0.123 kg/m |
| Pneumatic connection | For push-in connector outside diameter 16 mm |
