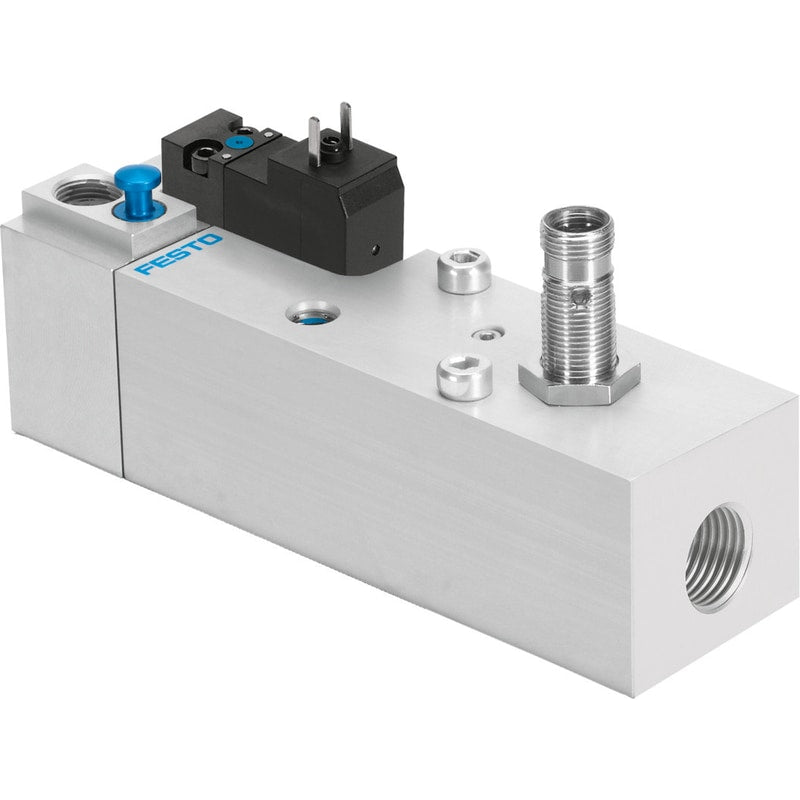

Soft-start valve
VABF-S6-1-P5A4-N12-4-1-P
558232
GTIN 4052568205119
Vendor Festo
Regular price
$653.17
Unit price
VABF-S6-1-P5A4-N12-4-1-P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-S6-1-P5A4-N12-4-1-P
Regular price
$653.17
Unit price
VABF-S6-1-P5A4-N12-4-1-P is backordered and will ship as soon as it is back in stock.
soft-start valve VABF-S6-1-P5A4-N12-4-1-P Max. positive test pulse with logic 0=2500 µs, Max. negative test pulse with logic 1=1400 µs, Vibration resistance=Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6, Shock resistance=Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27, Based on the standard=ISO 5599-2
| Max. positive test pulse with logic 0 | 2,500 µs |
|---|---|
| Max. negative test pulse with logic 1 | 1,400 µs |
| Vibration resistance | Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27 |
| Based on the standard | ISO 5599-2 |
| Type of actuation | electrical |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detentingself-resetting via electrical control signal |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
