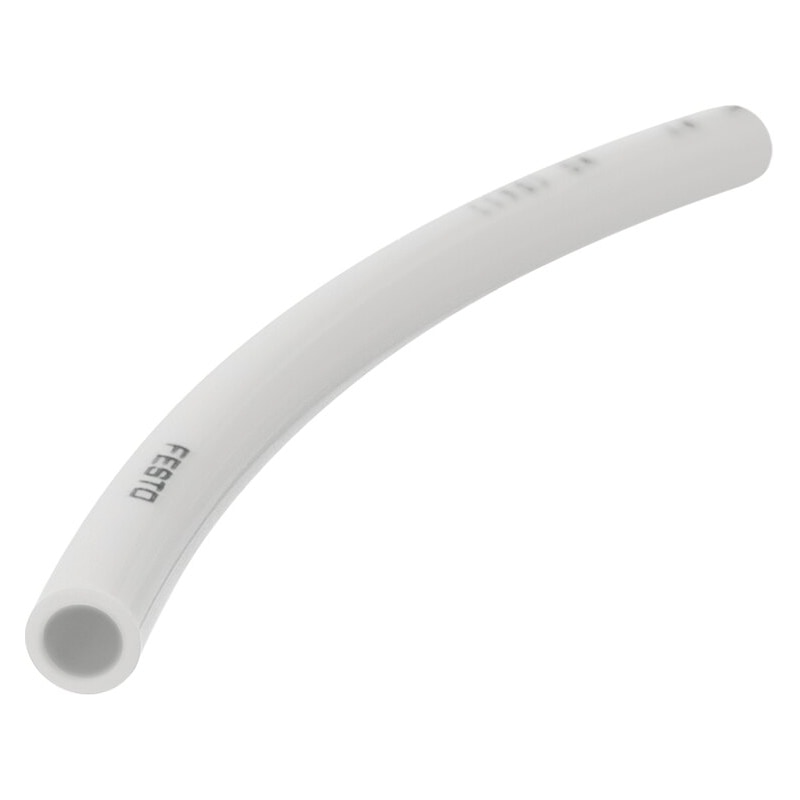

Plastic tubing
PLN-12X1,75-SI
558215
GTIN 4052568053888
Vendor Festo
- Outside diameter
- 12 mm
- Inside diameter
- 8.4 mm
- Temperature-dependent operating pressure
- -0.95 bar - 14 bar
- Ambient temperature
- -30 °C - 80 °C
Regular price
$9.97
Unit price
PLN-12X1,75-SI Plastic tubing is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PLN-12X1,75-SI
Regular price
$9.97
Unit price
PLN-12X1,75-SI Plastic tubing is backordered and will ship as soon as it is back in stock.
| Outside diameter | 12 mm |
|---|---|
| Bending radius relevant for flow rate | 65 mm |
| Inside diameter | 8.4 mm |
| Min. bending radius | 23 mm |
| Type code | PLN |
| Temperature-dependent operating pressure | -0.95 bar ... 14 bar |
| Operating medium | Water as per manufacturer's declaration at www.festo.comCompressed air as per ISO 8573-1:2010 [7:-:-] |
| For use in the food industry | See supplementary material information |
| Ambient temperature | -30 °C ... 80 °C |
| Certification | German Technical Control Board (TÃœV) |
| Product weight by length | 0.054 kg/m |
| Pneumatic connection | For plug connection outside diameter 12 mm |
| Color | Silver |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Material of pneumatic tubing | PE |
