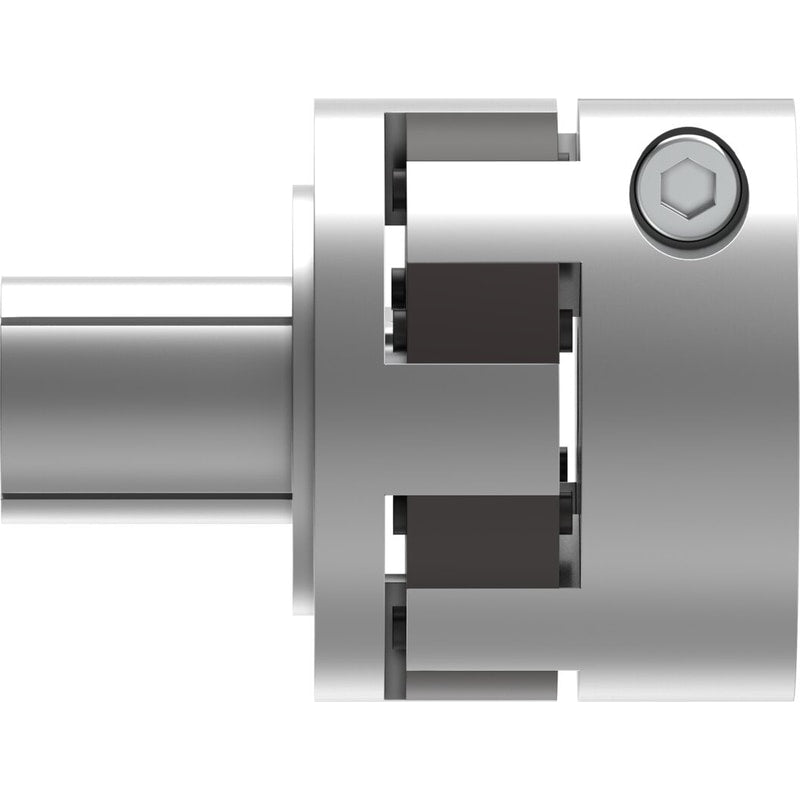

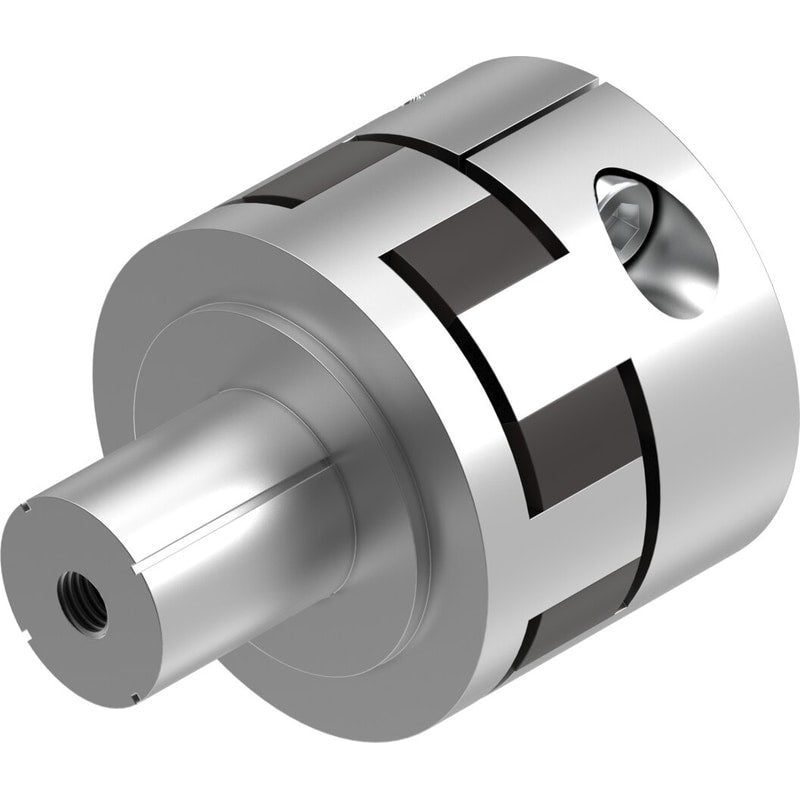

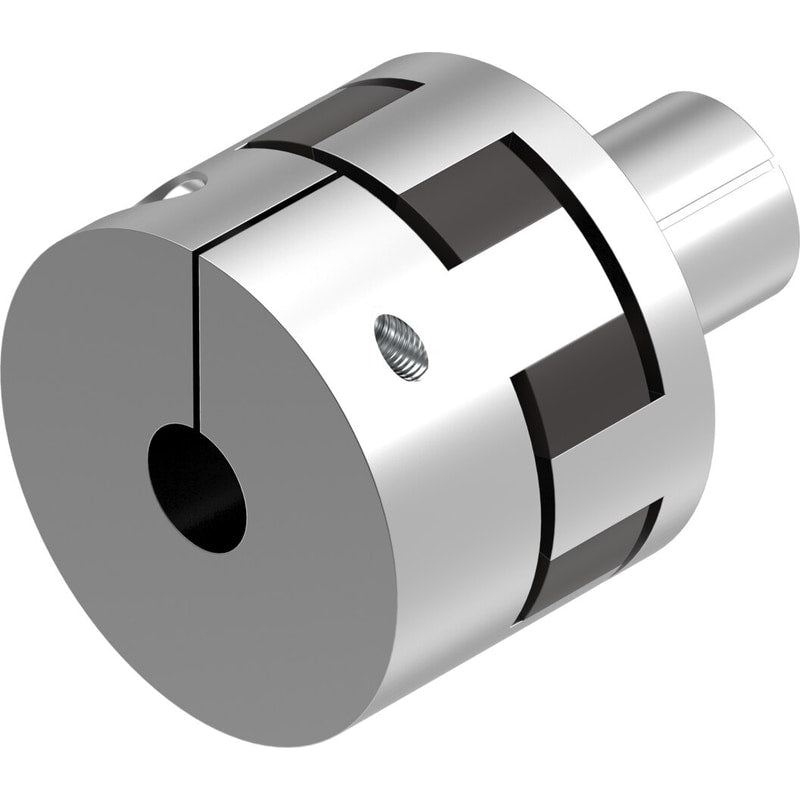

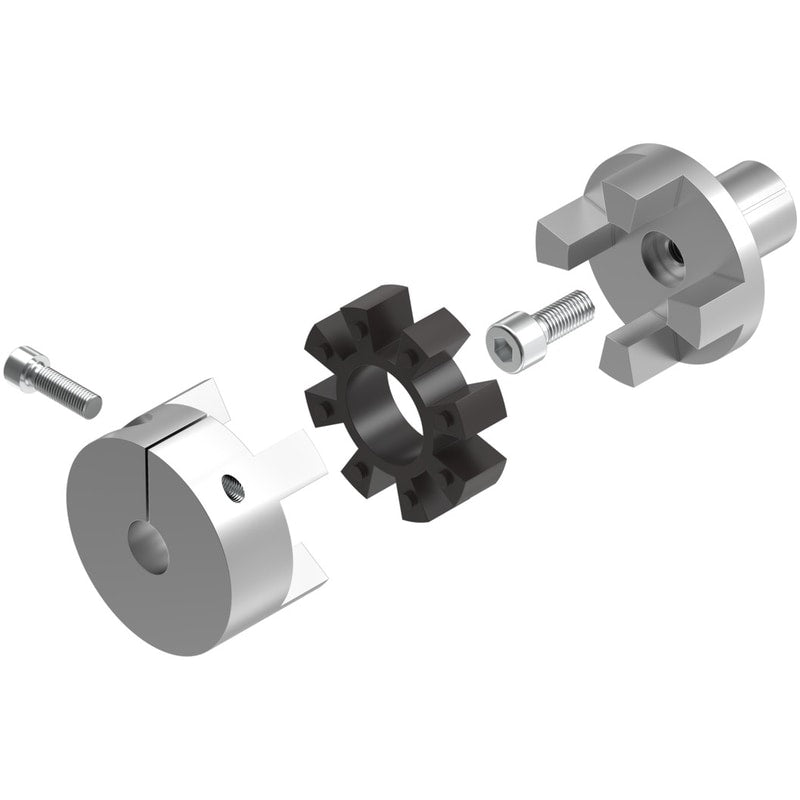

Coupling
EAMD-56-46-19-23X27
558003
GTIN 4052568204433
Vendor Festo
Regular price
$198.03
Unit price
EAMD-56-46-19-23X27 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EAMD-56-46-19-23X27
Regular price
$198.03
Unit price
EAMD-56-46-19-23X27 is backordered and will ship as soon as it is back in stock.
| Diameter of holder 1 | 19 mm |
|---|---|
| Diameter of holder 2 | 23 mm |
| Size | 56 |
| Nominal length | 46.5 mm |
| Type code | EAMD |
| Mounting position | Any |
| Max. rotational speed | 5500 1/min |
| Storage temperature | -25 °C ... 60 °C |
| Relative air humidity | 0 - 95 % |
| Ambient temperature | -25 °C ... 60 °C |
| Mass moment of inertia | 151 kgmm² |
| Transferable torque | 60 Nm |
| Product weight | 418 g |
| Note on materials | RoHS-compliant |
