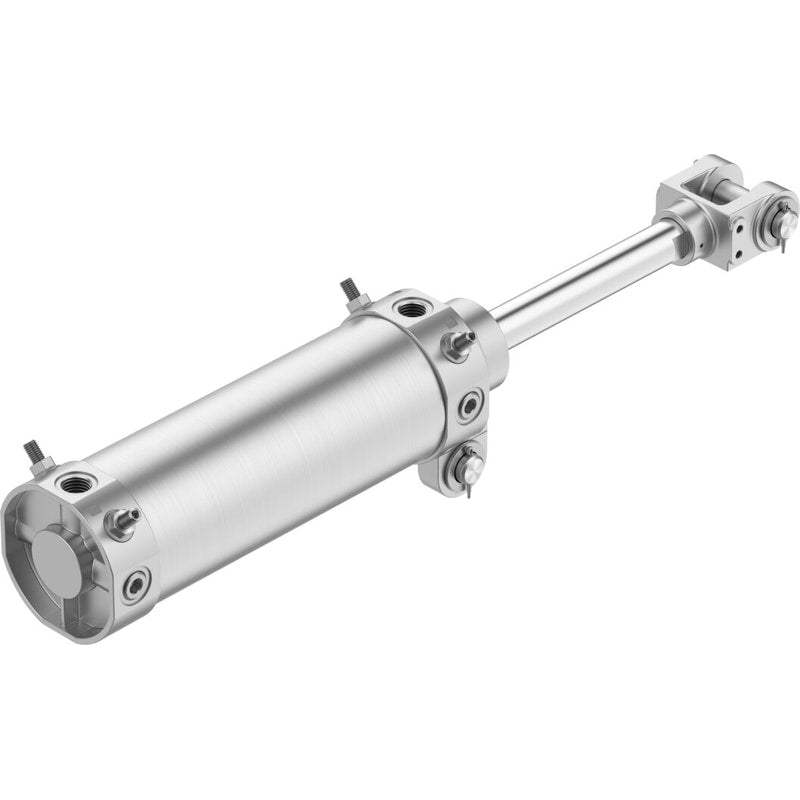

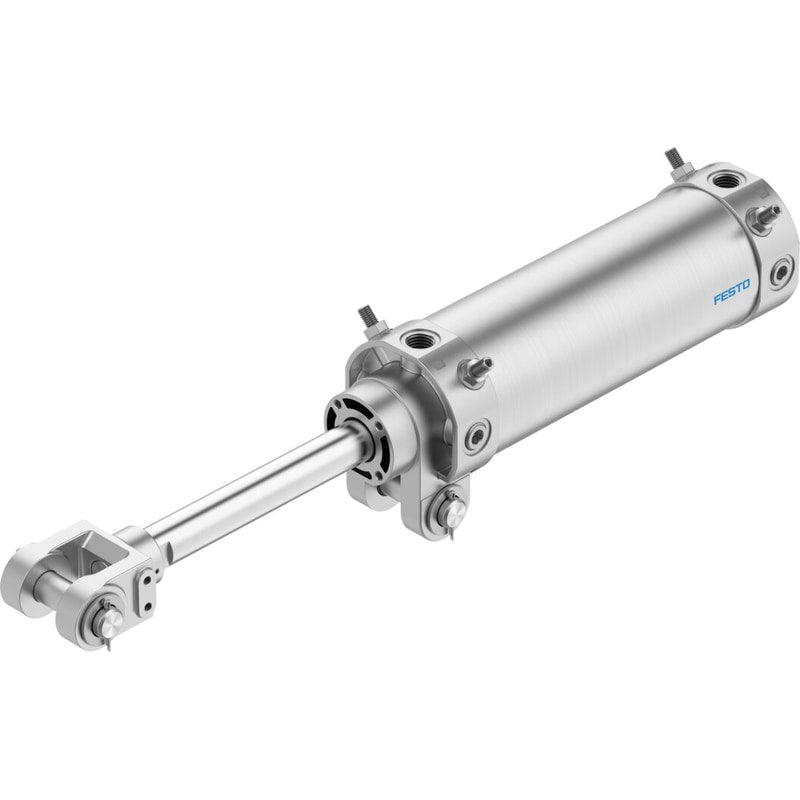

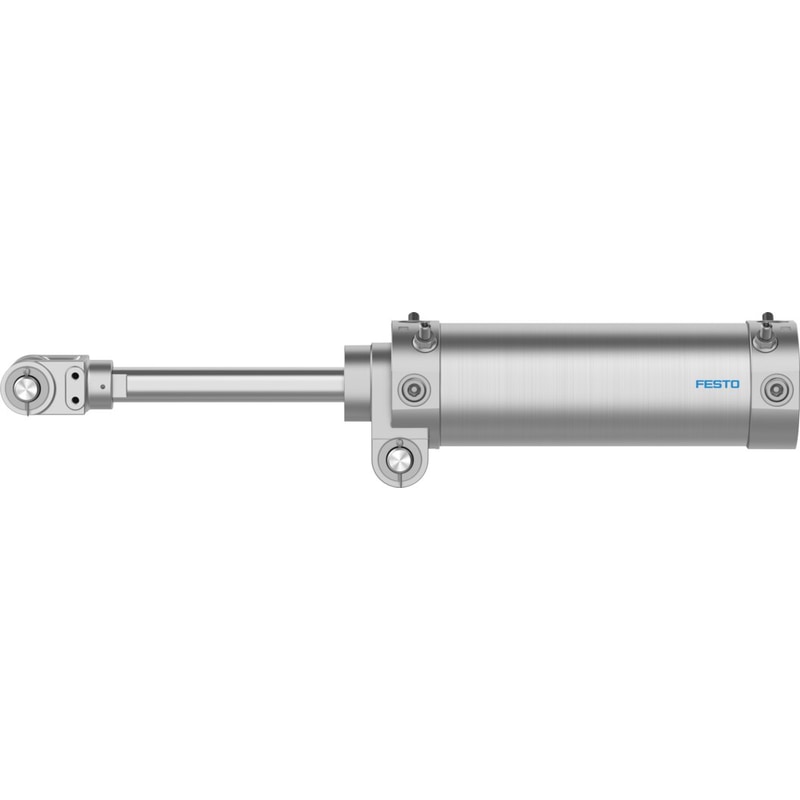

Hinge cylinder
DW-80-150-Y-AB
557918
GTIN 4052568204181
Vendor Festo
- Piston diameter
- 80 mm
- Stroke
- 150 mm
- Pneumatic connection
- Rc3/8
- Theoretical force at 6 bar, advancing
- 3016 N
- Theoretical force at 6 bar, retracting
- 2721 N
Regular price
$418.71
Unit price
DW-80-150-Y-AB is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DW-80-150-Y-AB
Regular price
$418.71
Unit price
DW-80-150-Y-AB is backordered and will ship as soon as it is back in stock.
| Stroke | 150mm |
|---|---|
| Piston diameter | 80 mm |
| Piston rod thread | M20x1.5 |
| Wide rod clevis/swivel mounting | 28mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any |
| Structural design | Piston |
| Velocity control | Integrated flow control at both ends |
| Position sensing | For proximity sensor |
| Piston rod end | External thread with rod clevis |
| Operating pressure | 1bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C |
| Impact energy in the end positions | 1.8J |
| Cushioning length | 30mm |
| Theoretical force at 6 bar, retracting | 2721N |
| Theoretical force at 6 bar, advancing | 3016N |
| Moving mass at 0 mm stroke | 1651g |
| Additional moving mass per 10 mm stroke | 39g |
| Basic weight with 0 mm stroke | 4185g |
| Additional weight per 10 mm stroke | 65g |
| Alternative connections | See product drawing |
| Type of mounting | With swivel mounting on bearing cap |
| Pneumatic connection | Rc3/8 |
| Rod clevis material | Cast steel |
| Note on materials | RoHS-compliant |
| Wiper material | Bronze |
| Cover material | Die-cast aluminum |
| Seals material | NBR |
| Piston rod material | Tempered steel |
| Material of cylinder barrel | Wrought aluminum alloy |
