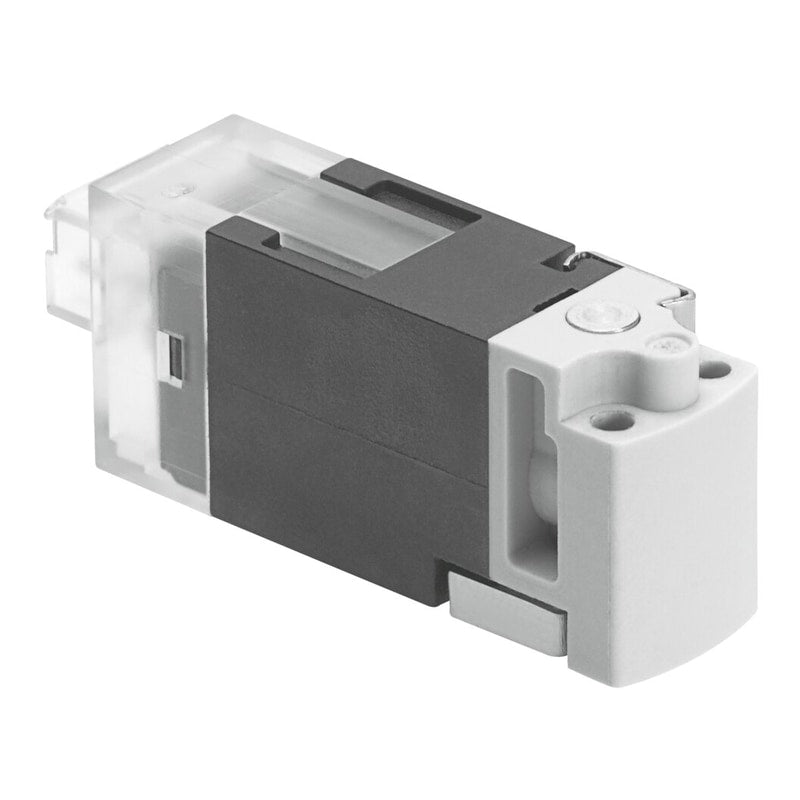

Air solenoid valve
MHA1-M1LCH-2/2G-1.5-HC
557864
GTIN 4052568096540
Vendor Festo
- Valve function
- 2/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 30 l/min
- Pneumatic connection 1
- Sub-base
- Operating pressure
- 0 bar - 1.5 bar
Regular price
$70.70
Unit price
MHA1-M1LCH-2/2G-1.5-HC is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MHA1-M1LCH-2/2G-1.5-HC
Regular price
$70.70
Unit price
MHA1-M1LCH-2/2G-1.5-HC is backordered and will ship as soon as it is back in stock.
solenoid valve MHA1-M1LCH-2/2G-1.5-HC Valve function=2/2 closed, monostable, Type of actuation=electrical, Width=10 mm, Standard nominal flow rate=30 l/min, Operating pressure=0 - 1,5 bar
| Valve function | 2/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 10 mm |
| Standard nominal flow rate | 30 l/min |
| Operating pressure | 0 ... 1.5 bar |
| Design structure | Poppet valve with spring return |
| Type of reset | mechanical spring |
| Protection class | IP40 |
| Max connector cable length | 30 m |
| Nominal size | 1.5 mm |
| Grid dimension | 10 mm |
| Exhaust-air function | not throttleable |
| Sealing principle | soft |
