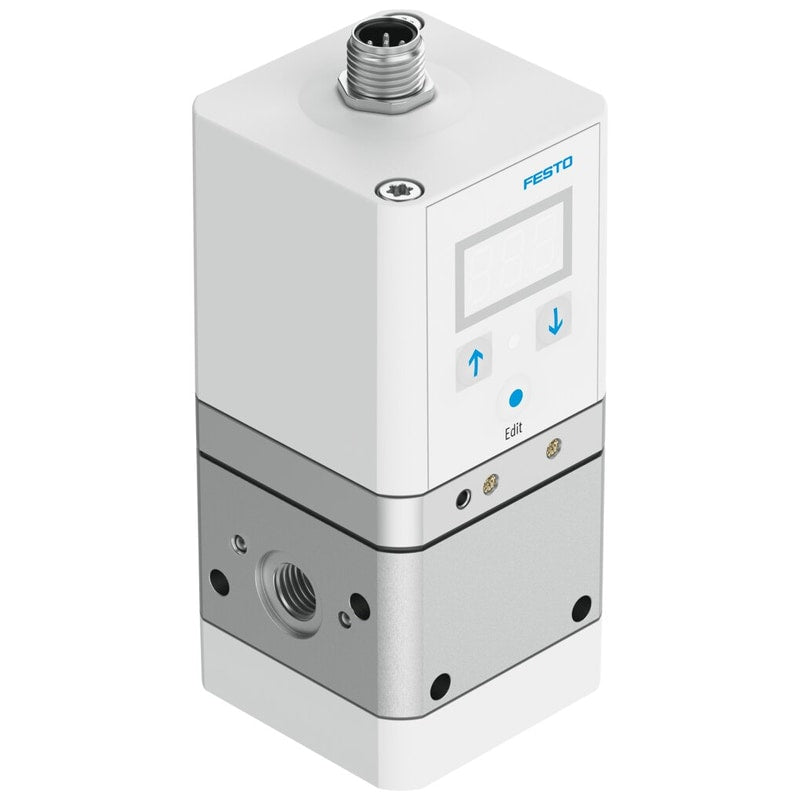

Proportional pressure control valve
VPPE-3-1-1/8-6-420-E1
557775
GTIN 4052568203986
Vendor Festo
- Valve function
- 3-way proportional pressure control valve
- Pneumatic connection 1
- G1/8
- Pressure regulation range
- 0.06 bar - 6 bar
- Inlet pressure 1
- 6 bar - 8 bar
- Normal nominal flow rate (normalized to DIN 1343)
- 800 l/min
Regular price
$791.03
Unit price
VPPE-3-1-1/8-6-420-E1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPPE-3-1-1/8-6-420-E1
Regular price
$791.03
Unit price
VPPE-3-1-1/8-6-420-E1 is backordered and will ship as soon as it is back in stock.
proportional pressure regulator VPPE-3-1-1/8-6-420-E1 Nominal diameter, pressurisation=5 mm, Nominal diameter, exhaust=2,5 mm, Type of actuation=electrical, Sealing principle=soft, Assembly position=(* Any, * Preferably upright)
| Nominal diameter, pressurisation | 5 mm |
|---|---|
| Nominal diameter, exhaust | 2.5 mm |
| Type of actuation | electrical |
| Sealing principle | soft |
| Assembly position | AnyPreferably upright |
| Design structure | Pilot actuated diaphragm regulator |
| Short circuit strength | for all electrical connections |
| Safety instructions | VPPE safety position: If the power supply cable is interrupted, output pressure is maintained unregulated. |
| Polarity protected | for all electrical connections |
| Type of reset | mechanical spring |
| Type of piloting | Piloted |
| Valve function | 3-way proportional-pressure regulator |
| Type of display | LED display3-digit |
