VABM-C8-12E-G14-6-M1
557655
Vendor Festo
Regular price
$330.87
Unit price
VABM-C8-12E-G14-6-M1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABM-C8-12E-G14-6-M1
Regular price
$330.87
Unit price
VABM-C8-12E-G14-6-M1 is backordered and will ship as soon as it is back in stock.

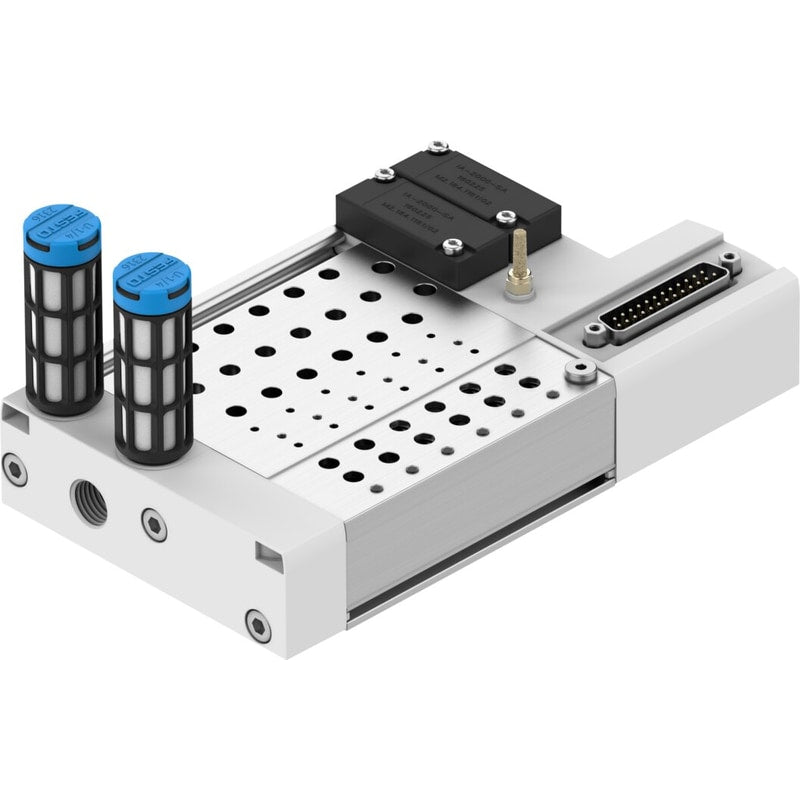

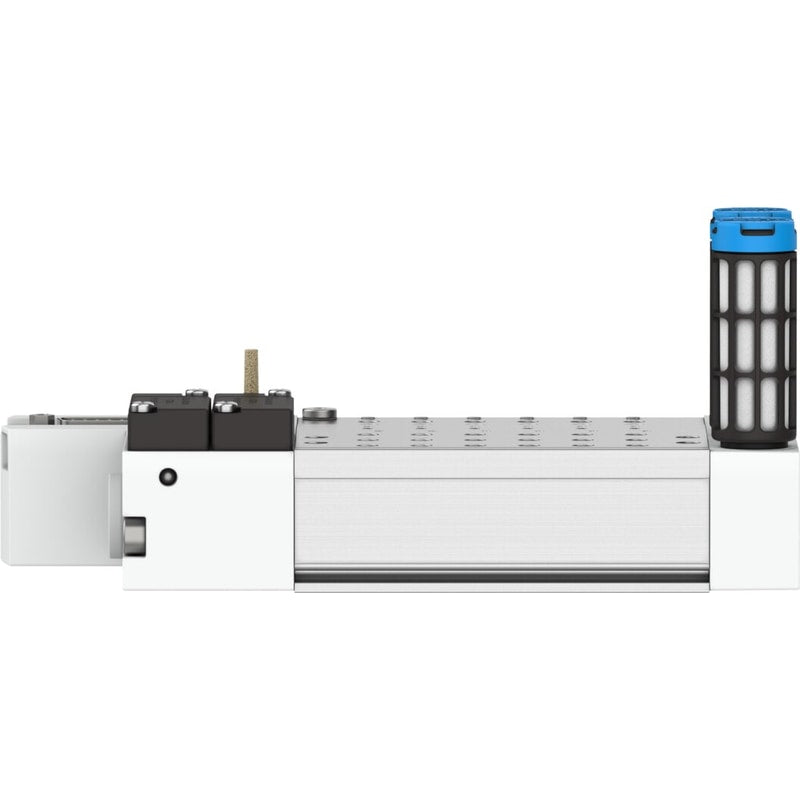

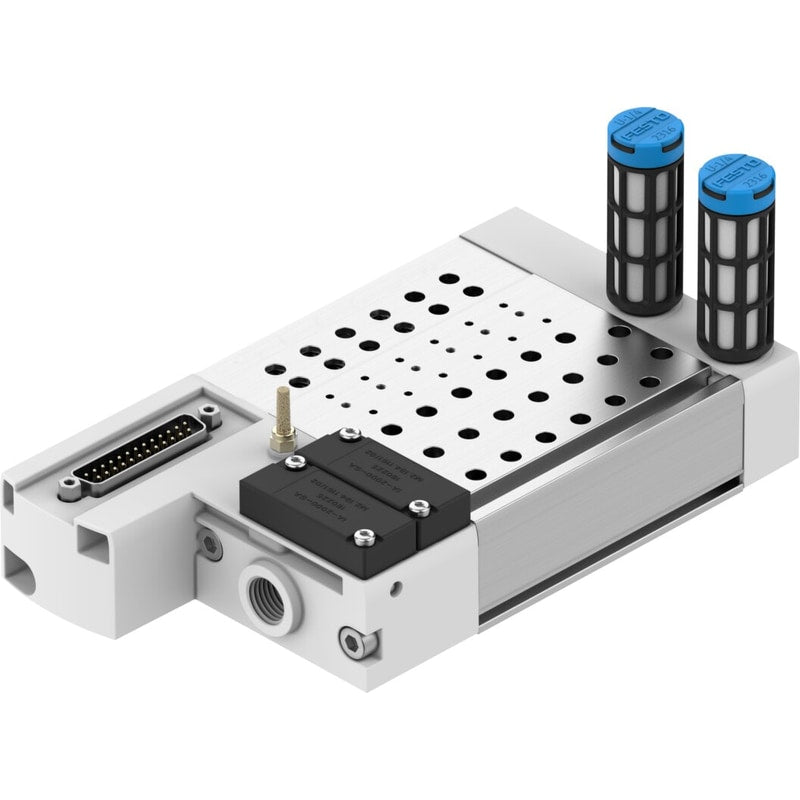

manifold rail VABM-C8-12E-G14-6-M1 Grid dimension=12 mm, Max. number of valve positions=6, Corrosion resistance classification CRC=0 - No corrosion stress, Max. tightening torque, valve mounting=0,6 Nm, Max. tightening torque, wall mounting=5 Nm
| Grid dimension | 12 mm |
|---|---|
| Max. number of valve positions | 6 |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Max. tightening torque, valve mounting | 0.6 Nm |
| Max. tightening torque, wall mounting | 5 Nm |
| Product weight | 585 g |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 3 | G1/4 |
| Pneumatic connection, port 5 | G1/4 |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Material manifold | Wrought Aluminium alloy |
