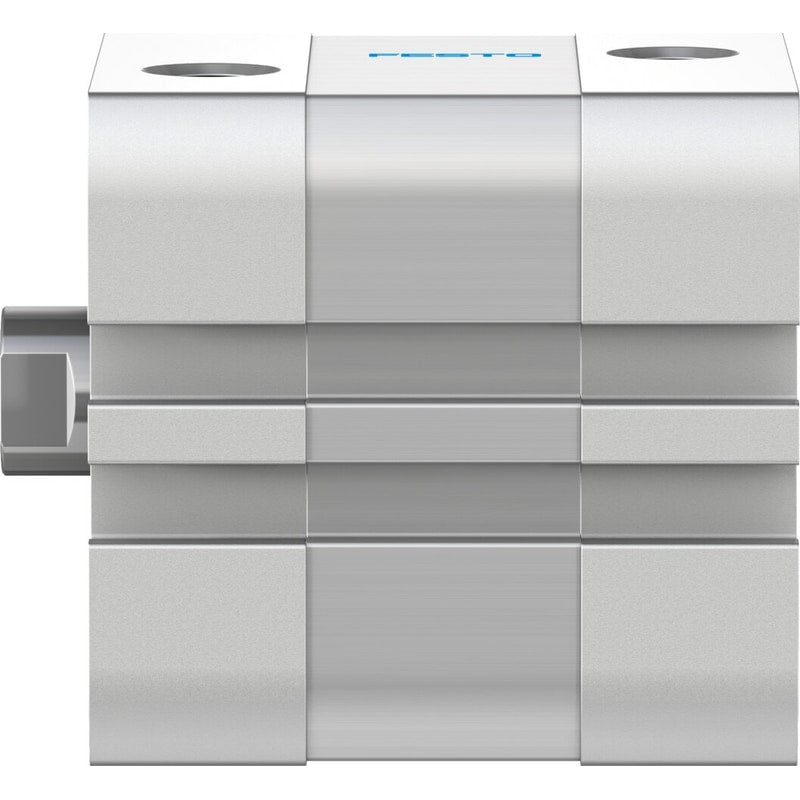

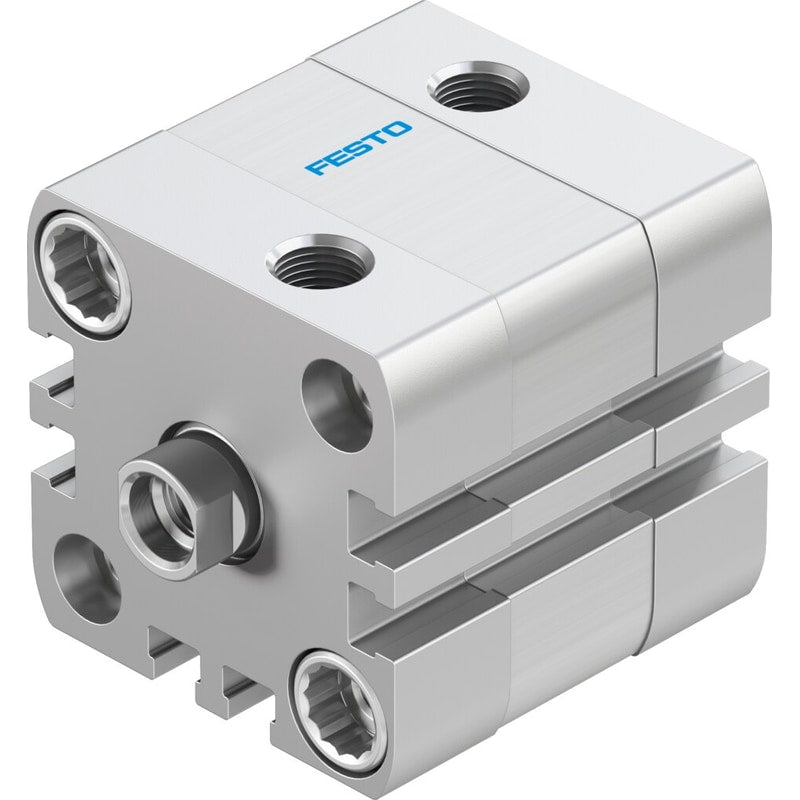

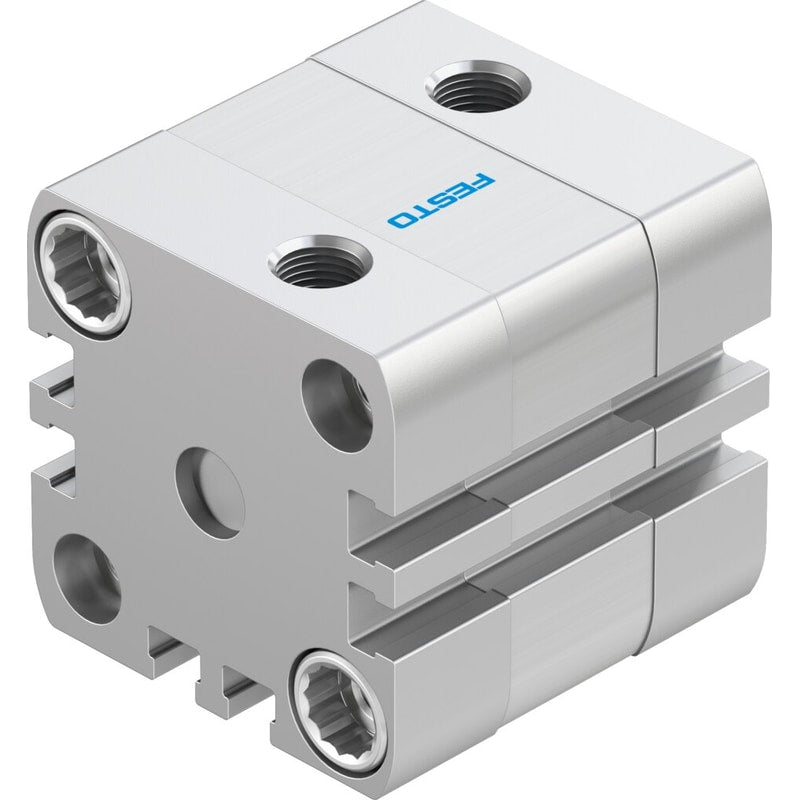

Compact cylinder
ADN-1 1/4"-1/4"-I-P-A
557090
GTIN 4052568360085
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 1 1/4"
- Theoretical force at 6 bar, advancing
- 483.001 N
- Stroke
- 6.35 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
Regular price
$93.14
Unit price
ADN-1 1/4"-1/4"-I-P-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ADN-1 1/4"-1/4"-I-P-A
Regular price
$93.14
Unit price
ADN-1 1/4"-1/4"-I-P-A is backordered and will ship as soon as it is back in stock.
compact cylinder ADN-11/4"-1/4"-I-P-A Per ISO 21287, with position sensing and internal piston rod thread Stroke=0,25 ", Piston diameter=1 1/4", Piston rod thread=UNF5/16-24, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 0.25 " |
|---|---|
| Piston diameter | 1 1/4" |
| Piston rod thread | UNF5/16-24 |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Conforms to standard | ISO 21287 |
| Piston-rod end | Female thread |
| Design structure | PistonPiston rodProfile barrel |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 1 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
