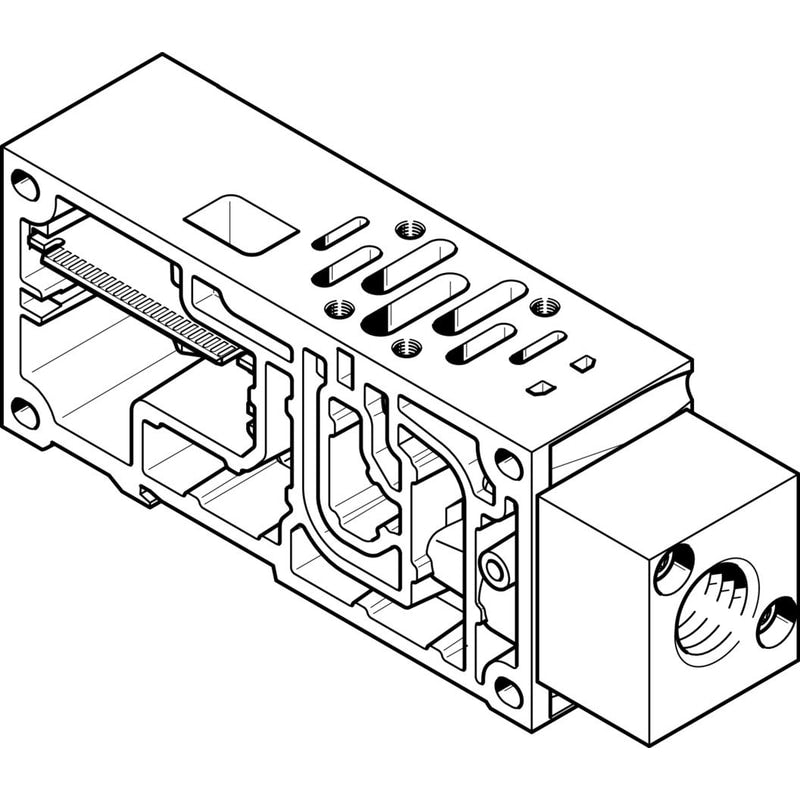

Manifold sub-base
VABV-S6-1Q-N12
556988
GTIN 4052568202583
Vendor Festo
Regular price
$163.49
Unit price
VABV-S6-1Q-N12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABV-S6-1Q-N12
Regular price
$163.49
Unit price
VABV-S6-1Q-N12 is backordered and will ship as soon as it is back in stock.
manifold sub-base VABV-S6-1Q-N12 Width=43 mm, Vibration resistance=Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6, Shock resistance=Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27, Note on forced dynamisation=Switching frequency min. 1/month, CE mark (see declaration of conformity)=to EU directive low-voltage devices
| Width | 43 mm |
|---|---|
| Vibration resistance | Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27 |
| Note on forced dynamisation | Switching frequency min. 1/month |
| CE mark (see declaration of conformity) | to EU directive low-voltage devices |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Product weight | 570 g |
| Pneumatic connection, port 1 | NPT1/2-14 |
| Materials note | Conforms to RoHS |
| Material plate | Aluminium die cast |
