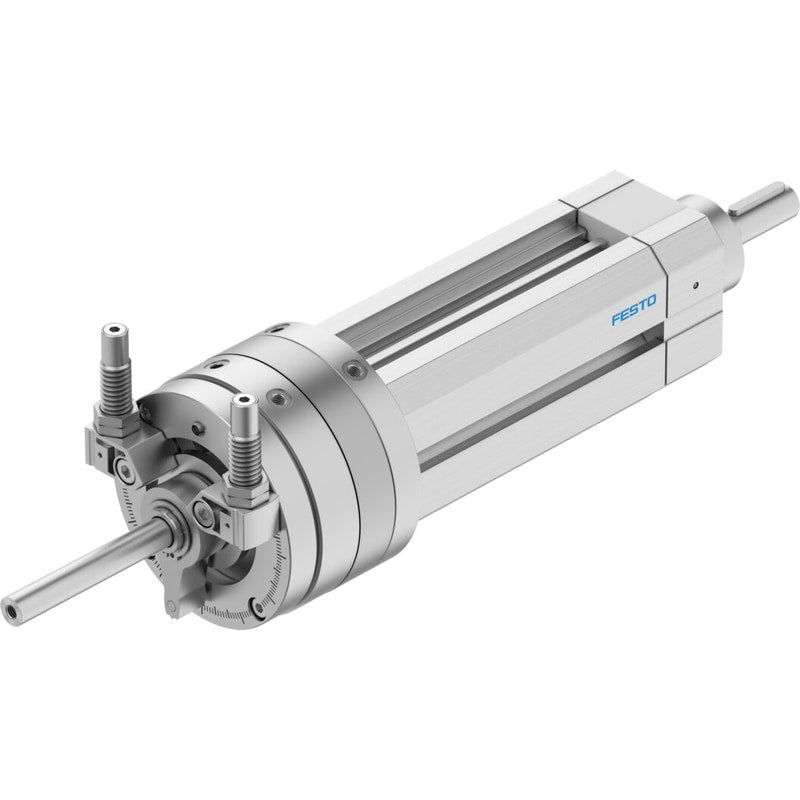

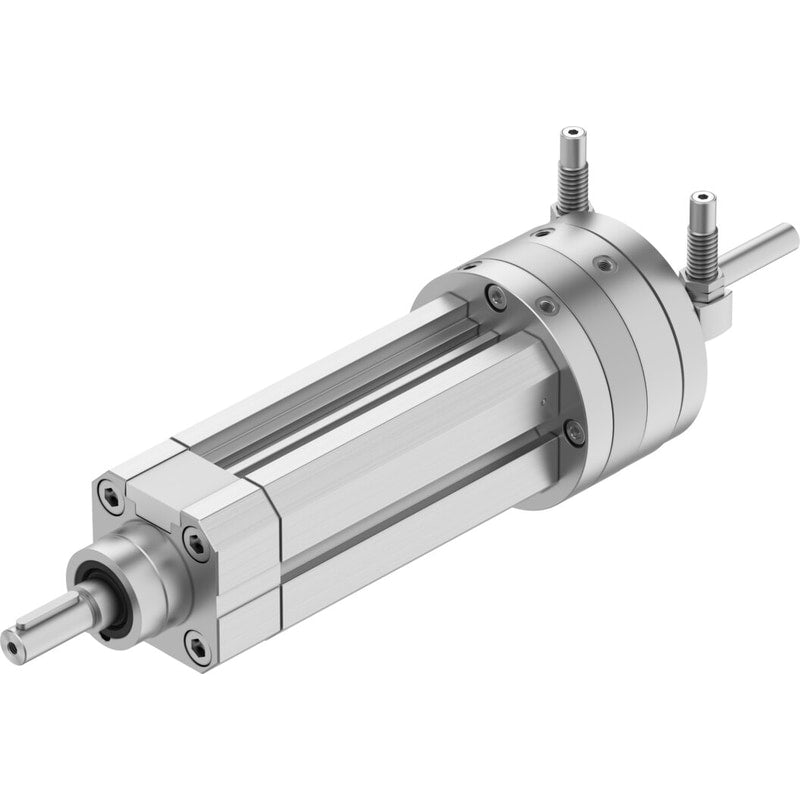

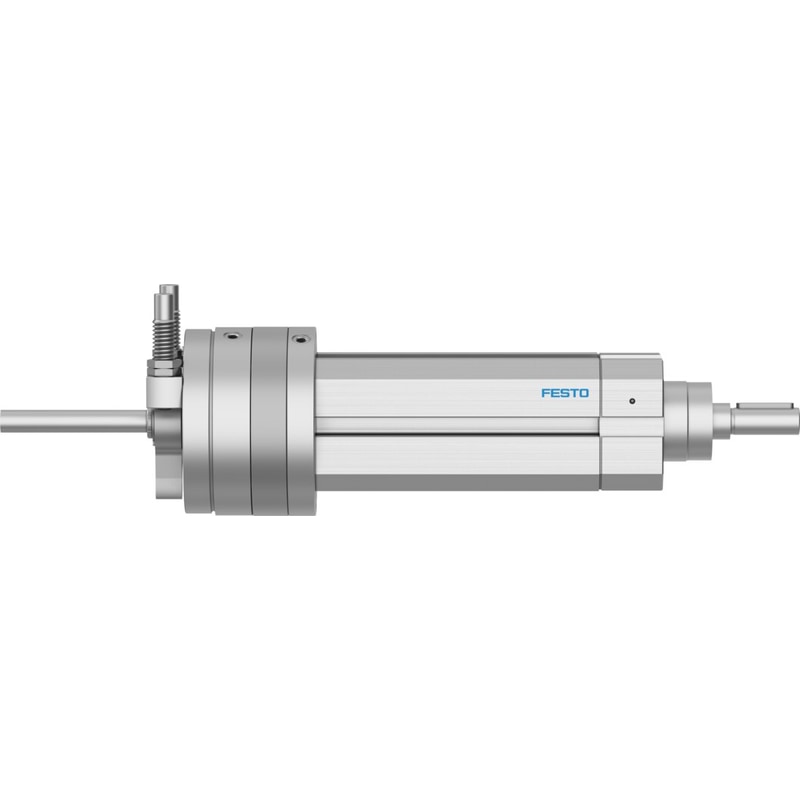

Swivel actuator unit
DSL-25-50-270-P-A-S20-KF-B
556669
GTIN 4052568201838
Vendor Festo
- Piston diameter
- 25 mm
- Theoretical torque at 6 bar
- 5 Nm
- Swivel angle
- 0 deg - 272 deg
- Permissible mass moment of inertia
- 1.1E-4 kgm²
- Position sensing
- For proximity sensor
Regular price
$3,047.28
Unit price
DSL-25-50-270-P-A-S20-KF-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSL-25-50-270-P-A-S20-KF-B
Regular price
$3,047.28
Unit price
DSL-25-50-270-P-A-S20-KF-B is backordered and will ship as soon as it is back in stock.
swivel/linear unit DSL-25-50-270-P-A-S20-KF-B For proximity sensing. Rotary and linear movement can be actuated independently of one another. Rotary movement of 0° - 270° infinitely adjustable. Rotation angle adjustment range=0 - 270 deg, Stroke=50 mm, Piston diameter=25 mm, Swivel angle=0 - 272 deg, Cushioning=P: Flexible cushioning rings/plates at both ends
| Rotation angle adjustment range | 0 ... 270 deg |
|---|---|
| Stroke | 50 mm |
| Piston diameter | 25 mm |
| Swivel angle | 0 ... 272 deg |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Fine adjustment | '-6 deg |
| Mode of operation | double-acting |
| Design structure | Rotary vane |
| Position detection | For proximity sensor |
| Variants | Through, hollow piston rod |
| Protection against torque/guide | with ball-bearing guide |
| Operating pressure | 2.5 ... 8 bar |
