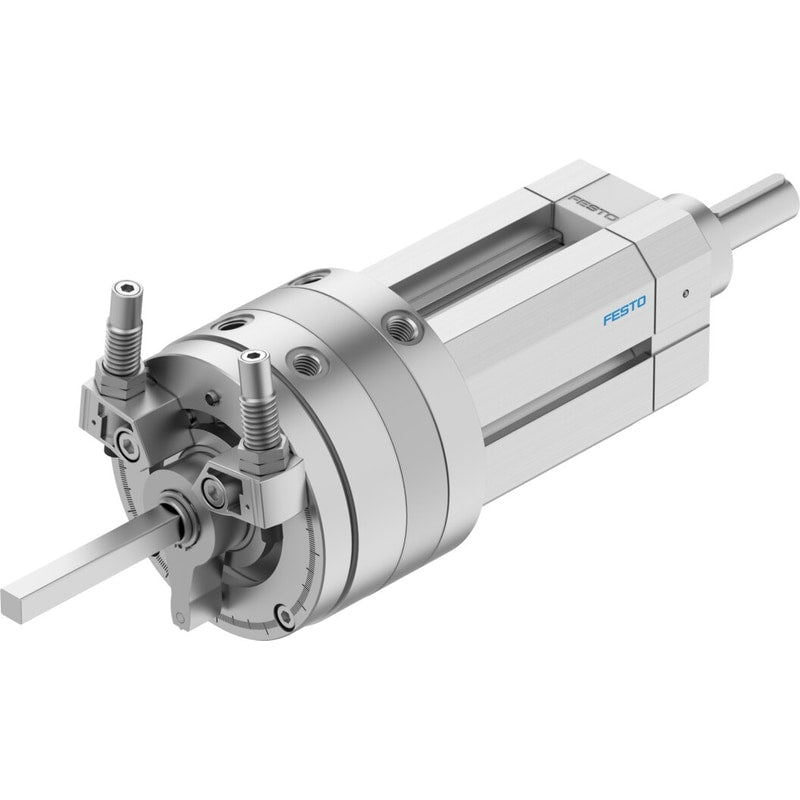

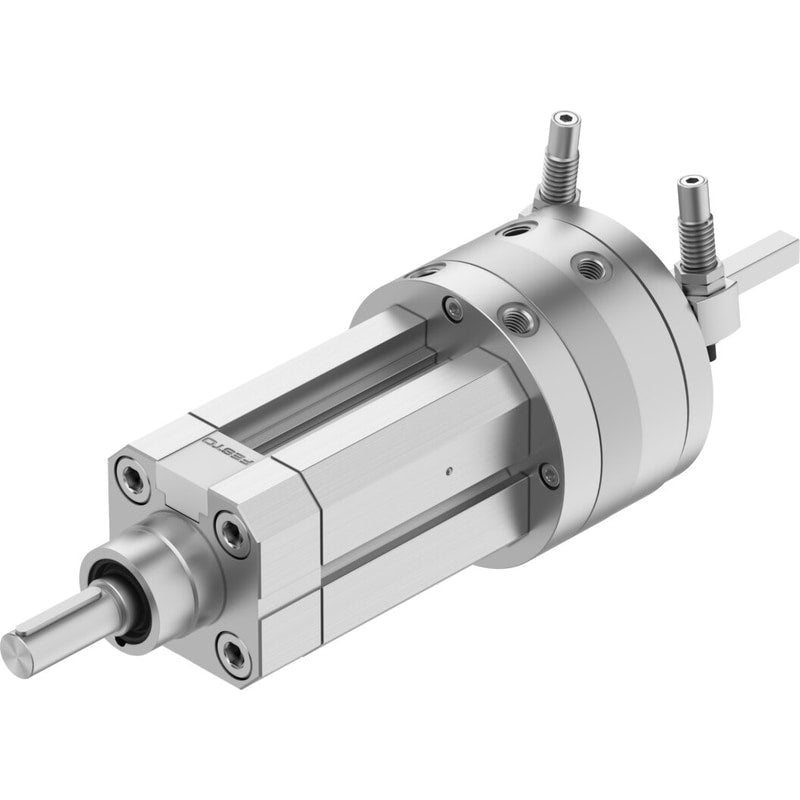

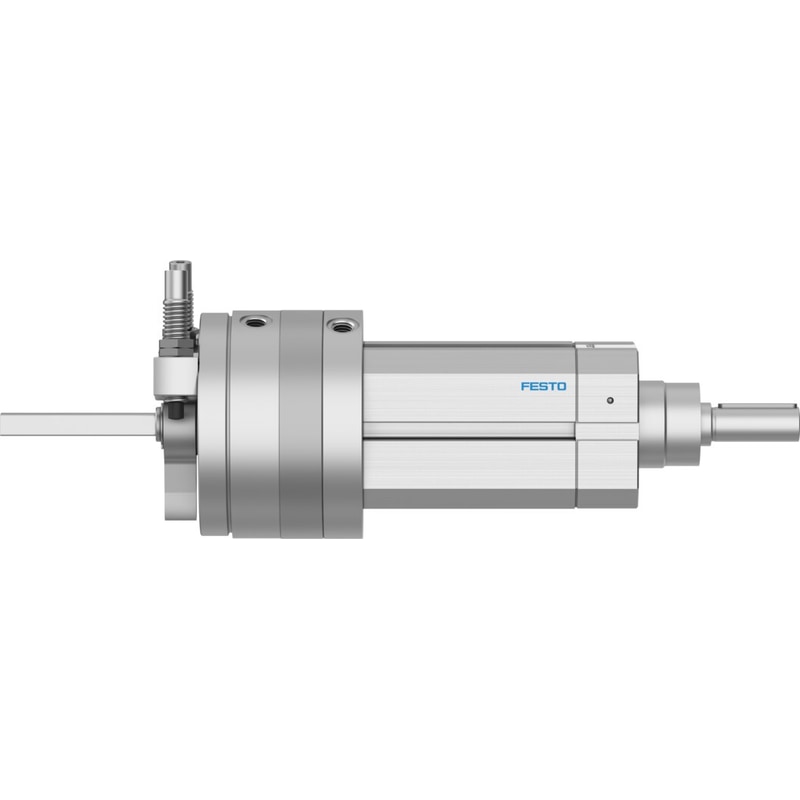

Swivel actuator unit
DSL-32-40-270-CC-A-S2-B
556505
GTIN 4052568200909
Vendor Festo
- Piston diameter
- 32 mm
- Theoretical torque at 6 bar
- 10 Nm
- Swivel angle
- 0 deg - 246 deg
- Permissible mass moment of inertia
- 0.0021 kgm²
- Position sensing
- For proximity sensor
Regular price
$2,660.72
Unit price
DSL-32-40-270-CC-A-S2-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSL-32-40-270-CC-A-S2-B
Regular price
$2,660.72
Unit price
DSL-32-40-270-CC-A-S2-B is backordered and will ship as soon as it is back in stock.
swivel/linear unit DSL-32-40-270-CC-A-S2-B For proximity sensing. Rotary and linear movement can be actuated independently of one another. Rotary movement of 0° - 270° infinitely adjustable. Cushioning angle=12 deg, Rotation angle adjustment range=0 - 246 deg, Stroke=40 mm, Piston diameter=32 mm, Swivel angle=0 - 246 deg
| Cushioning angle | 12 deg |
|---|---|
| Rotation angle adjustment range | 0 ... 246 deg |
| Stroke | 40 mm |
| Piston diameter | 32 mm |
| Swivel angle | 0 ... 246 deg |
| Cushioning | CC: Shock absorber at both endsP: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Fine adjustment | '-3 deg |
| Mode of operation | double-acting |
| Design structure | Rotary vane |
| Position detection | For proximity sensor |
| Variants | Through piston rod |
| Protection against torque/guide | with plain-bearing guide |
