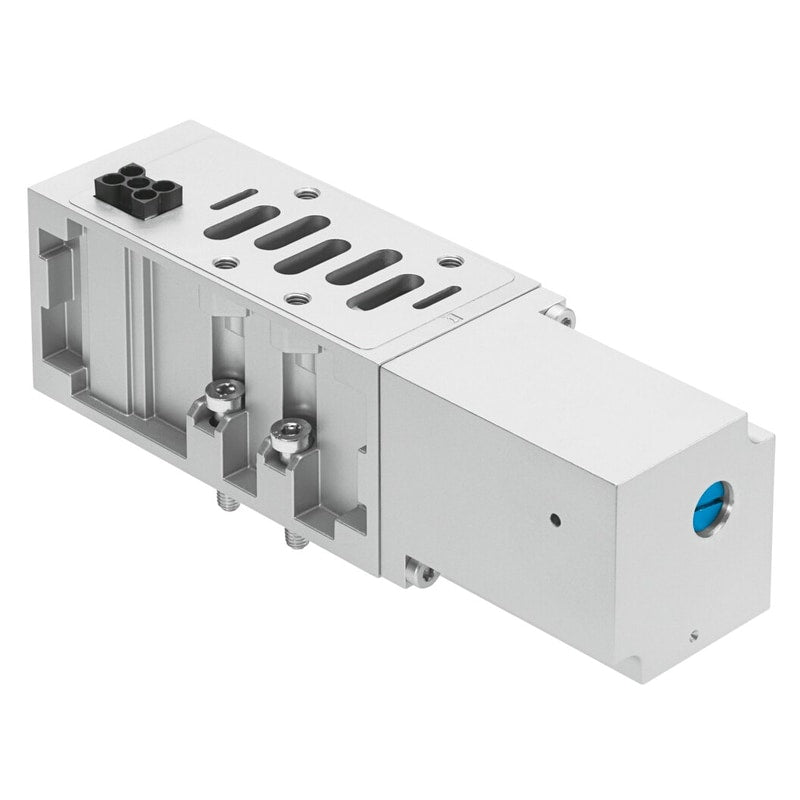

Vertical pressure shut-off plate
VABF-S2-2-L1D1-C
555791
GTIN 4052568200121
Vendor Festo
Regular price
$228.86
Unit price
VABF-S2-2-L1D1-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-S2-2-L1D1-C
Regular price
$228.86
Unit price
VABF-S2-2-L1D1-C is backordered and will ship as soon as it is back in stock.
vertical pressure shut-off plate VABF-S2-2-L1D1-C Width=54 mm, Based on the standard=ISO 5599-2, Assembly position=Any, Pneumatic vertical stacking=Shut-off for 1, Operating pressure=-0,9 - 10 bar
| Width | 54 mm |
|---|---|
| Based on the standard | ISO 5599-2 |
| Assembly position | Any |
| Pneumatic vertical stacking | Shut-off for 1 |
| Operating pressure | '-0.9 ... 10 bar |
| Inlet pressure 1 | 0.5 ... 10 bar |
| Standard nominal flow rate | 1,950 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 1,030 g |
