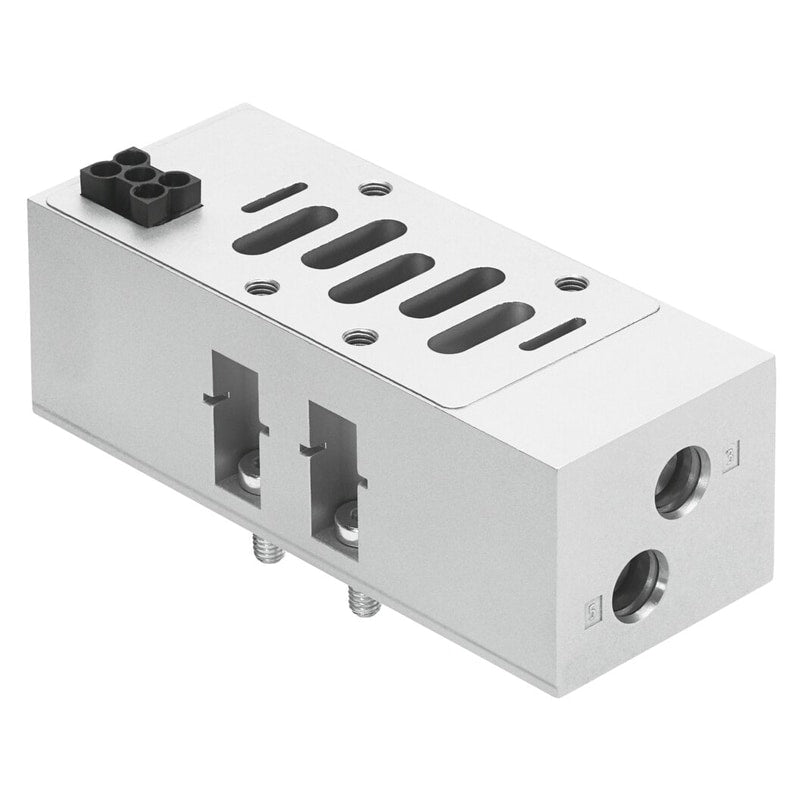

Throttle plate
VABF-S2-2-F1B1-C
555789
GTIN 4052568200107
Vendor Festo
Regular price
$157.00
Unit price
VABF-S2-2-F1B1-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-S2-2-F1B1-C
Regular price
$157.00
Unit price
VABF-S2-2-F1B1-C is backordered and will ship as soon as it is back in stock.
flow control plate VABF-S2-2-F1B1-C Width=54 mm, Based on the standard=ISO 5599-2, Assembly position=Any, Pneumatic vertical stacking=Throttle plate, exhaust air flow control, Operating pressure=-0,9 - 10 bar
| Width | 54 mm |
|---|---|
| Based on the standard | ISO 5599-2 |
| Assembly position | Any |
| Pneumatic vertical stacking | Throttle plate, exhaust air flow control |
| Operating pressure | '-0.9 ... 10 bar |
| Inlet pressure 1 | 0.5 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 565 g |
| Vertical stacking type of mounting | on manifold blockon individual sub-base |
