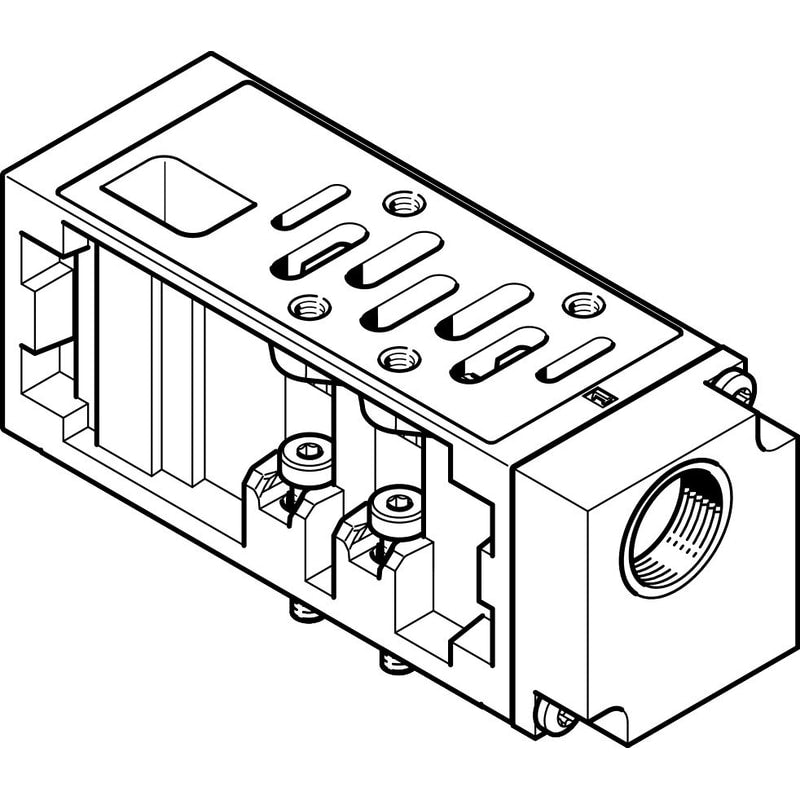

Vertical pressure supply plate
VABF-S1-2-P1A3-G12
555785
GTIN 4052568096342
Vendor Festo
Regular price
$100.44
Unit price
VABF-S1-2-P1A3-G12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-S1-2-P1A3-G12
Regular price
$100.44
Unit price
VABF-S1-2-P1A3-G12 is backordered and will ship as soon as it is back in stock.
vertical pressure supply plate VABF-S1-2-P1A3-G12 Width=54 mm, Based on the standard=ISO 5599-1, Assembly position=Any, Pneumatic vertical stacking=Alternative pressure supply for 1, Operating pressure=-0,9 - 10 bar
| Width | 54 mm |
|---|---|
| Based on the standard | ISO 5599-1 |
| Assembly position | Any |
| Pneumatic vertical stacking | Alternative pressure supply for 1 |
| Operating pressure | '-0.9 ... 10 bar |
| Inlet pressure 1 | 0.5 ... 10 bar |
| Standard nominal flow rate | 2,800 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 605 g |
