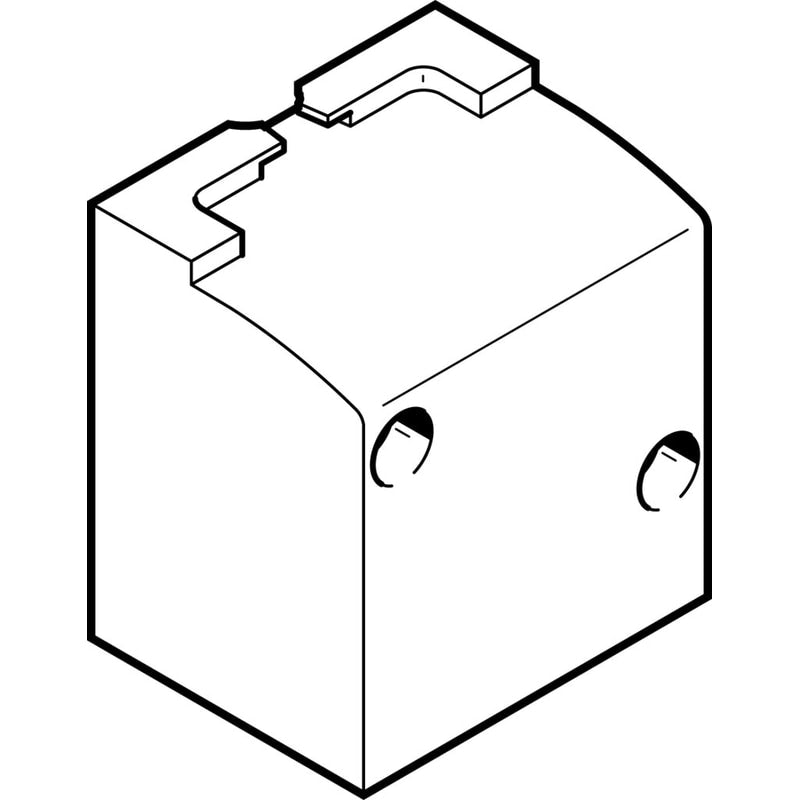

Angled connection plate
VABF-S2-2-A1G2-G12
555702
GTIN 4052568096328
Vendor Festo
Regular price
$60.43
Unit price
VABF-S2-2-A1G2-G12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABF-S2-2-A1G2-G12
Regular price
$60.43
Unit price
VABF-S2-2-A1G2-G12 is backordered and will ship as soon as it is back in stock.
90° connection plate VABF-S2-2-A1G2-G12 Width=58,1 mm, Based on the standard=ISO 5599-2, Assembly position=Any, Operating pressure=-0,9 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4]
| Width | 58.1 mm |
|---|---|
| Based on the standard | ISO 5599-2 |
| Assembly position | Any |
| Operating pressure | '-0.9 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4 |
| Ambient temperature | '-5 ... 50 °C |
| Product weight | 359 g |
| Mounting type | with through hole |
| Materials note | Conforms to RoHS |
| Material housing | Wrought Aluminium alloy |
