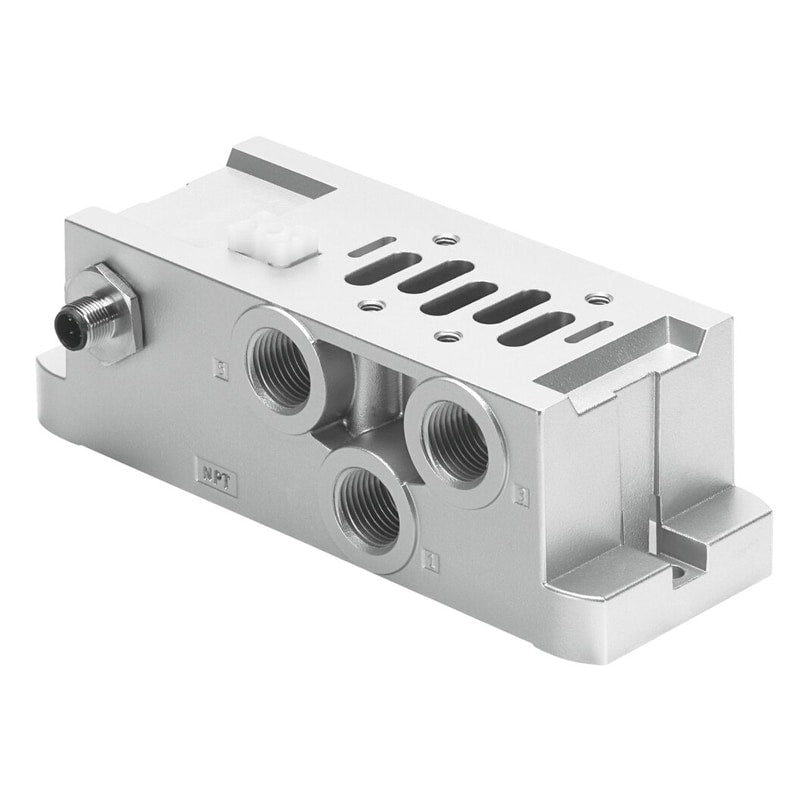

Sub-base
VABS-S2-2S-G12-B-R3
555645
GTIN 4052568096304
Vendor Festo
Regular price
$128.95
Unit price
VABS-S2-2S-G12-B-R3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABS-S2-2S-G12-B-R3
Regular price
$128.95
Unit price
VABS-S2-2S-G12-B-R3 is backordered and will ship as soon as it is back in stock.
sub-base VABS-S2-2S-G12-B-R3 Width=52 mm, Based on the standard=ISO 5599-2, Assembly position=Any, Pilot air supply=Internal, Operating pressure=-0,9 - 10 bar
| Width | 52 mm |
|---|---|
| Based on the standard | ISO 5599-2 |
| Assembly position | Any |
| Pilot air supply | Internal |
| Operating pressure | '-0.9 ... 10 bar |
| Operating voltage range DC | 24 V |
| Surge strength | 0.8 kV |
| Acceptable current load at 40°C | 0.0833333333333333 |
| Degree of contamination | 3 |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP65NEMA 4in assembled condition |
