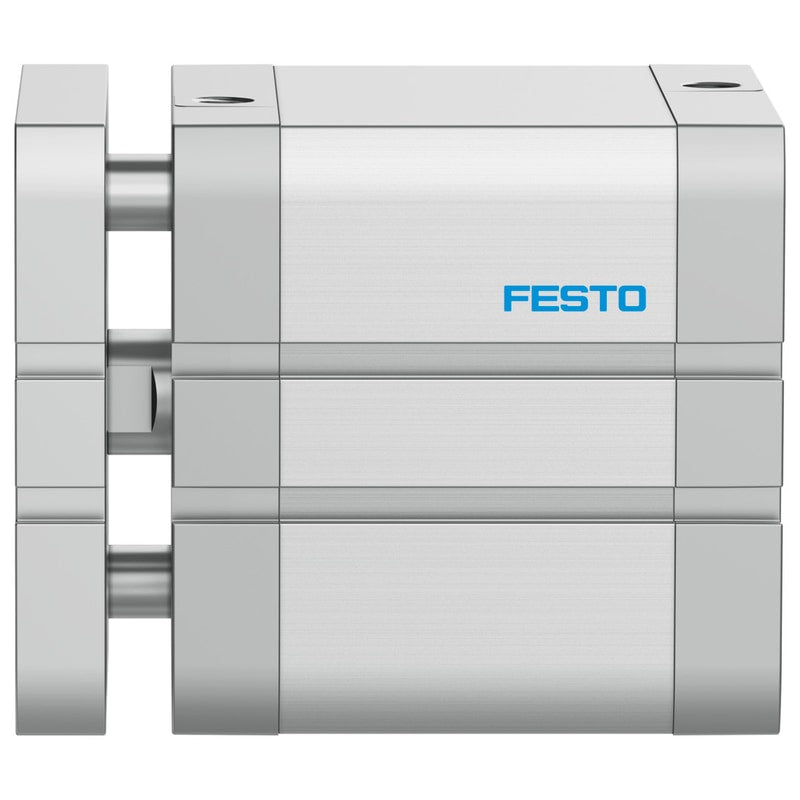

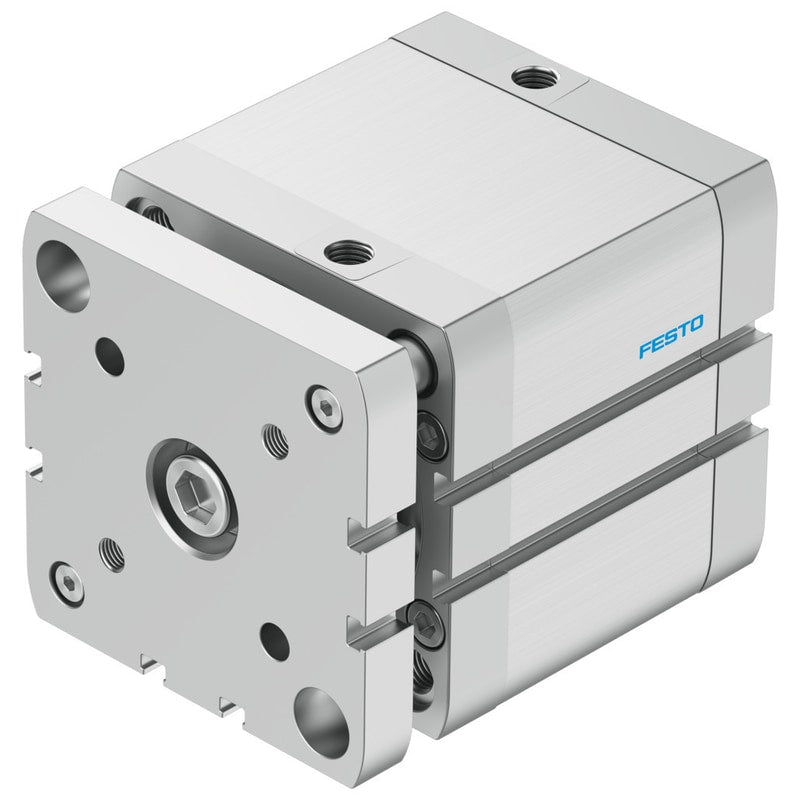

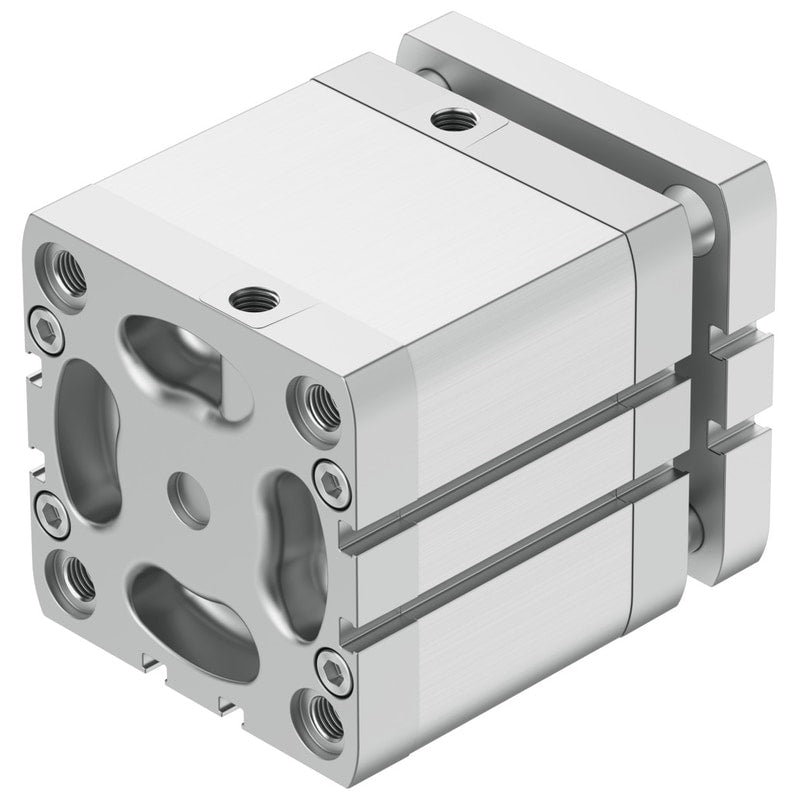

Compact cylinder
ADNGF-63-40-P-A
554273
GTIN 4052568198985
Vendor Festo
- Piston diameter
- 63 mm
- Theoretical force at 6 bar, advancing
- 1870 N
- Stroke
- 40 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Position sensing
- For proximity sensor
Regular price
$355.85
Unit price
ADNGF-63-40-P-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ADNGF-63-40-P-A
Regular price
$355.85
Unit price
ADNGF-63-40-P-A is backordered and will ship as soon as it is back in stock.
compact cylinder ADNGF-63-40-P-A According to ISO 21287, with plain-bearing guide, piston rod secured against rotation by means of guide rods and yoke plate. Stroke=40 mm, Piston diameter=63 mm, Based on the standard=ISO 21287, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 40 mm |
|---|---|
| Piston diameter | 63 mm |
| Based on the standard | ISO 21287 |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Design structure | PistonPiston rodProfile barrel |
| Position detection | For proximity sensor |
| Protection against torque/guide | Guide rod with yoke |
| Operating pressure | 1 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
