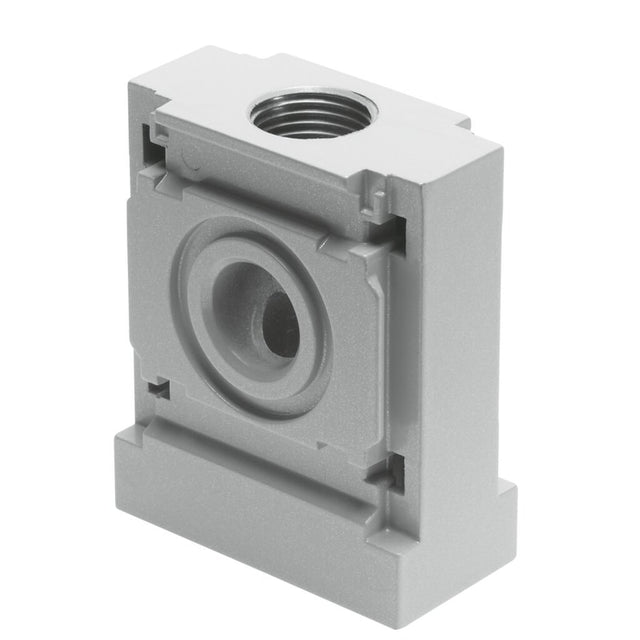

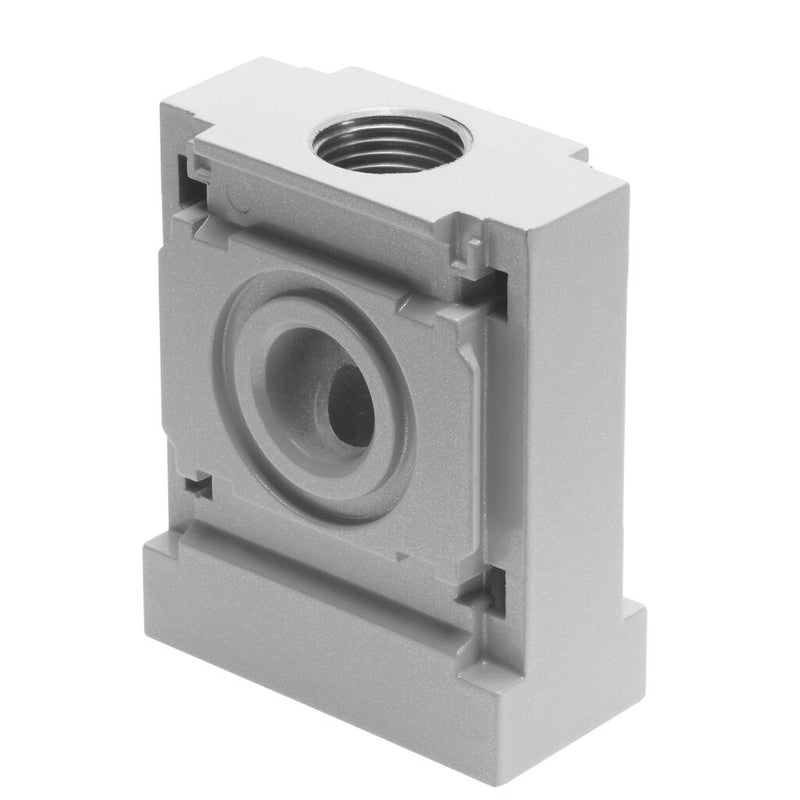

Distributor block
MS6N-FRM-FRZ
554102
GTIN 4052568358464
Vendor Festo
- Pneumatic connection 3
- NPT1/2-14
- Standard nominal flow rate in main flow direction 1 -> 2
- 14600 l/min
- Operating pressure
- 0 bar - 20 bar
Regular price
$21.63
Unit price
Distributor block MS6N-FRM-FRZ is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS6N-FRM-FRZ
Regular price
$21.63
Unit price
Distributor block MS6N-FRM-FRZ is backordered and will ship as soon as it is back in stock.
distributor block MS6N-FRM-FRZ Appropriate as adapter between two pressure regulator Assembly position=Any, Design structure=Branching module, Operating pressure=0 - 20 bar, Standard nominal flow rate in main flow direction 1->2=14600 l/min, Standard nominal flow rate outlet at top=10400 l/min
| Assembly position | Any |
|---|---|
| Design structure | Branching module |
| Operating pressure | 0 ... 20 bar |
| Standard nominal flow rate in main flow direction 1->2 | 14,600 l/min |
| Standard nominal flow rate outlet at top | 10,400 l/min |
| Standard nominal flow rate outlet at bottom | 9,850 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4]Inert gases |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
| Medium temperature | '-10 ... 60 °C |
| Ambient temperature | '-10 ... 60 °C |
| Authorisation | c UL us - Recognized (OL) |
