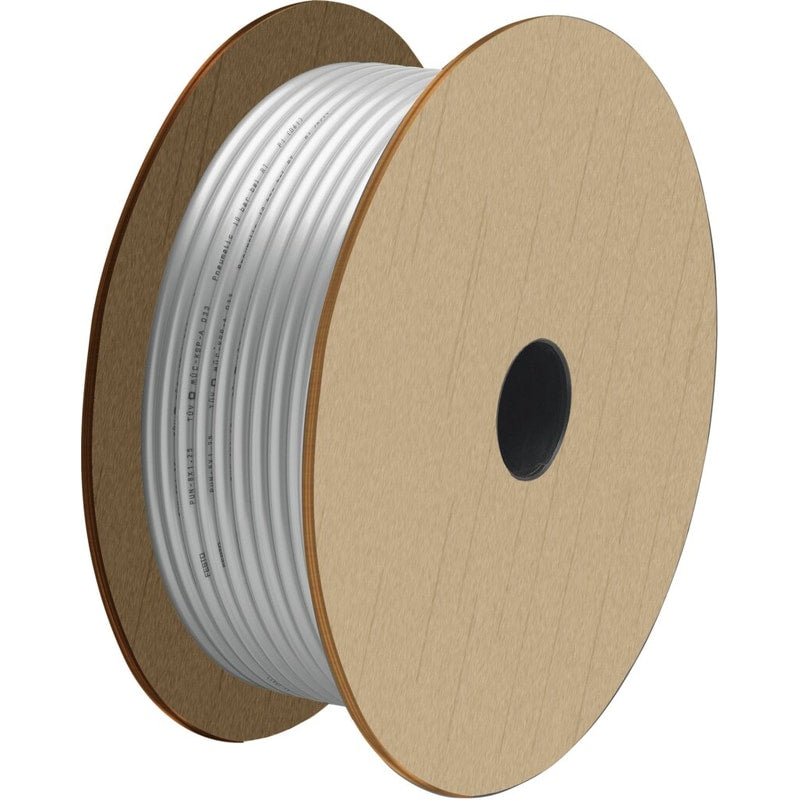

Plastic tubing
PAN-10X1,5-SI-300
553891
GTIN 4052568053024
Vendor Festo
- Outside diameter
- 10 mm
- Inside diameter
- 7 mm
- Temperature-dependent operating pressure
- -0.95 bar - 17 bar
- Ambient temperature
- -30 °C - 80 °C
Regular price
$5.42
Unit price
PAN-10X1,5-SI-300 Plastic tubing is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PAN-10X1,5-SI-300
Regular price
$5.42
Unit price
PAN-10X1,5-SI-300 Plastic tubing is backordered and will ship as soon as it is back in stock.
| Maritime classification | See certificate |
|---|---|
| Pneumatic tubing test conditions | Suitability for energy chains: >5 million cycles as per FN 942021 |
| Tubing characteristics | Suitable for energy chains in applications with high cycle rates |
| Outside diameter | 10 mm |
| Bending radius relevant for flow rate | 58 mm |
| Inside diameter | 7 mm |
| Min. bending radius | 27 mm |
| Type code | PAN |
| Temperature-dependent operating pressure | -0.95 bar ... 17 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Ambient temperature | -30 °C ... 80 °C |
| Certification | German Technical Control Board (TÃœV) |
| Product weight by length | 0.042 kg/m |
| Pneumatic connection | For plug connection outside diameter 10 mm |
| Color | Silver |
| Shore hardness | D 55 +/-3 |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Material of pneumatic tubing | TPE-A |
