Position transmitter
SMAT-8M-U-E-0,3-M8D
553744
GTIN 4052568197711
Vendor Festo
- Design
- for T-slot
- Analog output
- 0 - 10 V
- DC operating voltage range
- 15 V - 30 V
- Displacement resolution
- 0.02 mm
Regular price
$161.26
Unit price
SMAT-8M-U-E-0,3-M8D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMAT-8M-U-E-0,3-M8D
Regular price
$161.26
Unit price
SMAT-8M-U-E-0,3-M8D is backordered and will ship as soon as it is back in stock.

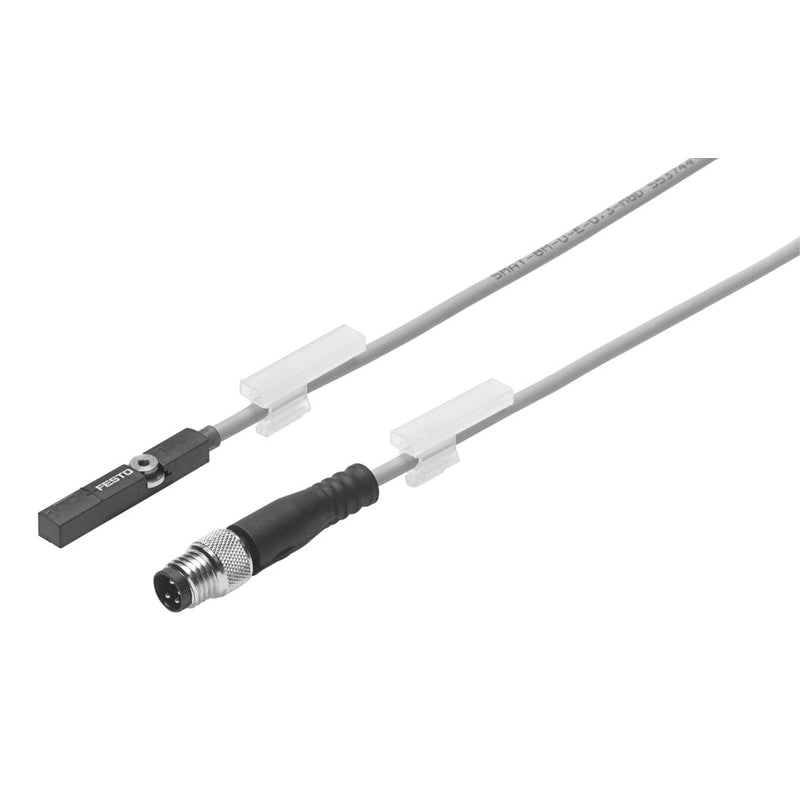

position transmitter SMAT-8M-U-E-0,3-M8D With integrated signal processing, analogue electrical outputs and visual operational state indication. Is mounted in the T slot. Design=for T-slot, Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Special characteristics=Oil resistant, Materials note=(* Conforms to RoHS, * Halogen-free)
| Design | for T-slot |
|---|---|
| Authorisation | RCM Markc UL us - Listed (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Special characteristics | Oil resistant |
| Materials note | Conforms to RoHSHalogen-free |
| Measuring principle | Magnetic |
| Distance measuring range | <= 40 mm |
| Ambient temperature | '-25 ... 75 °C |
| Typical scanning interval | 2.8 ms |
| Max. travel speed | 3 m/s |
| Travel resolution | <= 0.05 mm |
| Analogue output | 0 - 10 V |
| Typical linearity error in ± mm | ± 0.2 mm on grippers± 1 mm on cylinders |
