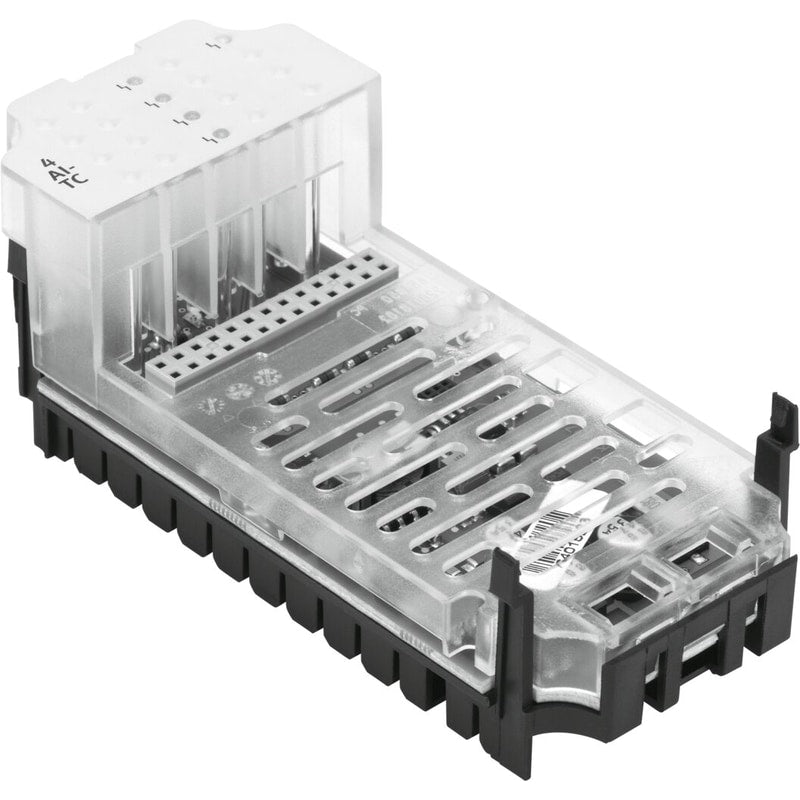

CPX-4AE-TC

analogue module CPX-4AE-TC Dimensions W x L x H=(* (incl. interlinking block and connection technology), * 50 mm x 107 mm x 50 mm), No. of inputs=4, Diagnosis=(* - Wire break per channel, * - Limit value violation per channel, * - Parameterisation error), Parameters configuring=(* - Limit monitoring/channel, * - Cold junction compensation, * - Unit of measurement, * - Measured value smoothing, * - Sensor type per channel, * Monitoring of wire break/channel), LED displays=(* - 1 Group diagnosis, * - 4 Channel diagnosis)

Dimensions W x L x H	(incl. interlinking block and connection technology)50 mm x 107 mm x 50 mm
No. of inputs	4
Diagnosis	'- Wire break per channel- Limit value violation per channel- Parameterisation error
Parameters configuring	'- Limit monitoring/channel- Cold junction compensation- Unit of measurement- Measured value smoothing- Sensor type per channelMonitoring of wire break/channel
LED displays	'- 1 Group diagnosis- 4 Channel diagnosis
Internal cycle time	250 ms
Repetition accuracy	0.05% at 25º C
Protection (short circuit)	Internal electronic fuse protection per channel
Operating voltage range DC	18 ... 30 V
Intrinsic current consumption at operating voltage	30 mA
Operating error limit related to the ambient temperature range	'+/- 0,6 %
Basic error limit at 25°C	'+/- 0,4 %
Max. line resistance	10 ohm/conductor
