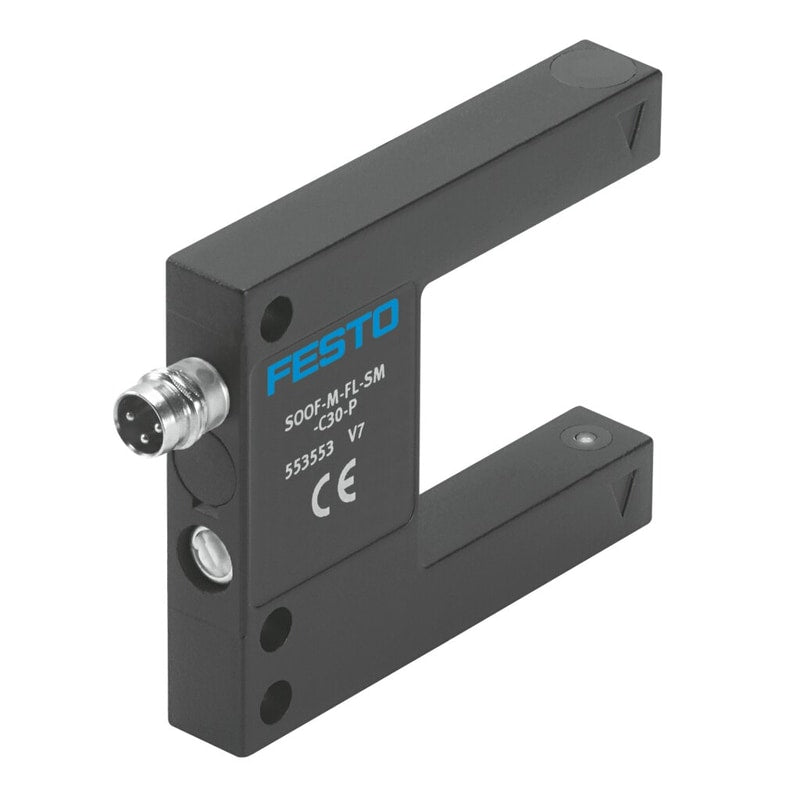

Fork light barrier
SOOF-M-FL-SM-C30-P
553553
GTIN 4052568197520
Vendor Festo
- Method of measurement
- Fork light barrier
- Minimum object diameter
- 0.3 mm
- Size
- Clevis 30x35 mm
- Type of light
- Red
- Fork gap
- 30 mm
Regular price
$294.28
Unit price
SOOF-M-FL-SM-C30-P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SOOF-M-FL-SM-C30-P
Regular price
$294.28
Unit price
SOOF-M-FL-SM-C30-P is backordered and will ship as soon as it is back in stock.
fork light barrier SOOF-M-FL-SM-C30-P Stable metal housing. Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Free of copper and PTFE, * Contains PWIS substances, * Conforms to RoHS), Measured variable=Position, Measuring principle=Optoelectronic
| Authorisation | RCM Markc UL us - Listed (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFEContains PWIS substancesConforms to RoHS |
| Measured variable | Position |
| Measuring principle | Optoelectronic |
| Measurement method | Fork light barrier |
| Type of light | Red |
| Minimal object diameter | 0.5 mm |
| Ambient temperature | '-10 ... 60 °C |
| Repetition accuracy | 0.02 mm |
| Switch output | PNP |
| Switching element function | Switchable |
| Hysteresis | <= 0.25 mm |
