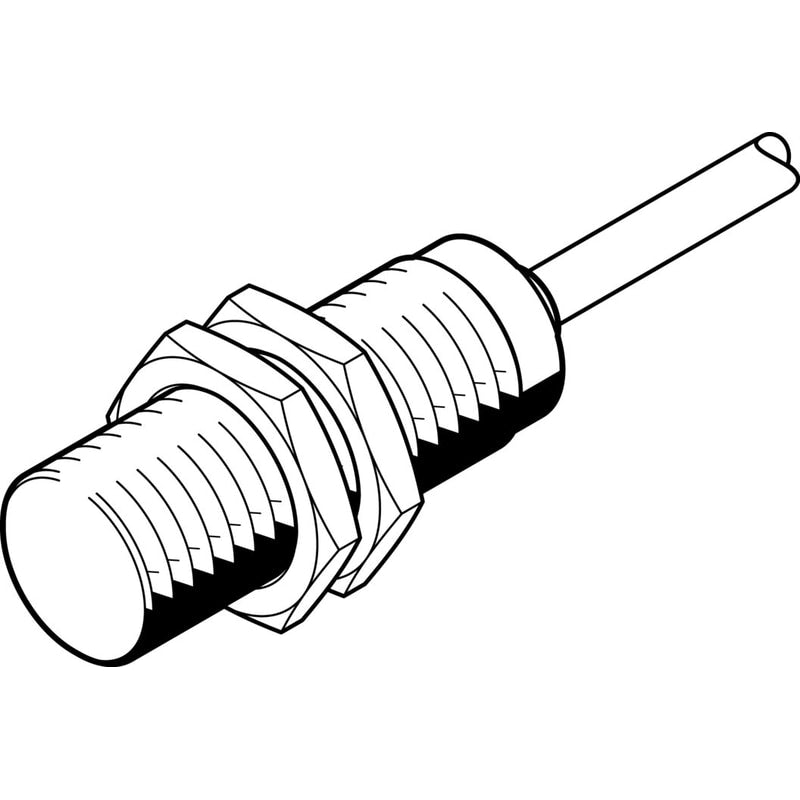

Proximity sensor
SIEF-M18B-NS-K-L
553548
GTIN 4052568096045
Vendor Festo
- Size
- M18
- Switching output
- NPN
- Switching element function
- N/O contact
- Electrical connection
- Cable
- DC operating voltage range
- 10 V - 30 V
Regular price
$127.61
Unit price
SIEF-M18B-NS-K-L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SIEF-M18B-NS-K-L
Regular price
$127.61
Unit price
SIEF-M18B-NS-K-L is backordered and will ship as soon as it is back in stock.
proximity sensor SIEF-M18B-NS-K-L With cable, flush mounting Design=Round, Conforms to standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Free of copper and PTFE, * Conforms to RoHS)
| Design | Round |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Authorisation | RCM Markc UL us - Listed (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Nominal switching distance | 5 mm |
| Ambient temperature | '-30 ... 70 °C |
| Repetition accuracy | 0.28 mm |
| Switch output | NPN |
| Switching element function | Normally open contact |
| Max. switching frequency, DC | 3,000 Hz |
| Max. output current | 200 mA |
| Short circuit strength | Pulsing |
