Bellows kit
DADB-S1-63-S51-125
553503
GTIN 4052568197339
Vendor Festo
Regular price
$183.76
Unit price
DADB-S1-63-S51-125 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DADB-S1-63-S51-125
Regular price
$183.76
Unit price
DADB-S1-63-S51-125 is backordered and will ship as soon as it is back in stock.

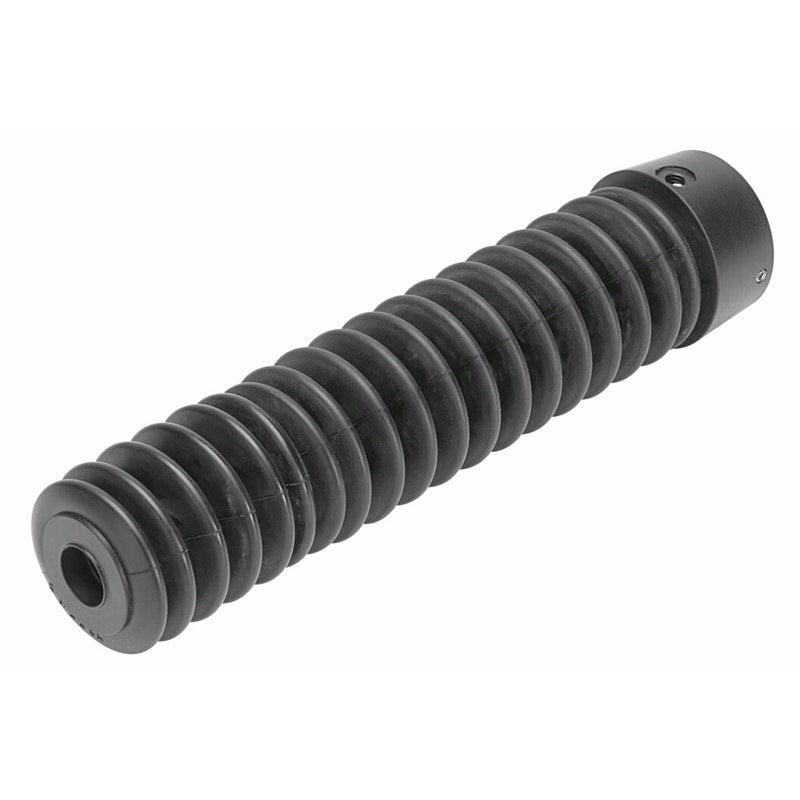

bellows kit DADB-S1-63-S51-125 For standard cylinders to ISO 6432 Outside diameter=57 mm, Size=63, Stroke range=51 - 125 mm, Piston rod extension=48 mm, Design=Round
| Outside diameter | 57 mm |
|---|---|
| Size | 63 |
| Stroke range | 51 ... 125 mm |
| Piston rod extension | 48 mm |
| Design | Round |
| Assembly position | Any |
| Design structure | Bellows kitwith ducted exhaust air |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Resistance to media | DustChippingsOilsGreaseGasolines |
| Protection class | IP54 |
| Ambient temperature | '-10 ... 80 °C |
| Product weight | 75 g |
| Mounting type | With threaded pinwith internal (female) thread |
