Bellows kit
DADB-S1-25-S401-450
553437
GTIN 4052568197049
Vendor Festo
Regular price
$341.39
Unit price
DADB-S1-25-S401-450 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DADB-S1-25-S401-450
Regular price
$341.39
Unit price
DADB-S1-25-S401-450 is backordered and will ship as soon as it is back in stock.

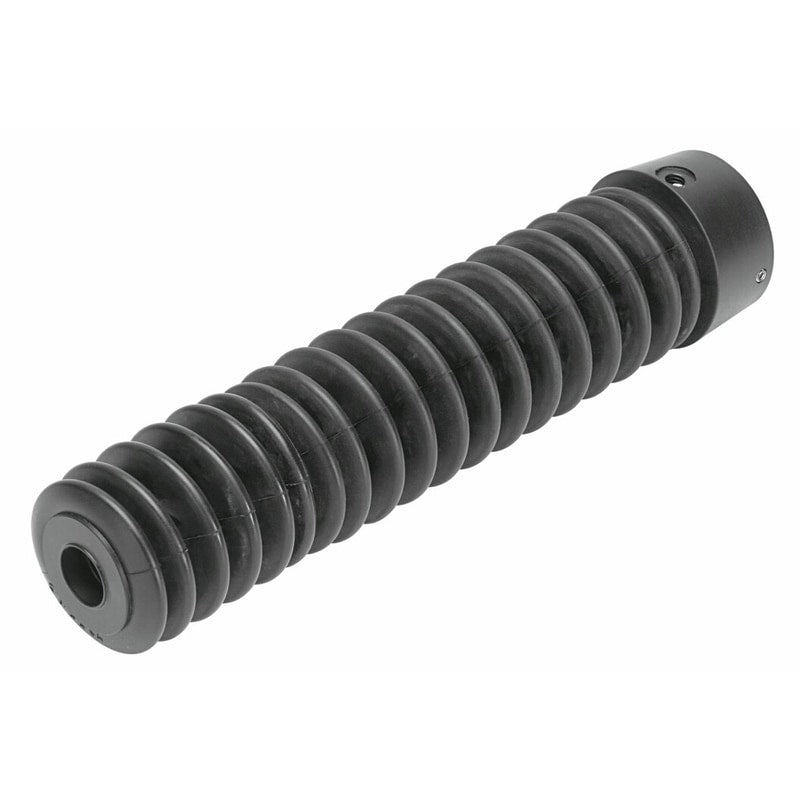

bellows kit DADB-S1-25-S401-450 For standard cylinders to ISO 6432 Outside diameter=29 mm, Size=25, Stroke range=401 - 450 mm, Piston rod extension=127 mm, Design=Round
| Outside diameter | 29 mm |
|---|---|
| Size | 25 |
| Stroke range | 401 ... 450 mm |
| Piston rod extension | 127 mm |
| Design | Round |
| Assembly position | Any |
| Design structure | Bellows kitwith ducted exhaust air |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Resistance to media | DustChippingsOilsGreaseGasolines |
| Ambient temperature | '-10 ... 80 °C |
| Product weight | 124 g |
| Mounting type | With threaded pinwith internal (female) thread |
| Pneumatic connection | M5 |
