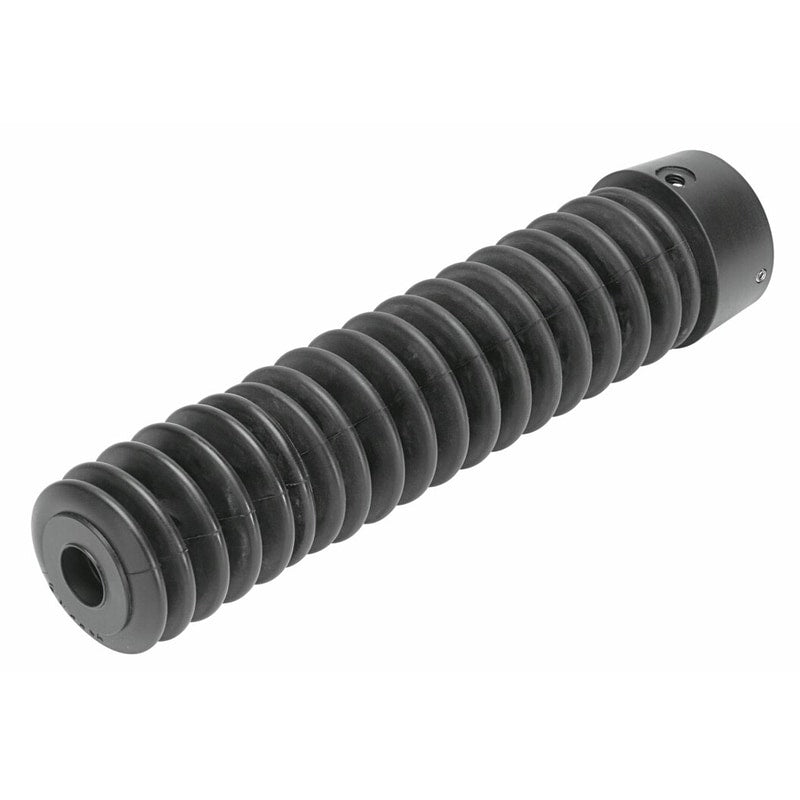

Bellows kit
DADB-V6-63-S351-375
553343
GTIN 4052568196677
Vendor Festo
Regular price
$278.97
Unit price
DADB-V6-63-S351-375 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DADB-V6-63-S351-375
Regular price
$278.97
Unit price
DADB-V6-63-S351-375 is backordered and will ship as soon as it is back in stock.
bellows kit DADB-V6-63-S351-375 For standard cylinders to ISO 15552 Outside diameter=57 mm, Size=63, Stroke range=351 - 375 mm, Piston rod extension=105 mm, Design=Round
| Outside diameter | 57 mm |
|---|---|
| Size | 63 |
| Stroke range | 351 ... 375 mm |
| Piston rod extension | 105 mm |
| Design | Round |
| Assembly position | Any |
| Design structure | Bellows kitwith ducted exhaust air |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Resistance to media | DustChippingsOilsGreaseGasolines |
| Protection class | IP54 |
| Ambient temperature | '-10 ... 80 °C |
| Product weight | 165 g |
| Mounting type | slip-onWith threaded pin |
