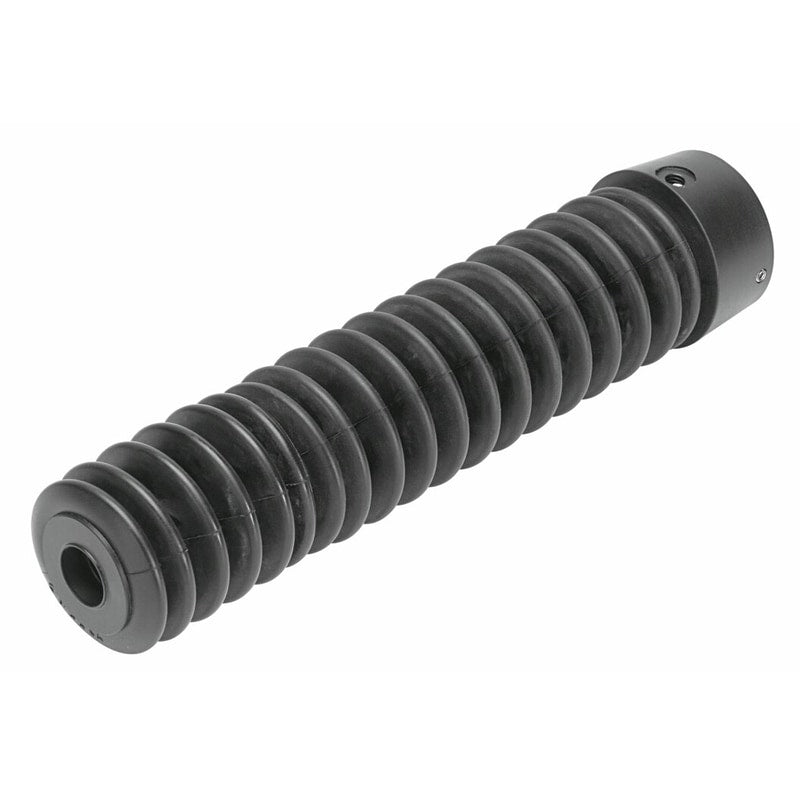

Bellows kit
DADB-V6-63-S301-350
553341
GTIN 4052568196660
Vendor Festo
Regular price
$301.93
Unit price
DADB-V6-63-S301-350 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DADB-V6-63-S301-350
Regular price
$301.93
Unit price
DADB-V6-63-S301-350 is backordered and will ship as soon as it is back in stock.
bellows kit DADB-V6-63-S301-350 For standard cylinders to ISO 15552 Outside diameter=57 mm, Size=63, Stroke range=301 - 350 mm, Piston rod extension=97 mm, Design=Round
| Outside diameter | 57 mm |
|---|---|
| Size | 63 |
| Stroke range | 301 ... 350 mm |
| Piston rod extension | 97 mm |
| Design | Round |
| Assembly position | Any |
| Design structure | Bellows kitwith ducted exhaust air |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Resistance to media | DustChippingsOilsGreaseGasolines |
| Protection class | IP54 |
| Ambient temperature | '-10 ... 80 °C |
| Product weight | 164 g |
| Mounting type | slip-onWith threaded pin |
