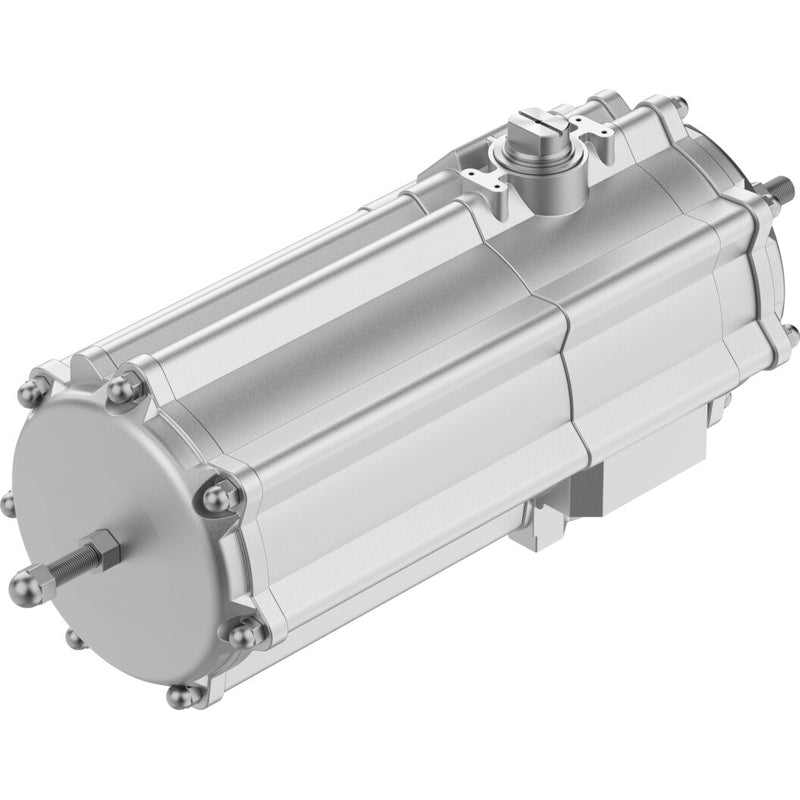

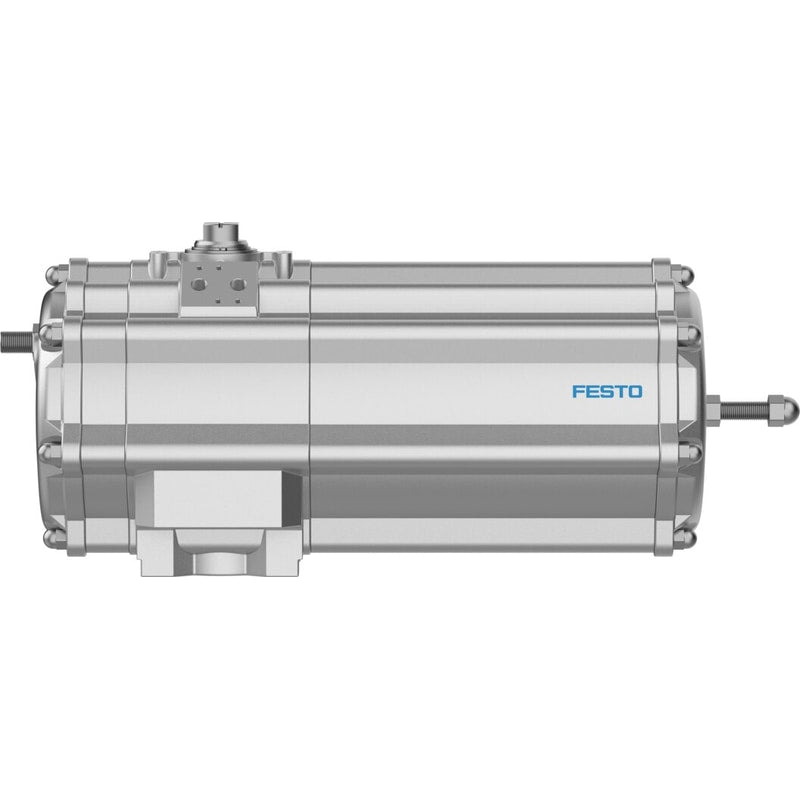

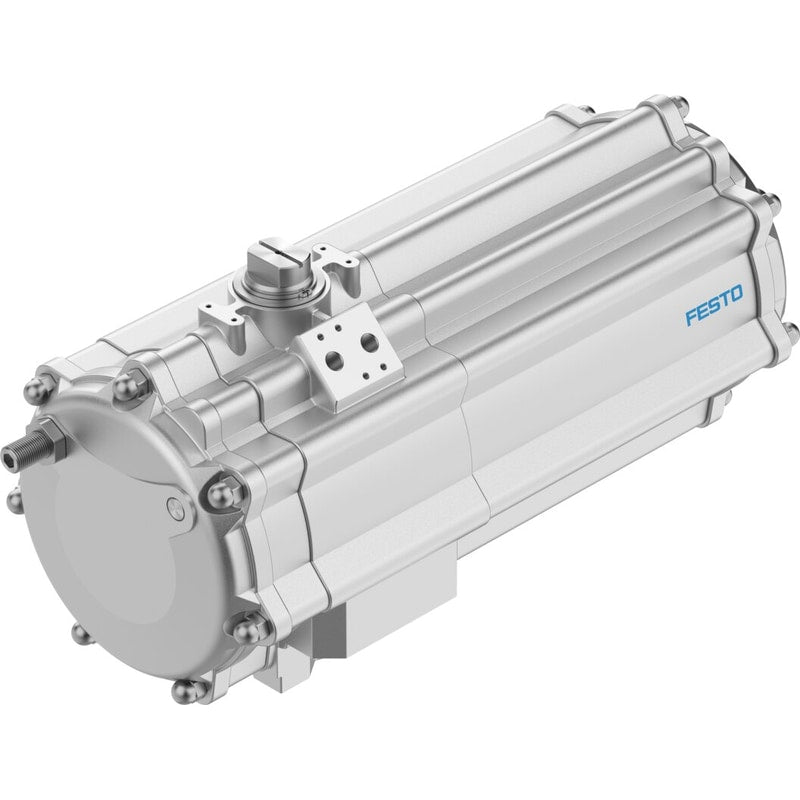

Quarter turn actuator
DAPS-1440-090-RS4-F16-T6
553245
GTIN 4052568196226
Vendor Festo
- Pneumatic connection
- G3/8
- Torque at nominal operating pressure and 0° swivel angle
- 1440 Nm
- Swivel angle
- 90 deg
- Flange hole pattern
- F16
- Shaft connection
- T46
Regular price
$11,162.56
Unit price
DAPS-1440-090-RS4-F16-T6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DAPS-1440-090-RS4-F16-T6
Regular price
$11,162.56
Unit price
DAPS-1440-090-RS4-F16-T6 is backordered and will ship as soon as it is back in stock.
| Size of valve actuator | 1440 |
|---|---|
| Flange hole pattern | F16 |
| Swivel angle | 90deg |
| End-position adjusting range at 0° | -5deg |
| End-position adjusting range at nominal swivel angle | 85deg |
| Depth shaft connection | 49.5mm |
| Standard connection for valve | ISO 5211 |
| Cushioning | No cushioning |
| Mounting position | Any |
| Mode of operation | Single-acting |
| Structural design | Scotch yoke system |
| Position sensing | None |
| Closing direction | Clockwise closing |
| Symbol | 00991266 |
| Valve connection conforms to standard | VDI/VDE 3845 (NAMUR) |
| Safety integrity level (SIL) | Up to SIL 2 high demand mode |
| Connection pressure for spring force | 0.56MPa |
| Connection pressure for spring force | 5.6bar |
| Operating pressure | 0.56MPa |
| Operating pressure | 5.6bar |
| Nominal operating pressure | 0.56MPa |
| Nominal operating pressure | 5.6bar |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion prevention and protection | Zone 1 (ATEX) |
| ATEX category gas | II 2G |
| ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T6...T3 Gb X |
| Type of (ignition) protection for dust | Ex h IIIC T85°C...T200°C Db X |
| Explosive ambient temperature | -50°C <= Ta <= +60°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | -50°C |
| Torque at nominal operating pressure and 0° swivel angle | 1440Nm |
| Torque at nominal operating pressure and 50° swivel angle | 720Nm |
| Torque at nominal operating pressure and 90° swivel angle | 960Nm |
| Note about the torque | The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling. |
| Spring return torque at 0° swivel angle | 960Nm |
| Spring return torque with 50° swivel angle | 720Nm |
| Spring return torque with 90° swivel angle | 1440Nm |
| Spring force | 4 |
| Air consumption at 6 bar per cycle 0°-nominal swivel angle-0° | 77l |
| Product weight | 74000g |
| Shaft connection | T46 |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Seals material | FVMQ |
| Housing material | Wrought aluminum alloy |
| Material of screws | High-alloy steel |
| Shaft material | High-alloy steel |
| Material number for shaft | 1.4305 |
