MS9-LFM-3/4-BUM-DA
553082
Vendor Festo
Regular price
$399.69
Unit price
MS9-LFM-3/4-BUM-DA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS9-LFM-3/4-BUM-DA
Regular price
$399.69
Unit price
MS9-LFM-3/4-BUM-DA is backordered and will ship as soon as it is back in stock.

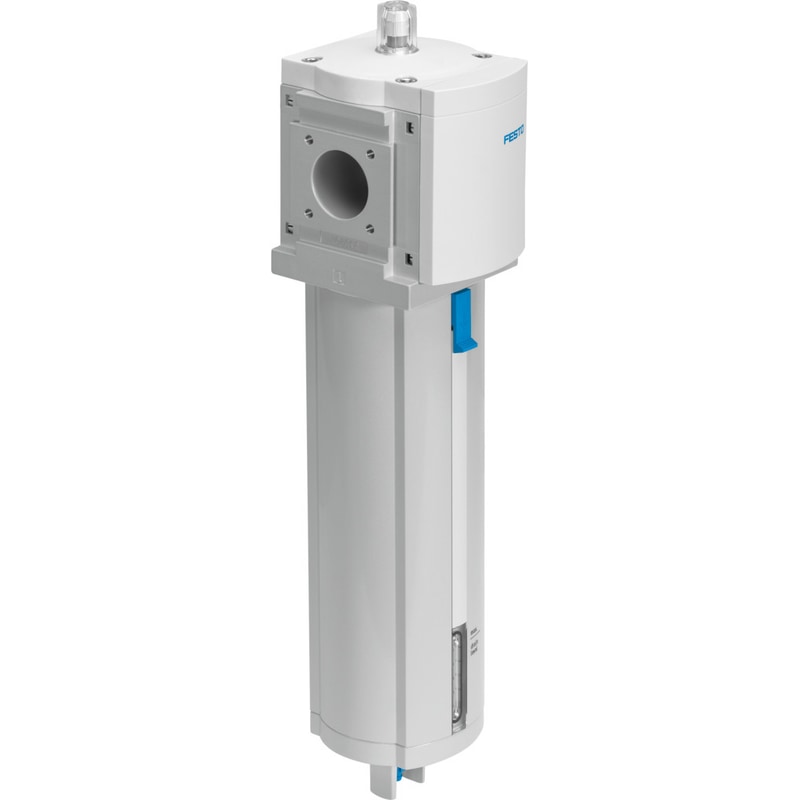

fine filter MS9-LFM-3/4-BUM-DA 1 µm filter, metal bowl guard, with differential pressure indicator, manual condensate drain, flow direction from left to right. Series=MS, Size=9, Design structure=Fibre filter, Grade of filtration=1 µm, Condensate drain=manual rotary
| Series | MS |
|---|---|
| Size | 9 |
| Design structure | Fibre filter |
| Grade of filtration | 1 µm |
| Condensate drain | manual rotary |
| Operating pressure | 0 ... 20 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [6:8:4] |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [5:7:3] |
| Max. standard flow rate for air quality class | 7,000 l/min |
| Min. standard flow rate for air quality class | 350 l/min |
| Filter efficiency | 0.9999 |
| Max. condensate volume | 225 ml |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
