Active carbon filter
MS9-LFX-N1-U
553034
GTIN 4052568358068
Vendor Festo
- Pneumatic connection 1
- 1 NPT
- Max. standard flow rate for air quality class
- 6500 l/min
- Ambient temperature
- -10 °C - 60 °C
- Operating pressure
- 0 bar - 20 bar
- Structural design
- Active carbon filter
Regular price
$387.04
Unit price
MS9-LFX-N1-U is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS9-LFX-N1-U
Regular price
$387.04
Unit price
MS9-LFX-N1-U is backordered and will ship as soon as it is back in stock.

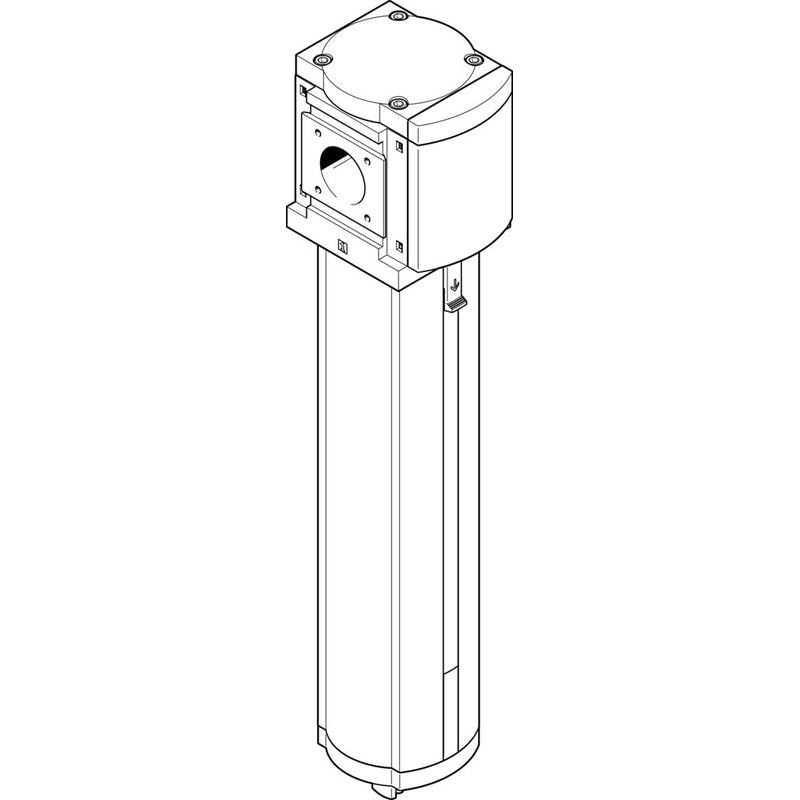

activated carbon filter MS9-LFX-N1-U Metal bowl, direction of flow: from left to right. Size=9, Series=MS, Assembly position=Vertical +/- 5°, Design structure=Active carbon filter, Operating pressure=0 - 20 bar
| Size | 9 |
|---|---|
| Series | MS |
| Assembly position | Vertical +/- 5° |
| Design structure | Active carbon filter |
| Operating pressure | 0 ... 20 bar |
| Max. standard flow rate for air quality class | 6,500 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [1:4:2] |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-10 ... 60 °C |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [1:4:1] |
| Medium temperature | 5 ... 30 °C |
| Residual oil content | 0.003 mg/m3 |
| Ambient temperature | '-10 ... 60 °C |
