Pressure booster
DPA-40-16-CRVZS2
552929
GTIN 4052568194925
Vendor Festo
- Pneumatic connection 1
- QS-10
- Inlet pressure 1
- 2 bar - 8 bar
- Outlet pressure 2
- 4.5 bar - 16 bar
Regular price
$2,406.64
Unit price
DPA-40-16-CRVZS2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DPA-40-16-CRVZS2
Regular price
$2,406.64
Unit price
DPA-40-16-CRVZS2 is backordered and will ship as soon as it is back in stock.

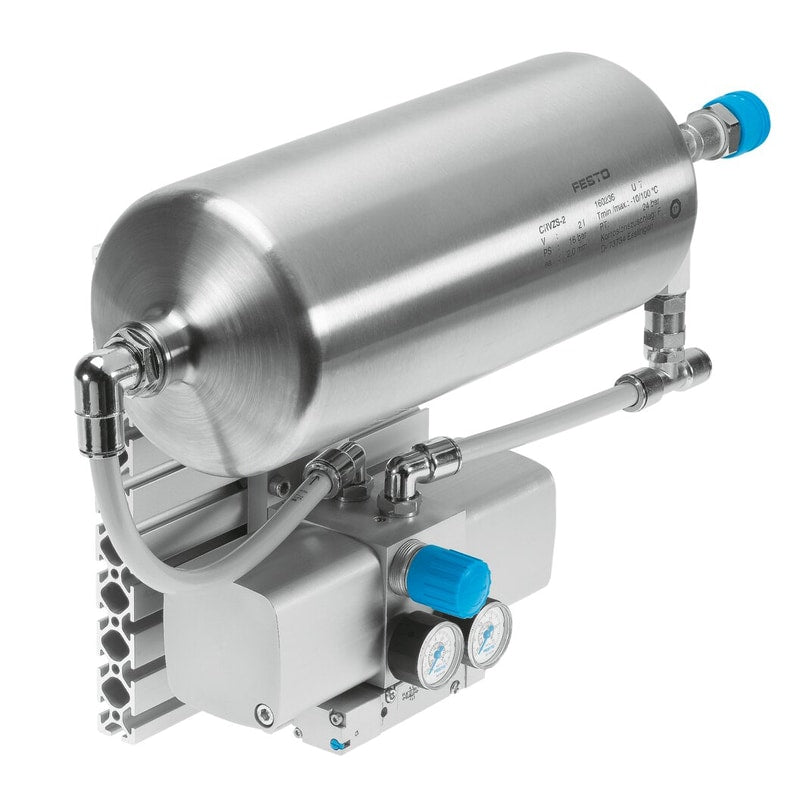

pressure booster DPA-40-16-CRVZS2 combination of pressure booster and air reservoir in stainless steel design Piston diameter=40 mm, Volume=2 l, Assembly position=Any, Design structure=(* Twin-piston pressure booster, * with air reservoir, * with pressure gauge, * with non-return valve), Pressure gauge=with pressure gauge
| Piston diameter | 40 mm |
|---|---|
| Volume | 2 l |
| Assembly position | Any |
| Design structure | Twin-piston pressure boosterwith air reservoirwith pressure gaugewith non-return valve |
| Pressure gauge | with pressure gauge |
| Output pressure 2 | 4.5 ... 16 bar |
| Operating pressure | 2.5 ... 8 bar |
| Pressure regulation range | 4.5 ... 16 bar |
| Inlet pressure 1 | 2 ... 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:3:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | 5 ... 60 °C |
