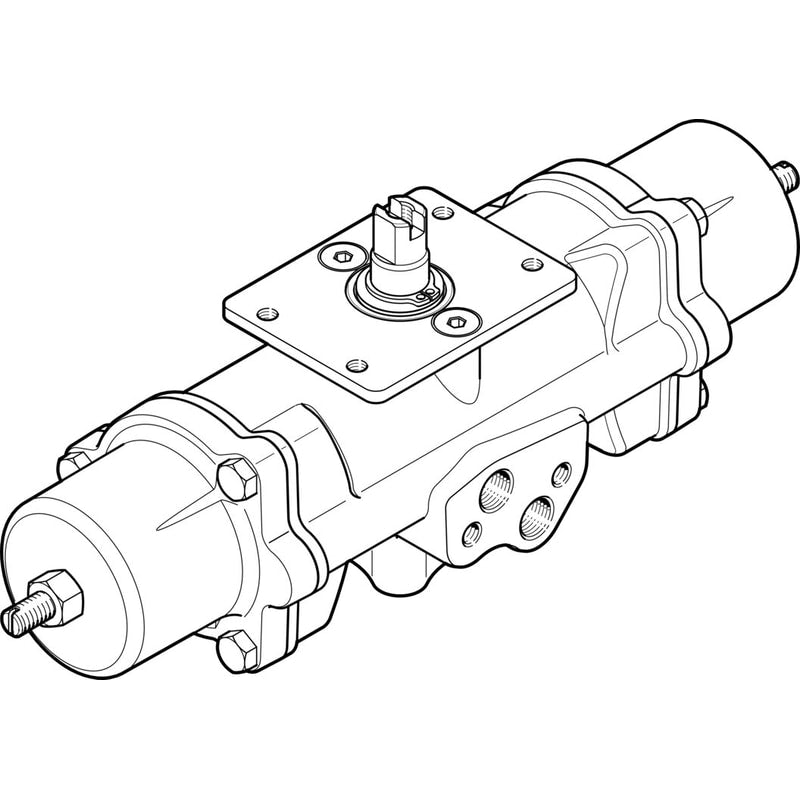

Quarter turn actuator
DAPS-0015-090-RS3-F03-CR
552877
GTIN 4052568194703
Vendor Festo
- Pneumatic connection
- G1/8
- Torque at nominal operating pressure and 0° swivel angle
- 17.6 Nm
- Swivel angle
- 90 deg
- Flange hole pattern
- F03
- Shaft connection
- T9
Regular price
$954.33
Unit price
DAPS-0015-090-RS3-F03-CR is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DAPS-0015-090-RS3-F03-CR
Regular price
$954.33
Unit price
DAPS-0015-090-RS3-F03-CR is backordered and will ship as soon as it is back in stock.
semi-rotary drive DAPS-0015-090-RS3-F03-CR Size of actuator=0015, Flange hole pattern=F03, Swivel angle=90 deg, Shaft connection depth=10,2 mm, Cushioning=No cushioning
| Size of actuator | 15 |
|---|---|
| Flange hole pattern | F03 |
| Swivel angle | 90 deg |
| Shaft connection depth | 10.2 mm |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | single-acting |
| Design structure | Yoke kinematics |
| Position detection | No |
| Closing direction | right-closing |
| Safety Integrity Level (SIL) | Product can be used in SRP/CS up to SIL 2 (high demand)Product can be used in SRP/CS up to SIL 2 low demand |
| Supply pressure for spring strength | 4.2 bar |
| Operating pressure | 4.2 ... 8.4 bar |
