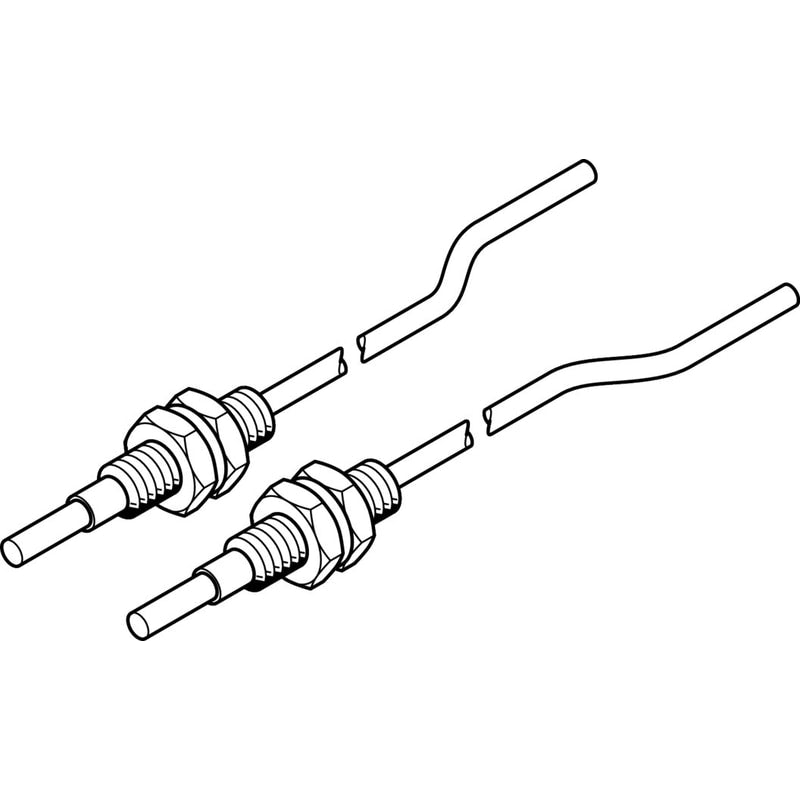

Fiber-optic cable
SOOC-TB-F-M4-2-R2
552818
GTIN 4052568095444
Vendor Festo
- Method of measurement
- Through-beam sensor
- Working range
- 300 mm
- Head size
- M4
- Special feature of fibre-optic cable
- Flexible
- Minimum object diameter
- 0.15 mm
Regular price
$117.25
Unit price
SOOC-TB-F-M4-2-R2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SOOC-TB-F-M4-2-R2
Regular price
$117.25
Unit price
SOOC-TB-F-M4-2-R2 is backordered and will ship as soon as it is back in stock.
fibre-optic cable SOOC-TB-F-M4-2-R2 Suitable for SOE4 fibre-optic units. Materials note=Contains PWIS substances, Measurement method=Through-beam sensor, Minimal object diameter=0,15 mm, Fibre-optic cable - special feature=Flexible, Working range=300 mm
| Materials note | Contains PWIS substances |
|---|---|
| Measurement method | Through-beam sensor |
| Minimal object diameter | 0.15 mm |
| Fibre-optic cable - special feature | Flexible |
| Working range | 300 mm |
| Ambient temperature | '-40 ... 70 °C |
| Size, head | M4 |
| Fibre optic cable length | 2 m |
| Min. bending radius | 2 mm |
| Max. tightening torque | 2 Nm |
| Outside diameter | 2.2 mm |
| Material housing | BrassNickel plated |
| Material fibre-optic | PE |
