Fiber-optic cable
SOOC-TB-M4-1-R25
552814
GTIN 4052568052775
Vendor Festo
- Method of measurement
- Through-beam sensor
- Working range
- 400 mm
- Head size
- M4
- Special feature of fibre-optic cable
- Standard
- Minimum object diameter
- 0.35 mm
Regular price
$24.06
Unit price
SOOC-TB-M4-1-R25 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SOOC-TB-M4-1-R25
Regular price
$24.06
Unit price
SOOC-TB-M4-1-R25 is backordered and will ship as soon as it is back in stock.

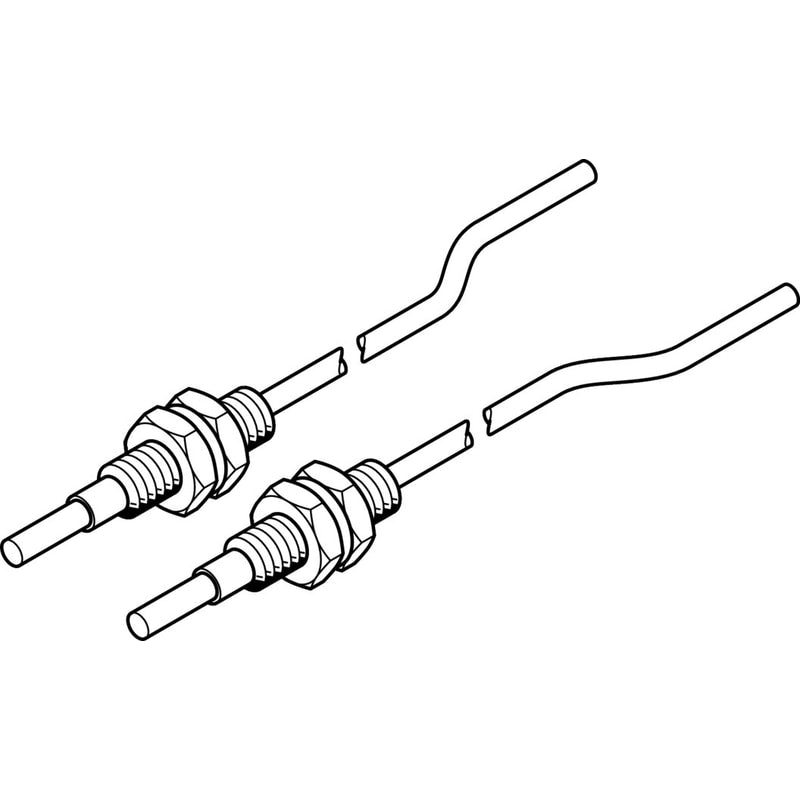

fibre-optic cable SOOC-TB-M4-1-R25 Suitable for SOE4 fibre-optic units. Materials note=Contains PWIS substances, Measurement method=Through-beam sensor, Minimal object diameter=0,35 mm, Fibre-optic cable - special feature=Standard, Working range=400 mm
| Materials note | Contains PWIS substances |
|---|---|
| Measurement method | Through-beam sensor |
| Minimal object diameter | 0.35 mm |
| Fibre-optic cable - special feature | Standard |
| Working range | 400 mm |
| Ambient temperature | '-55 ... 70 °C |
| Size, head | M4 |
| Fibre optic cable length | 1 m |
| Min. bending radius | 25 mm |
| Max. tightening torque | 2 Nm |
| Outside diameter | 2.2 mm |
| Material housing | High alloy steel, non-corrosive |
| Material fibre-optic | PE |
