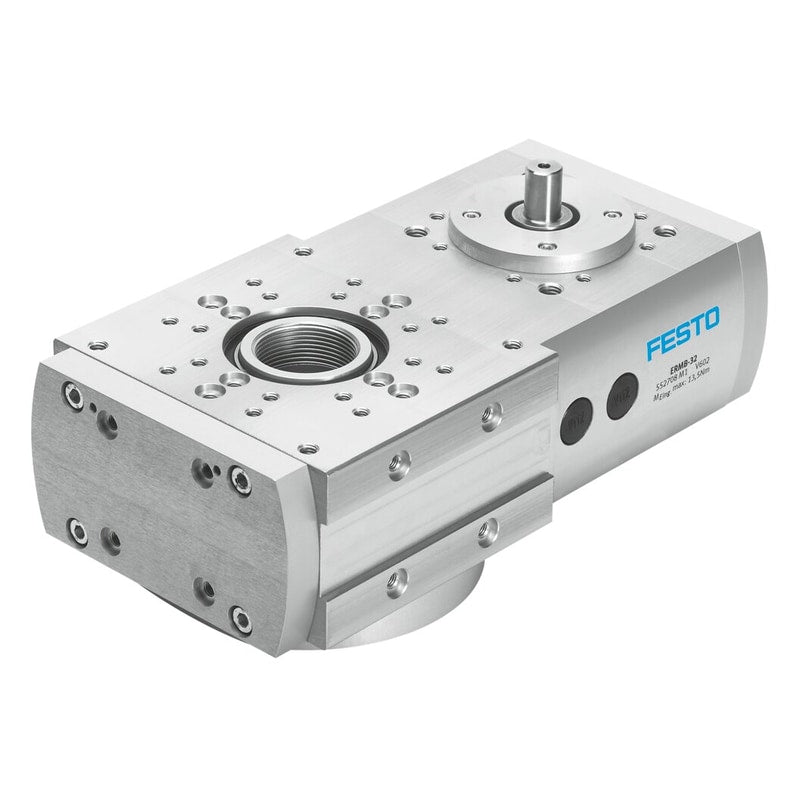

Rotary module
ERMB-32
552708
GTIN 4052568194390
Vendor Festo
- Max. driving torque
- 8.5 Nm
- Max. input speed
- 900 1/min
- Rotation angle
- Infinite
Regular price
$2,887.82
Unit price
ERMB-32 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ERMB-32
Regular price
$2,887.82
Unit price
ERMB-32 is backordered and will ship as soon as it is back in stock.
rotary module ERMB-32 Electrics The output interface is the same as on the pneumatic semi-rotary drive DRQD. Size=32, Design structure=(* Electro-mechanical rotary module, * With toothed belt), Assembly position=Any, Rotation angle=Endless, Gear unit ratio=3:1
| Size | 32 |
|---|---|
| Design structure | Electro-mechanical rotary moduleWith toothed belt |
| Assembly position | Any |
| Rotation angle | Endless |
| Gear unit ratio | 0.125694444444444 |
| Product weight | 3,250 g |
| Drive pinion diameter | 12 mm |
| Toothed-belt pitch | 5 mm |
| Max. output speed | 300 1/min |
| Max. input speed | 900 1/min |
| Max. drive torque | 8.5 Nm |
| No-load driving torque | < 0.5 Nm |
| Ambient temperature | '-10 ... 60 °C |
