Electrical interface

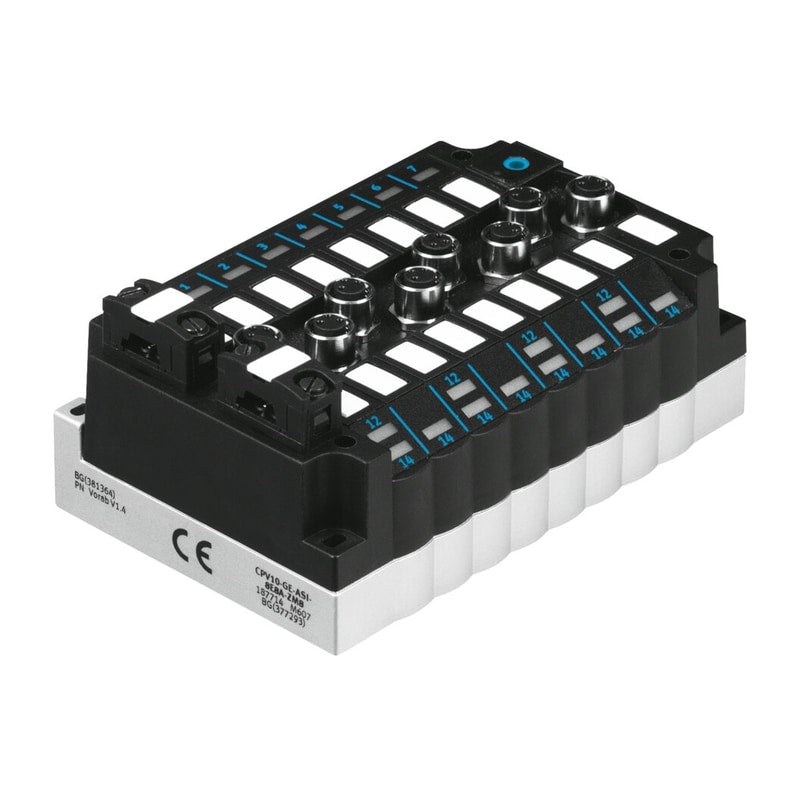

CPV14-GE-ASI-8E8A-Z-M8-CE
552562
GTIN 4052568194321
Vendor Festo
Regular price
$998.54
Unit price
CPV14-GE-ASI-8E8A-Z-M8-CE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPV14-GE-ASI-8E8A-Z-M8-CE
Regular price
$998.54
Unit price
CPV14-GE-ASI-8E8A-Z-M8-CE is backordered and will ship as soon as it is back in stock.
electrical interface CPV14-GE-ASI-8E8A-Z-M8-CE Fieldbus interface=(* AS interface: flat cable plug, * Load voltage: flat cable plug), Device-specific diagnostics=Short-circuit / overload, inputs, Max. number of valve positions=8, Max. number of solenoid coils=8, Polarity protected=For all operating voltage connections
| Fieldbus interface | AS interface: flat cable plugLoad voltage: flat cable plug |
|---|---|
| Device-specific diagnostics | Short-circuit / overload, inputs |
| Max. number of valve positions | 8 |
| Max. number of solenoid coils | 8 |
| Polarity protected | For all operating voltage connections |
| Number of slaves per device | 2 |
| DC operating voltage, AS interface | 26.5 ... 31.6 V |
| Debouncing time, inputs | 3 ms |
| Note regarding load voltage | Via load voltage connection (24 V DC) |
| Load voltage range DC | 21.6 ... 26.4 V |
| Maximum number of inputs | 8 |
| Nominal DC operating voltage, AS interface | 26.5 V |
| Nominal voltage DC | 24 V |
