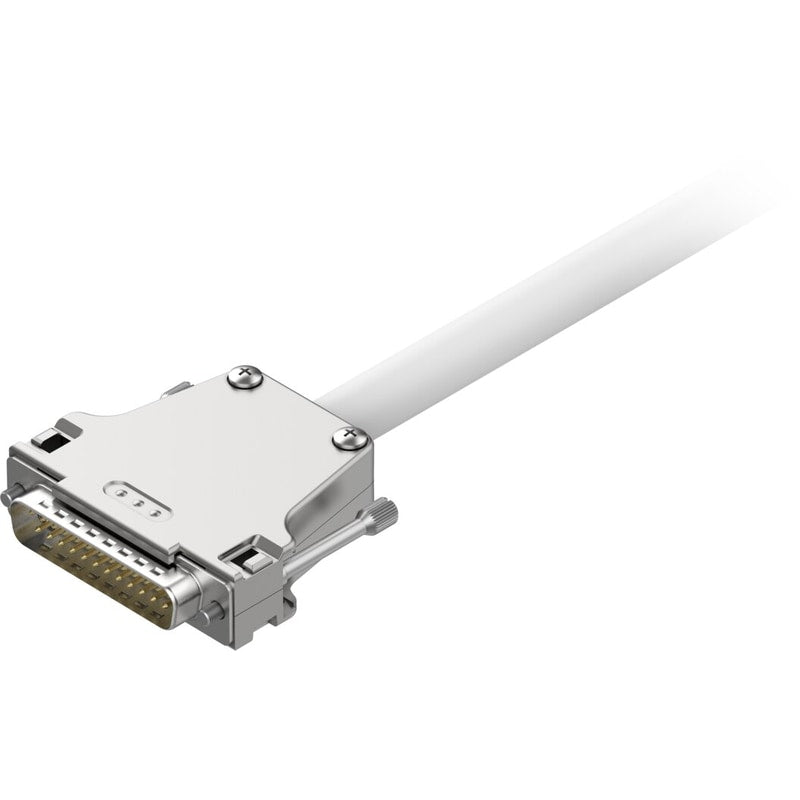

Control cable
NEBC-S1G25-K-2.5-N-LE26
552254
GTIN 4052568194147
Vendor Festo
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Cable length
- 2.5 m
Regular price
$170.80
Unit price
NEBC-S1G25-K-2.5-N-LE26 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBC-S1G25-K-2.5-N-LE26
Regular price
$170.80
Unit price
NEBC-S1G25-K-2.5-N-LE26 is backordered and will ship as soon as it is back in stock.
| Type code | NEBC |
|---|---|
| Product weight | 570 g |
| Electrical connection 1 | Straight plug, Sub-D, 25-pin |
| Electrical connection 2 | Open end, 26-wire |
| DC operating voltage range | 0 V ... 30 V |
| Nominal operating voltage DC | 24 V |
| Current rating | 3.9 A |
| Surge resistance | 0.8 kV |
| Cable length | 2.5 m |
| Connector cable test conditions | Flexural strength: as per Festo standard |
| Min. cable bending radius | 220 mm |
| Cable diameter | 10.8 mm |
| Cable diameter tolerance | ± 0.2 mm |
| Cable design | 5 x (2 x 0.25 mm²) + 16 x 0.25 mm² |
| Connection cross section | 0.25 mm² |
| Degree of protection | IP20 |
| Ambient temperature | -30 °C ... 80 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 80 °C |
| CE marking (see declaration of conformity) | As per EU RoHS directive |
| Note on materials | RoHS-compliant |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Material of cable sheath | PVC |
| Color cable sheath | Gray |
| Material of pin contacts | Copper alloy, tin-platedNickel-plated and gold-plated |
| Insulating sheath material | PVC |
| Mounting position | Any |
