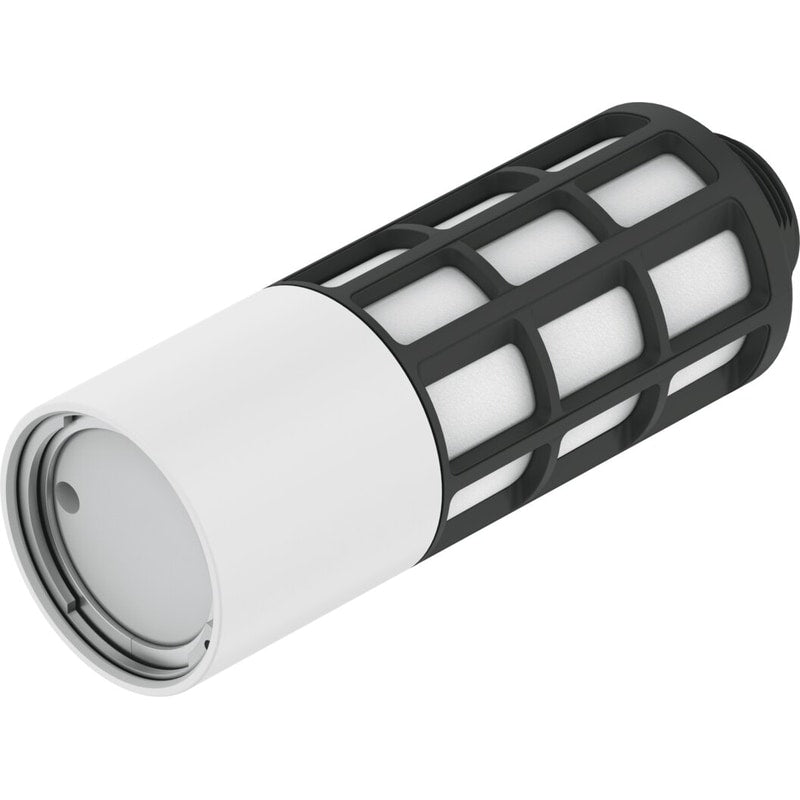

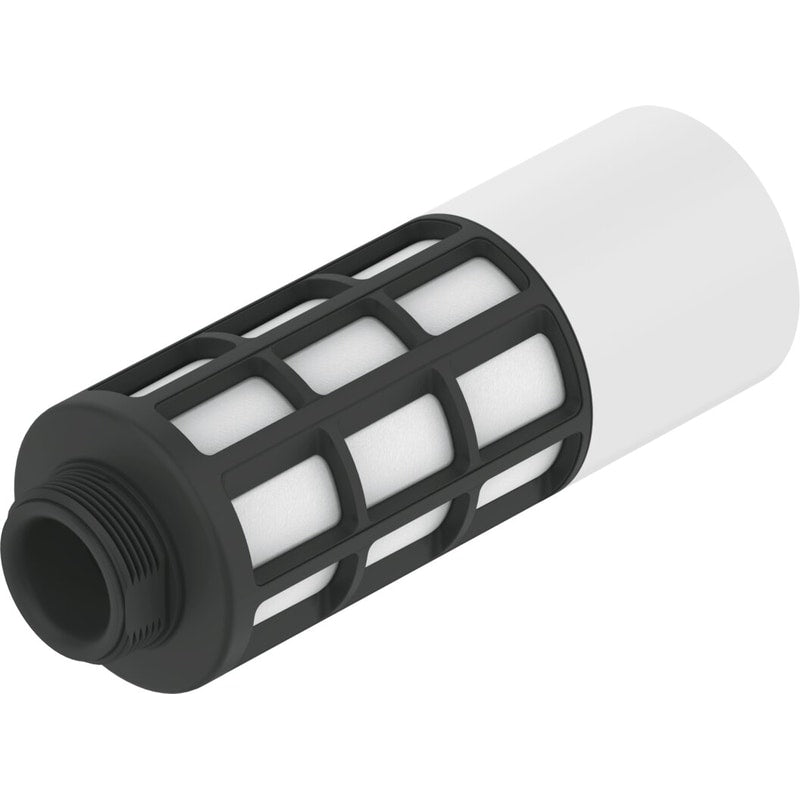

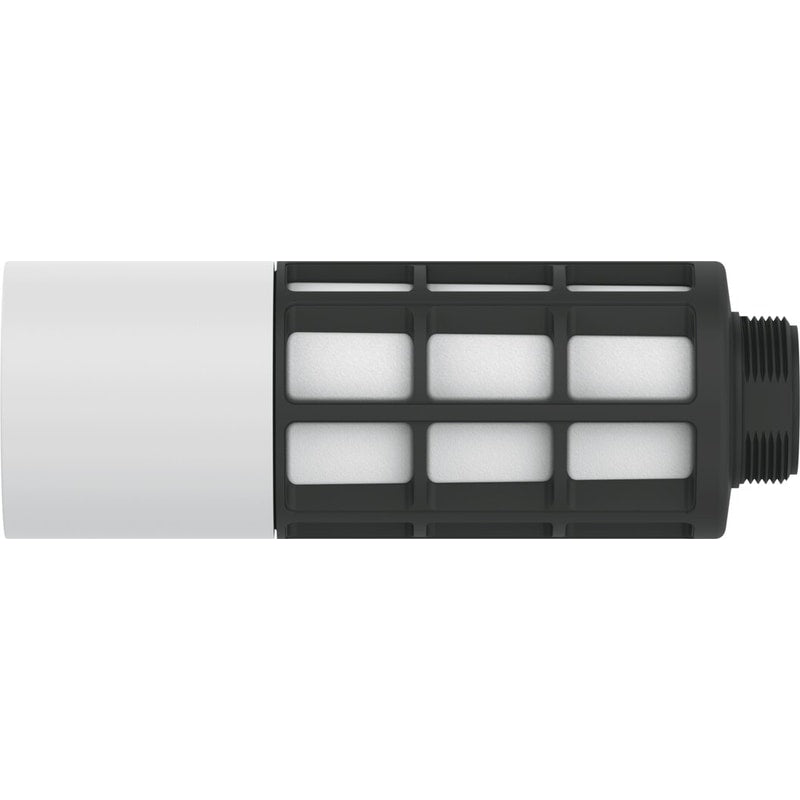

Pneumatic muffler
UOS-1
552252
GTIN 4052568095161
Vendor Festo
- Cushioning insert material
- PE
- Pneumatic connection
- G1
- Operating pressure
- 0 bar - 10 bar
- Structural design
- Pneumatic muffler, open
Regular price
$60.48
Unit price
UOS-1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
UOS-1
Regular price
$60.48
Unit price
UOS-1 is backordered and will ship as soon as it is back in stock.
silencer UOS-1 For use in connection with MS6-SV pressure build-up exhaust valve (safety valve) Type of seal on screw-in stud=Without seal, Assembly position=Any, Design structure=Open silencer, Operating pressure=0 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [-:-:-]
| Type of seal on screw-in stud | Without seal |
|---|---|
| Assembly position | Any |
| Design structure | Open silencer |
| Operating pressure | 0 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [-:-:-] |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-10 ... 50 °C |
| Product weight | 200 g |
| Mounting type | with external (male) thread |
| Pneumatic connection | G1 |
| Material of silencer insert | PE |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Material housing | POM |
