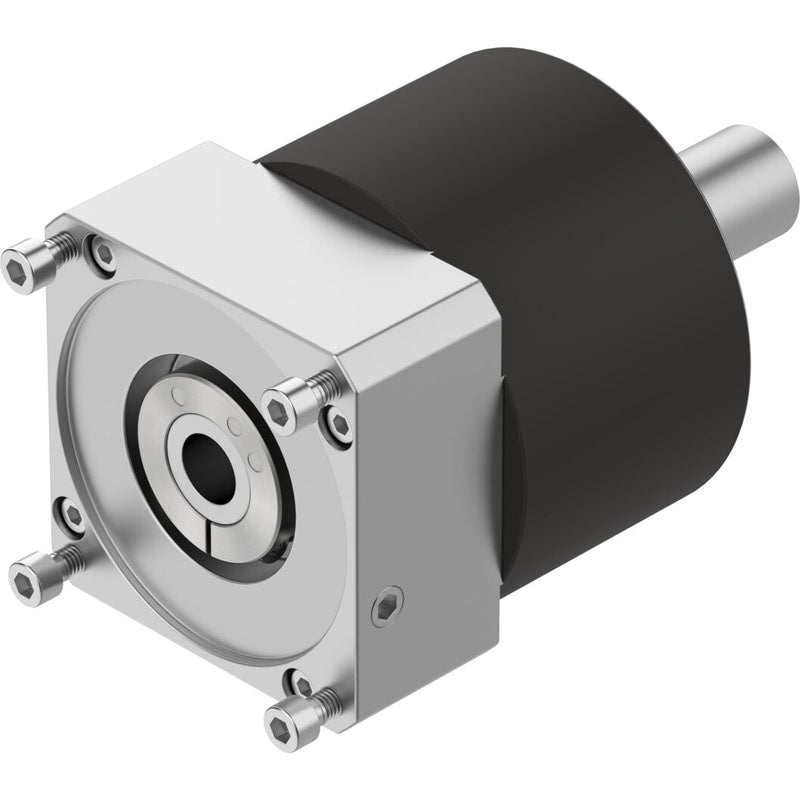

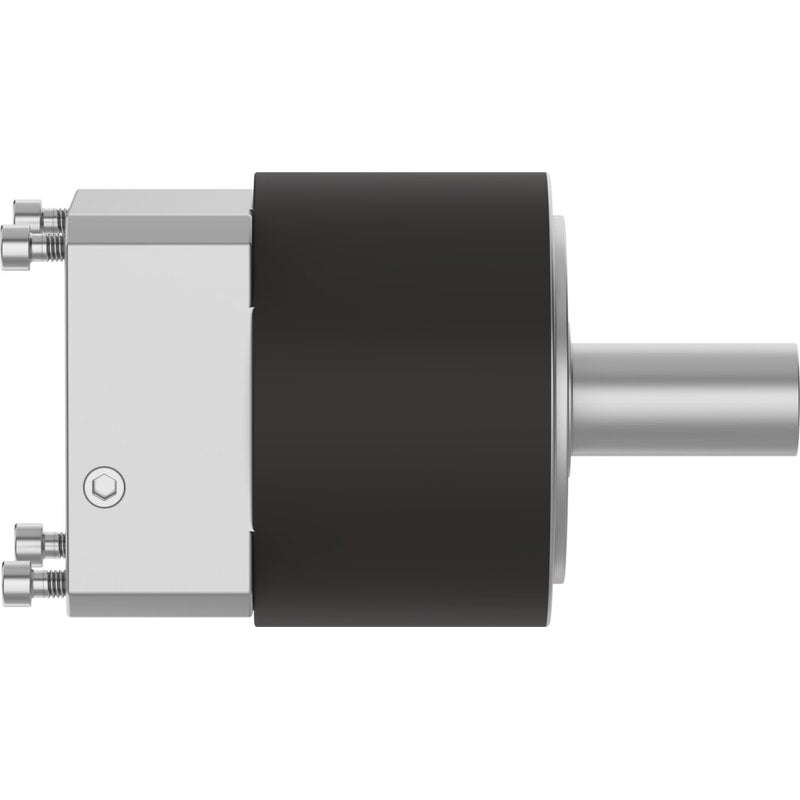

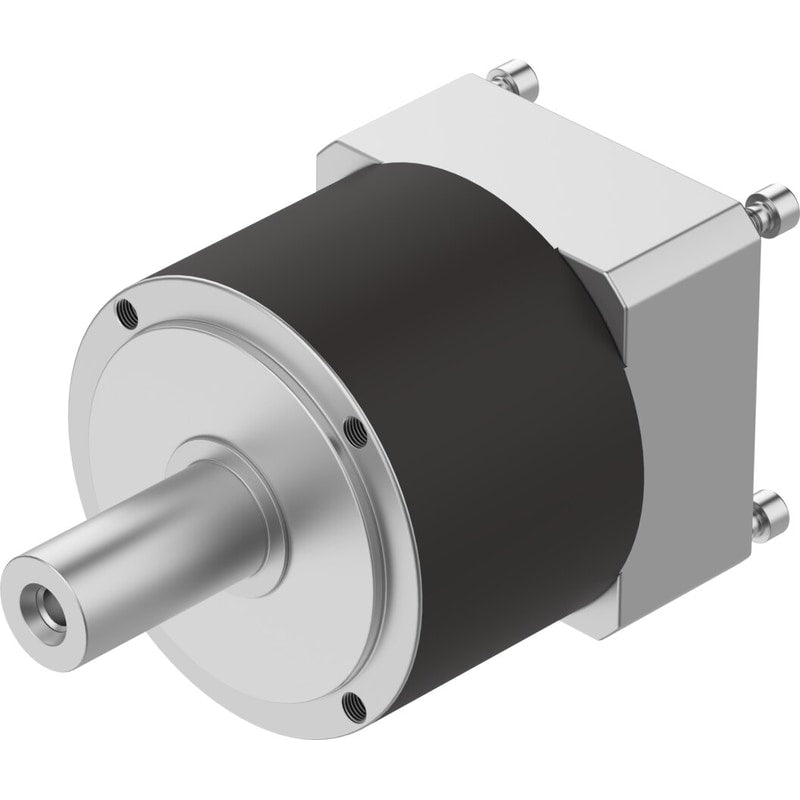

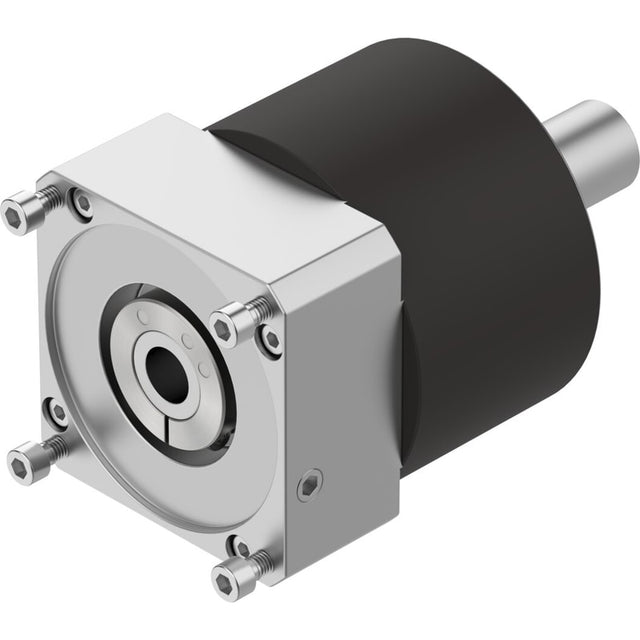

Gearbox
EMGA-160-P-G3-SAS-140
552200
GTIN 4052568194123
Vendor Festo
- Continuous output torque
- 400 Nm
- Max. actuator speed
- 6500 1/min
- Torsional rigidity
- 38 Nm/arcmin
- Gear ratio
- 3:1
- Gearbox type
- Planetary gear
Regular price
$3,434.34
Unit price
EMGA-160-P-G3-SAS-140 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EMGA-160-P-G3-SAS-140
Regular price
$3,434.34
Unit price
EMGA-160-P-G3-SAS-140 is backordered and will ship as soon as it is back in stock.
| Gearbox flange size | 160 mm |
|---|---|
| Motor flange size | 140 mm |
| Torsional backlash | 0.1 deg |
| Type code | EMGA |
| Gearbox type | Planetary gear |
| Gear ratio | 0.125694444444444 |
| Max. actuator speed | 6500 1/min |
| Gearbox operating temperature | -25 °C ... 90 °C |
| Degree of protection | IP54 |
| Continuous output torque | 400 Nm |
| Mass moment of inertia, gearbox | 12.14 kgcm² |
| Max. output torque | 640 Nm |
| Max. efficiency | 0.98 |
| Torsional rigidity | 38 Nm/arcmin |
| Product weight | 18000 g |
| Gearbox interface, output shaft | 160G |
| Gearbox interface, actuator | 140A |
| Note on materials | RoHS-compliant |
