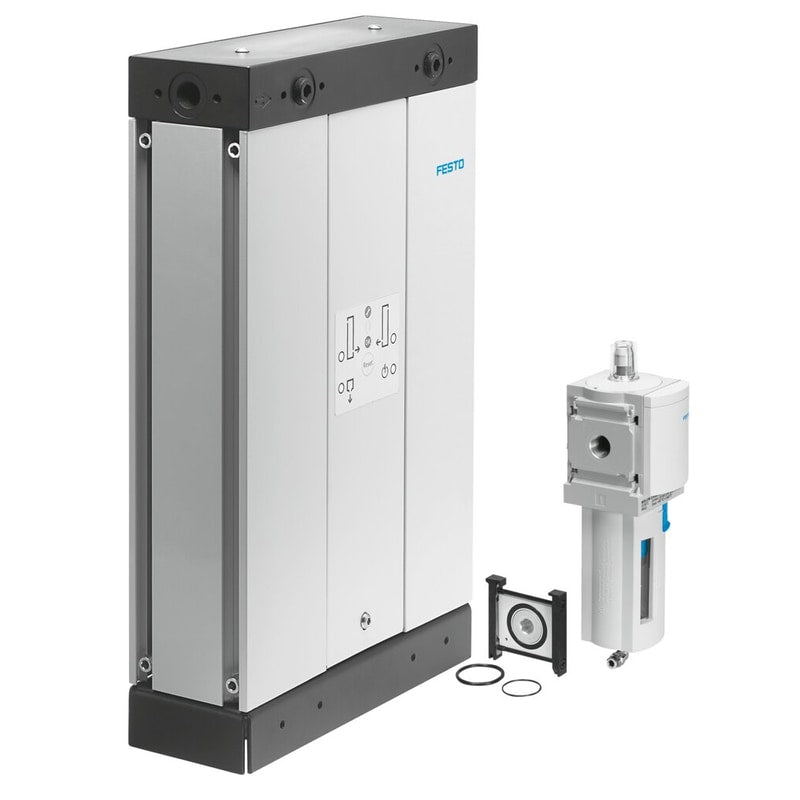

Desiccant air dryer
PDAD-09-G3/8
552170
GTIN 4052568193928
Vendor Festo
- Pneumatic connection 1
- G3/8
- Structural design
- Cold-regenerating adsorption dryer
- Inlet pressure 1
- 4 bar - 16 bar
- Pressure dew point
- -40 °C
Regular price
$4,579.69
Unit price
PDAD-09-G3/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PDAD-09-G3/8
Regular price
$4,579.69
Unit price
PDAD-09-G3/8 is backordered and will ship as soon as it is back in stock.
adsorption dryer PDAD-09-G3/8 For dry and clean compressed air. Assembly position=(* Vertical, * Horizontal), Design structure=Cold-regeneratable adsorption dryer, Inlet pressure 1=4 - 16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [6:4:4], Note on operating and pilot medium=Lubricated operation not possible
| Assembly position | VerticalHorizontal |
|---|---|
| Design structure | Cold-regeneratable adsorption dryer |
| Inlet pressure 1 | 4 ... 16 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [6:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| CE mark (see declaration of conformity) | to EU directive pressure devicesto EU directive for EMCto EU directive low-voltage devices |
| Pressure dew point | '-40 °C |
| Pressure dew point for reduced rate of flow | '-70 °C |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Storage temperature | '-20 ... 60 °C |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [2:1:2] at -70°CCompressed air to ISO 8573-1:2010 [2:2:2] at -40°C |
| Medium temperature | 2 ... 50 °C |
| Ambient temperature | 5 ... 50 °C |
