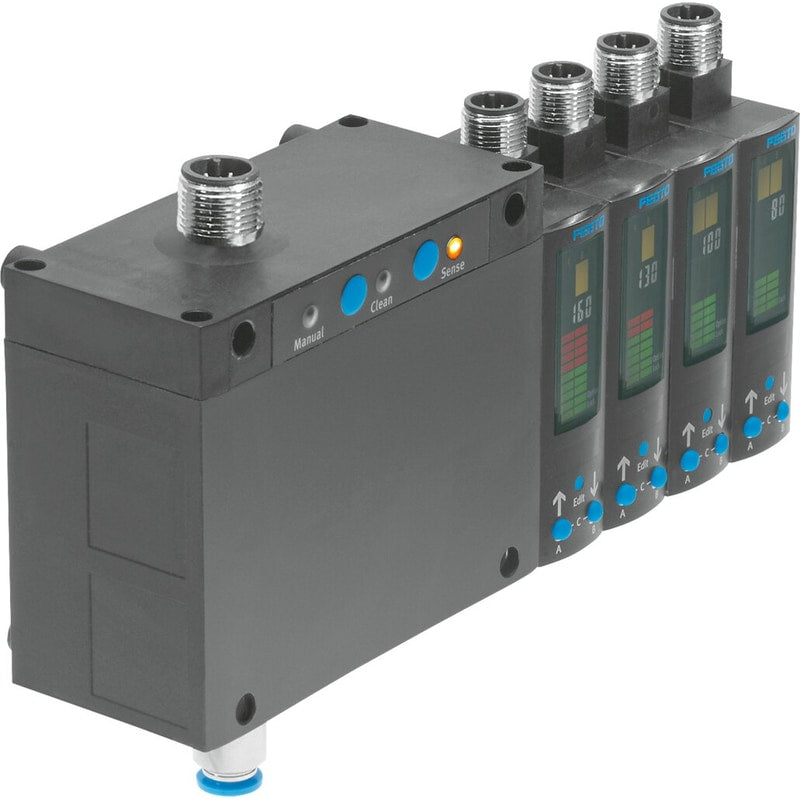

Air gap sensor
SOPA-CM4H-R1-HQ6-2N-M12
552137
GTIN 4052568193737
Vendor Festo
- Sensing range
- 20 µm - 200 µm
- Operating pressure
- 4 bar - 7 bar
- Display type
- Illuminated LCD, multi-color
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Regular price
$2,361.23
Unit price
SOPA-CM4H-R1-HQ6-2N-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SOPA-CM4H-R1-HQ6-2N-M12
Regular price
$2,361.23
Unit price
SOPA-CM4H-R1-HQ6-2N-M12 is backordered and will ship as soon as it is back in stock.
air gap sensor SOPA-CM4H-R1-HQ6-2N-M12 For contactless distance sensing. Authorisation=(* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Free of copper and PTFE, * Conforms to RoHS), Measuring principle=pneumatic, Sensing range=20 - 200 µm
| Authorisation | RCM Markc UL us - Recognized (OL) |
|---|---|
| CE mark (see declaration of conformity) | to EU directive for EMCin accordance with EU RoHS directive |
| KC mark | KC-EMV |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Measuring principle | pneumatic |
| Sensing range | 20 ... 200 µm |
| Operating pressure | 4 ... 7 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Ambient temperature | 0 ... 50 °C |
| Repetition accuracy of switching point | ±2.5 µm sensing range 30 µm to 150 µm±5 µm sensing range 20 to 200µm |
| Max. output current | 100 mA |
| Short circuit strength | Pulsing |
