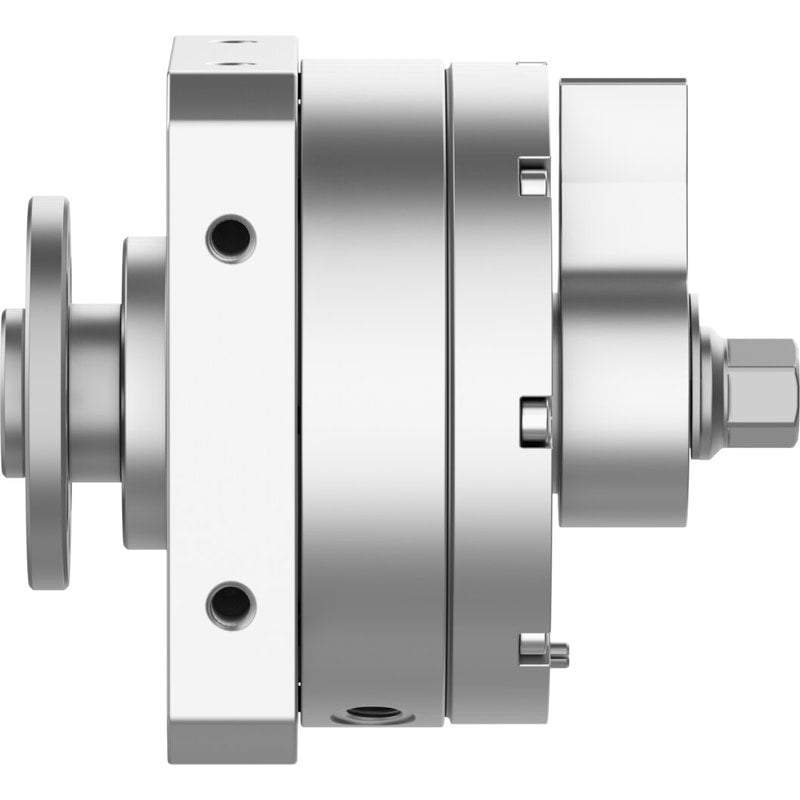

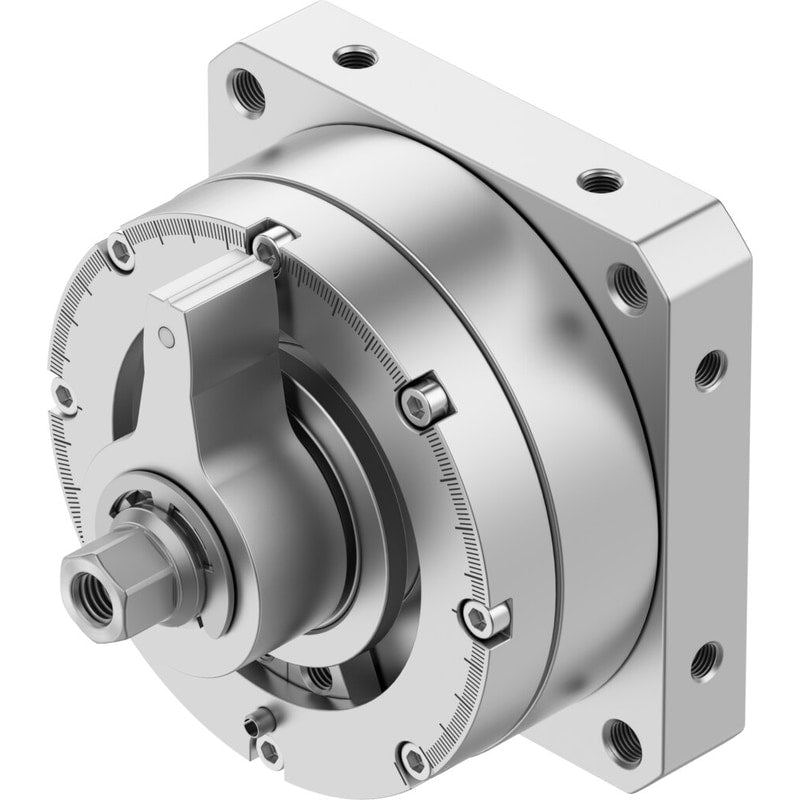

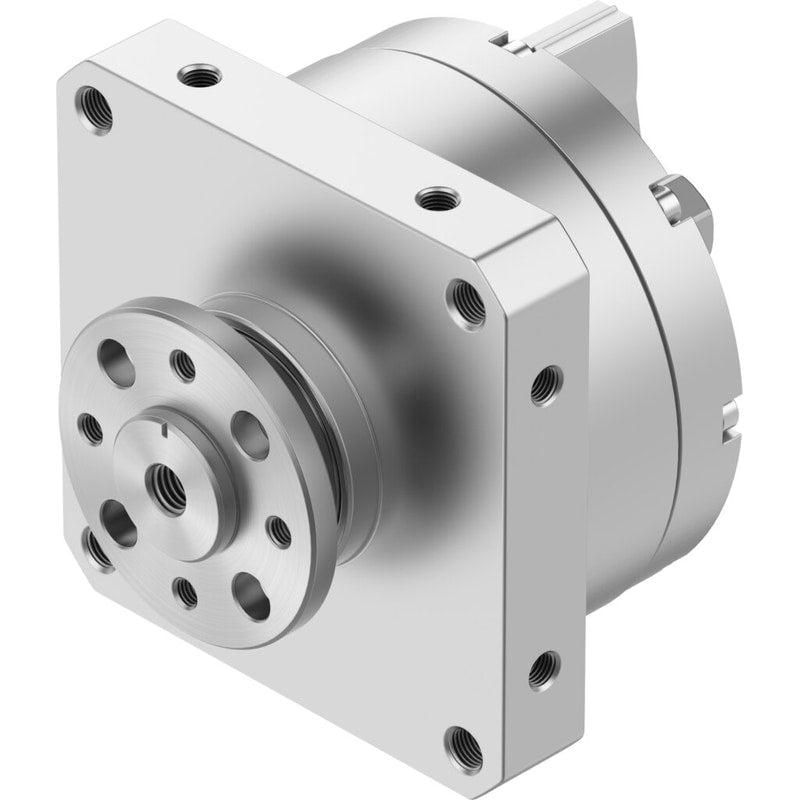

Rotary actuator
DSM-63-270-FW-A-B
552084
GTIN 4052568193492
Vendor Festo
- Size
- 63
- Theoretical torque at 6 bar
- 40 Nm
- Swivel angle
- 0 deg - 270 deg
- Position sensing
- None
Regular price
$1,204.63
Unit price
DSM-63-270-FW-A-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSM-63-270-FW-A-B
Regular price
$1,204.63
Unit price
DSM-63-270-FW-A-B is backordered and will ship as soon as it is back in stock.
semi-rotary drive DSM-63-270-FW-A-B with flanged shaft and position sensing Size=63, Swivel angle=0 - 270 deg, Assembly position=Any, Mode of operation=double-acting, Design structure=Rotary vane
| Size | 63 |
|---|---|
| Swivel angle | 0 ... 270 deg |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | Rotary vane |
| Position detection | For proximity sensor |
| Operating pressure | 1.5 ... 10 bar |
| Max. swivel frequency at 6 bar | 1.6 Hz |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Max. axial force | 500 N |
| Max. radial force | 500 N |
