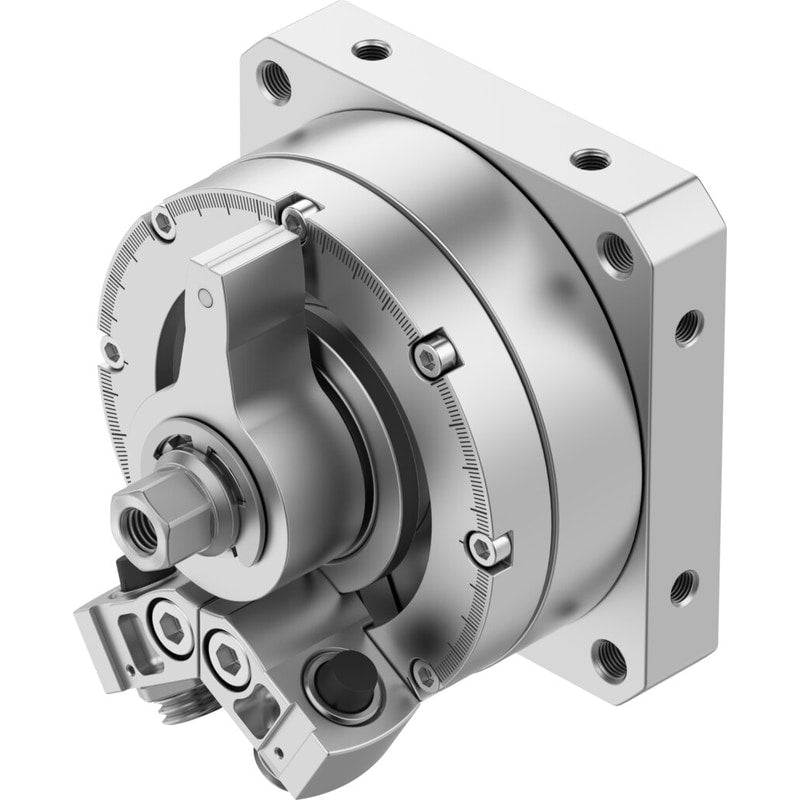

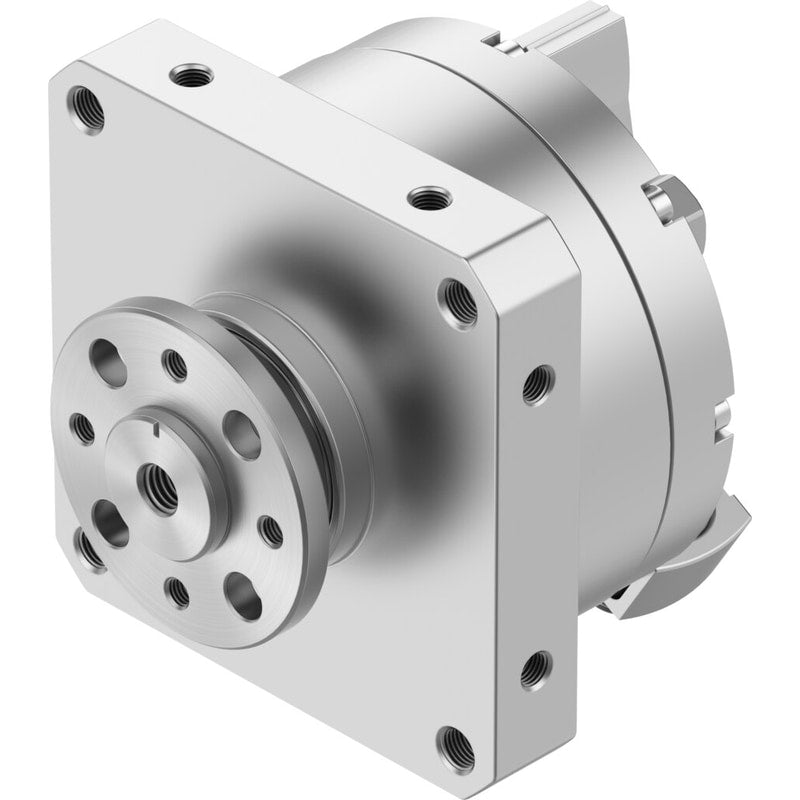

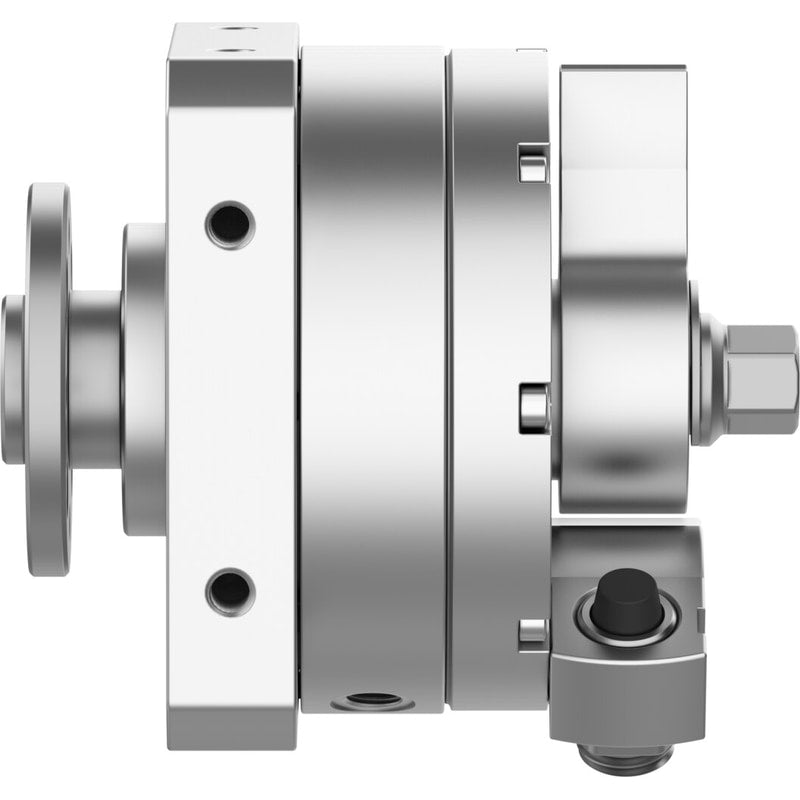

Rotary actuator
DSM-63-270-P-FW-A-B
552080
GTIN 4052568193454
Vendor Festo
- Size
- 63
- Theoretical torque at 6 bar
- 40 Nm
- Swivel angle
- 0 deg - 270 deg
- Position sensing
- For proximity sensor
Regular price
$1,442.48
Unit price
DSM-63-270-P-FW-A-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSM-63-270-P-FW-A-B
Regular price
$1,442.48
Unit price
DSM-63-270-P-FW-A-B is backordered and will ship as soon as it is back in stock.
semi-rotary drive DSM-63-270-P-FW-A-B with flanged shaft, fixed stop and position sensing Size=63, Cushioning angle=2 deg, Rotation angle adjustment range=0 - 270 deg, Swivel angle=0 - 270 deg, Cushioning=P: Flexible cushioning rings/plates at both ends
| Size | 63 |
|---|---|
| Cushioning angle | 2 deg |
| Rotation angle adjustment range | 0 ... 270 deg |
| Swivel angle | 0 ... 270 deg |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Fine adjustment | '-6 deg |
| Mode of operation | double-acting |
| Design structure | Rotary vane |
| Position detection | For proximity sensor |
| Operating pressure | 1.5 ... 10 bar |
| Max. swivel frequency at 6 bar | 1.6 Hz |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
