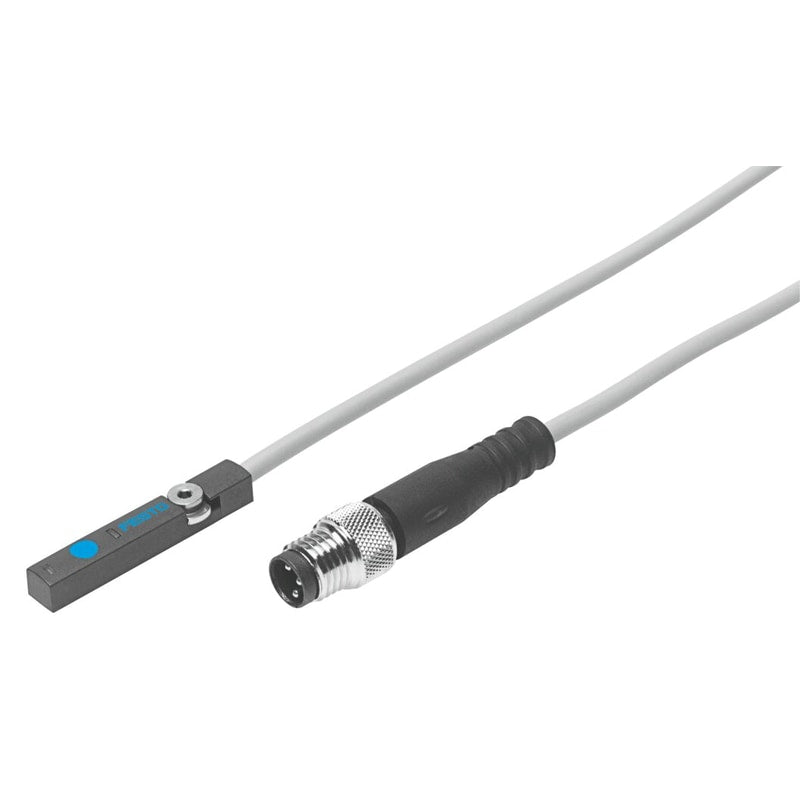

Proximity sensor
SIES-8M-PO-24V-K-10-M8D
551395
GTIN 4052568094928
Vendor Festo
- Size
- Slot 8
- Switching output
- PNP
- Switching element function
- N/C contact
- DC operating voltage range
- 10 V - 30 V
Regular price
$131.42
Unit price
SIES-8M-PO-24V-K-10-M8D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SIES-8M-PO-24V-K-10-M8D
Regular price
$131.42
Unit price
SIES-8M-PO-24V-K-10-M8D is backordered and will ship as soon as it is back in stock.
proximity sensor SIES-8M-PO-24V-K-10-M8D inductive, cable with plug, can be flush-mounted, N/C function Design=for T-slot, Conforms to standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Free of copper and PTFE, * Conforms to RoHS)
| Design | for T-slot |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Authorisation | RCM Markc UL us - Listed (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Nominal switching distance | 1.5 mm |
| Reduction factors | Aluminium = 0.62Stainless steel V2A = 0.95Copper = 0.6Brass = 0.72Steel, St 37 = 1.0 |
| Ambient temperature | '-25 ... 70 °C |
| Repetition accuracy for constant conditions | <= 0.05 mm, approach from the side |
| Switch output | PNP |
| Switching element function | Normally closed contact |
| Max. switching frequency | 4,500 Hz |
| Max. output current | 150 mA |
