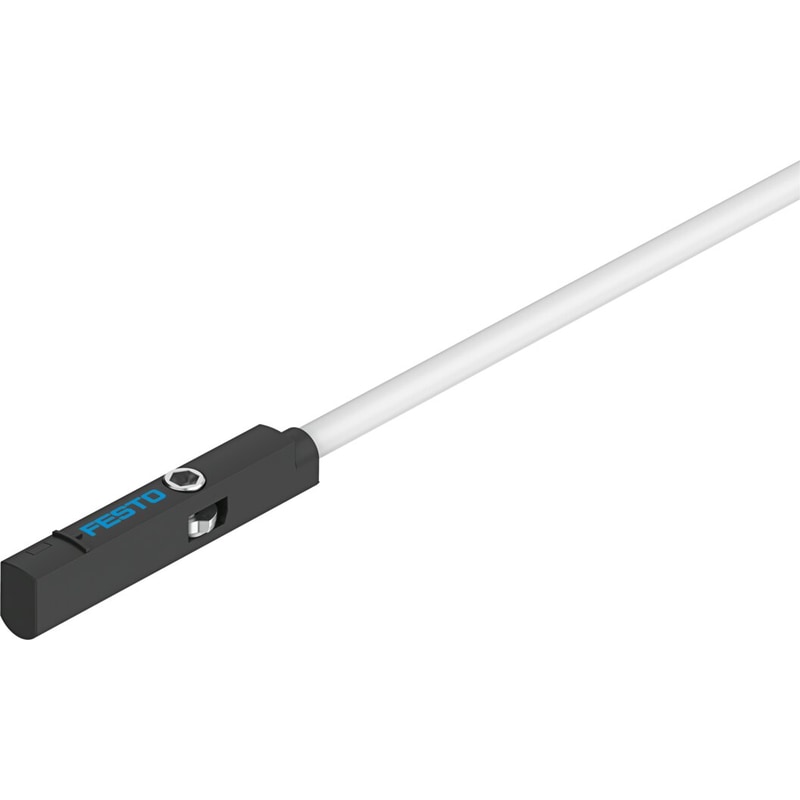

Proximity sensor
SMT-10M-NS-24V-E-0,3-L-M8D
551379
GTIN 4052568094799
Vendor Festo
Regular price
$69.32
Unit price
SMT-10M-NS-24V-E-0,3-L-M8D is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMT-10M-NS-24V-E-0,3-L-M8D
Regular price
$69.32
Unit price
SMT-10M-NS-24V-E-0,3-L-M8D is backordered and will ship as soon as it is back in stock.
proximity sensor SMT-10M-NS-24V-E-0,3-L-M8D Magnetic, contactless, for C-slot. Design=for round slot, Conforms to standard=EN 60947-5-2, Authorisation=RCM Mark, CE mark (see declaration of conformity)=to EU directive for EMC, Special characteristics=Oil resistant
| Design | for round slot |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Authorisation | RCM Mark |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| Special characteristics | Oil resistant |
| Materials note | Free of copper and PTFEConforms to RoHSHalogen-free |
| Measured variable | Position |
| Measuring principle | Magnetoresistive |
| Ambient temperature | '-40 ... 70 °C |
| Switch output | NPN |
| Switching element function | Normally open contact |
| Switching output repetition accuracy in ± mm | 0.1 mm |
| Switch-on time | <= 1.3 ms |
