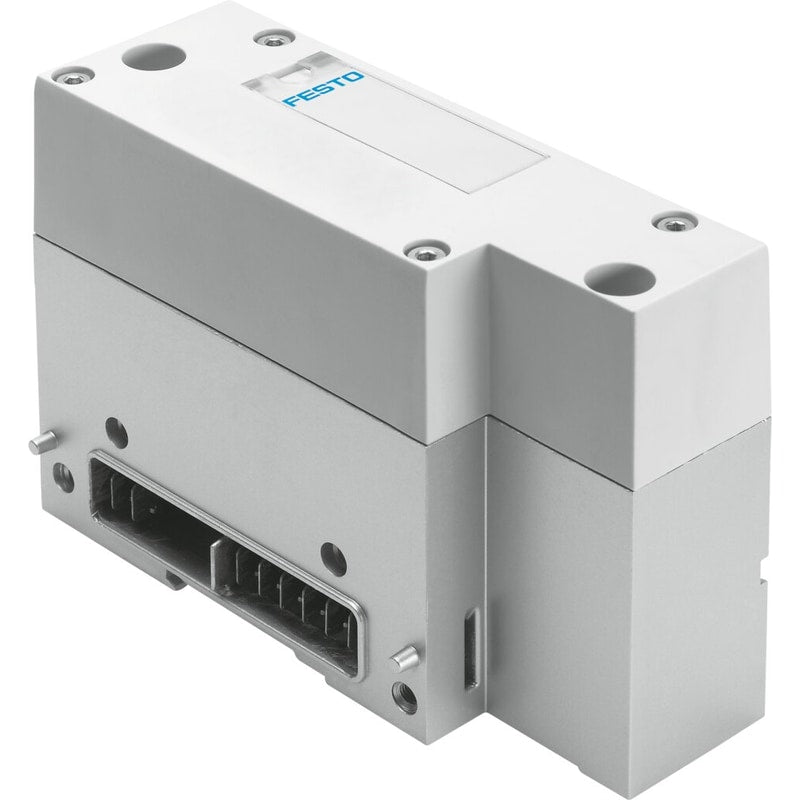

VABA-S6-1-X2

pneumatic interface VABA-S6-1-X2 For valve terminals VTSA and VTSA-F, functions as adapter between the parallel linking in the terminal and the serial linking (concatenation) of CPX. Valve terminal interface=Type 44, VTSA, Diagnosis=- Undervoltage of valves, Max. number of valve positions=(* 16 with bistable valves, * 32 with monostable valves), LED displays=(* - 1 Group diagnosis, * - Channel status on valves), Parameters configuring=(* Failsafe per channel, * Forces per channel, * Idle mode per channel, * Module monitoring)

Valve terminal interface	Type 44, VTSA
Diagnosis	'- Undervoltage of valves
Max. number of valve positions	16 with bistable valves32 with monostable valves
LED displays	'- 1 Group diagnosis- Channel status on valves
Parameters configuring	Failsafe per channelForces per channelIdle mode per channelModule monitoring
Protection (short circuit)	Internal electronic fuse protection per valve output
Operating voltage range DC	21.6 ... 26.4 V
Intrinsic current consumption at operating voltage	Typically 15 mA (power supply for electronics)Typically 50 mA (load voltage supply for valve)
Max. power supply per channel	0,2 A
Max. resultant current per module	0.166666666666667
Nominal operating voltage DC	24 V
Electrical isolation channel – internal bus	Yes, for additional power supply
Corrosion resistance classification CRC	0 - No corrosion stress
